CHIME/FRBPublic data

FRB 20200914B

One-off burst

Event ID
134714552
Arrival, 400 MHz
2020-09-14 03:15:29.363 UTC
Right ascension
281.378°
Declination
38.366°

Loading

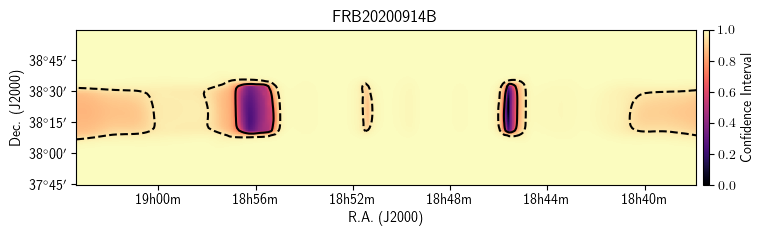

Localization

Loading

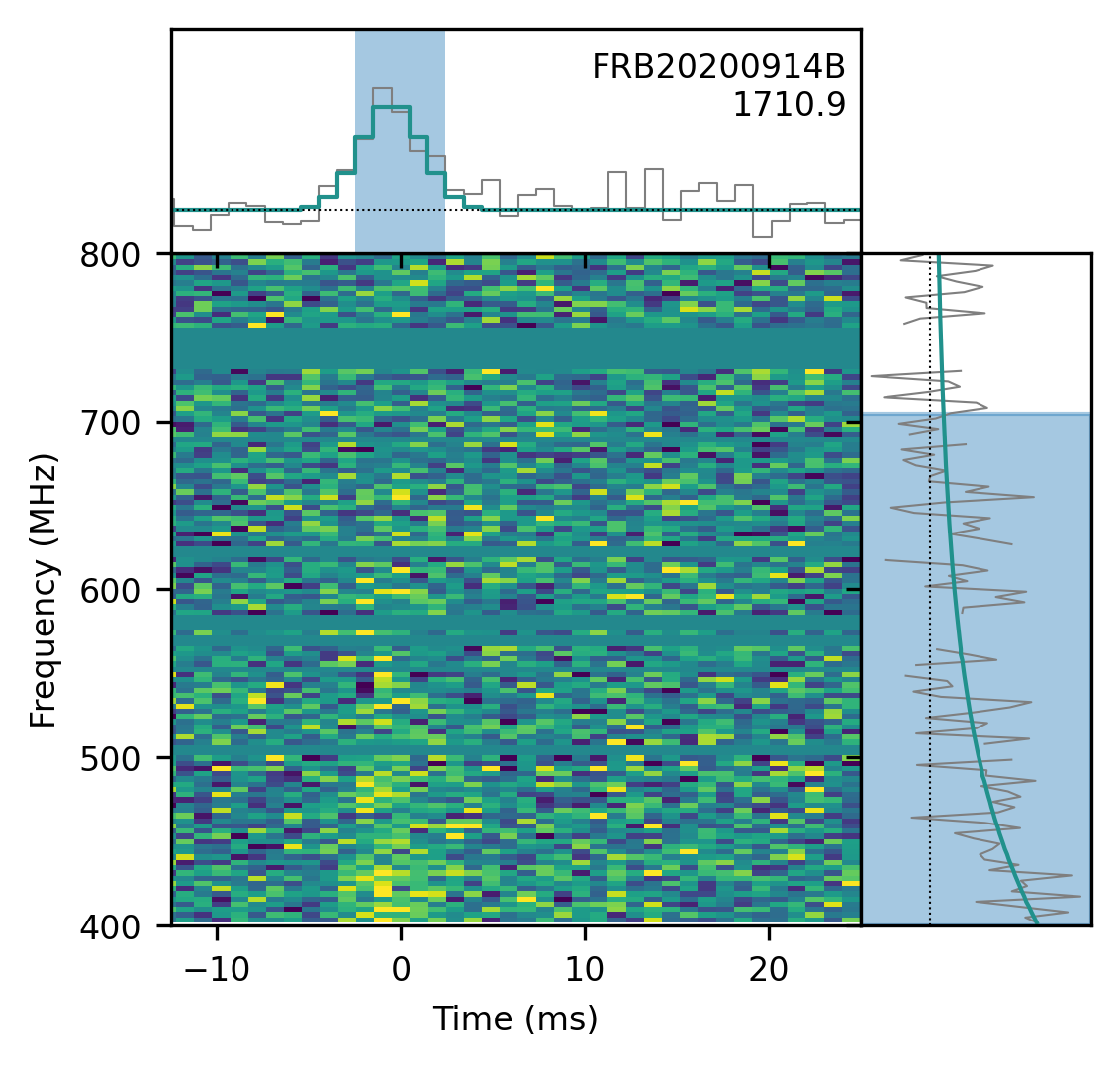

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
281.378± 0.054degrees
dec
38.366± 0.196degrees
gl
67.65degrees
gb
17.52degrees

Detection and dispersion

bonsai_snr
11.8
snr_fitb
14.6
bonsai_dm
1711.3pc cm⁻³
dm_fitb
1710.9002± 0.01978pc cm⁻³
dm_exc_ne2001
1631.2pc cm⁻³
dm_exc_ymw16
1641.4pc cm⁻³

Arrival time

mjd_400
59106.135756516625± 1.40 × 10⁻⁹MJD
mjd_inf
59106.13524347819± 6.10 × 10⁻⁹MJD

Burst shape

bc_width
0.00492s
width_fitb
0.001229± 0.0000604s
scat_time
0.000000s

Flux and spectrum

flux
0.38± 0.15Jy
fluence
2.19± 0.61Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
704.5MHz
sp_idx
-4.43± 1.53
sp_run
0.64± 2.97

Exposure and fluence thresholds

exp_up
107.80± 52.56hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.5Jy ms
low_ft_95
—
up_ft_95
4.1Jy ms

Fit quality

chi_sq
1981857.152
dof
1982064
flag_frac
0.253
