CHIME/FRBPublic data

FRB 20200916B

One-off burst

Event ID
135087078
Arrival, 400 MHz
2020-09-16 11:07:22.377 UTC
Right ascension
42.129°
Declination
32.335°

Loading

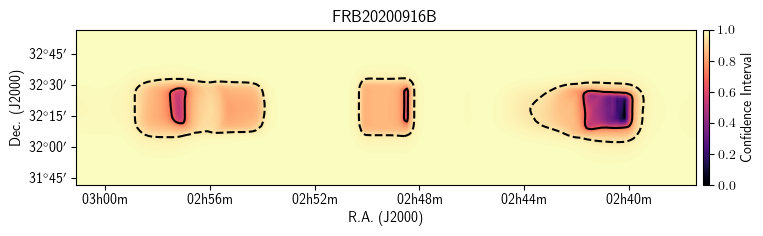

Localization

Loading

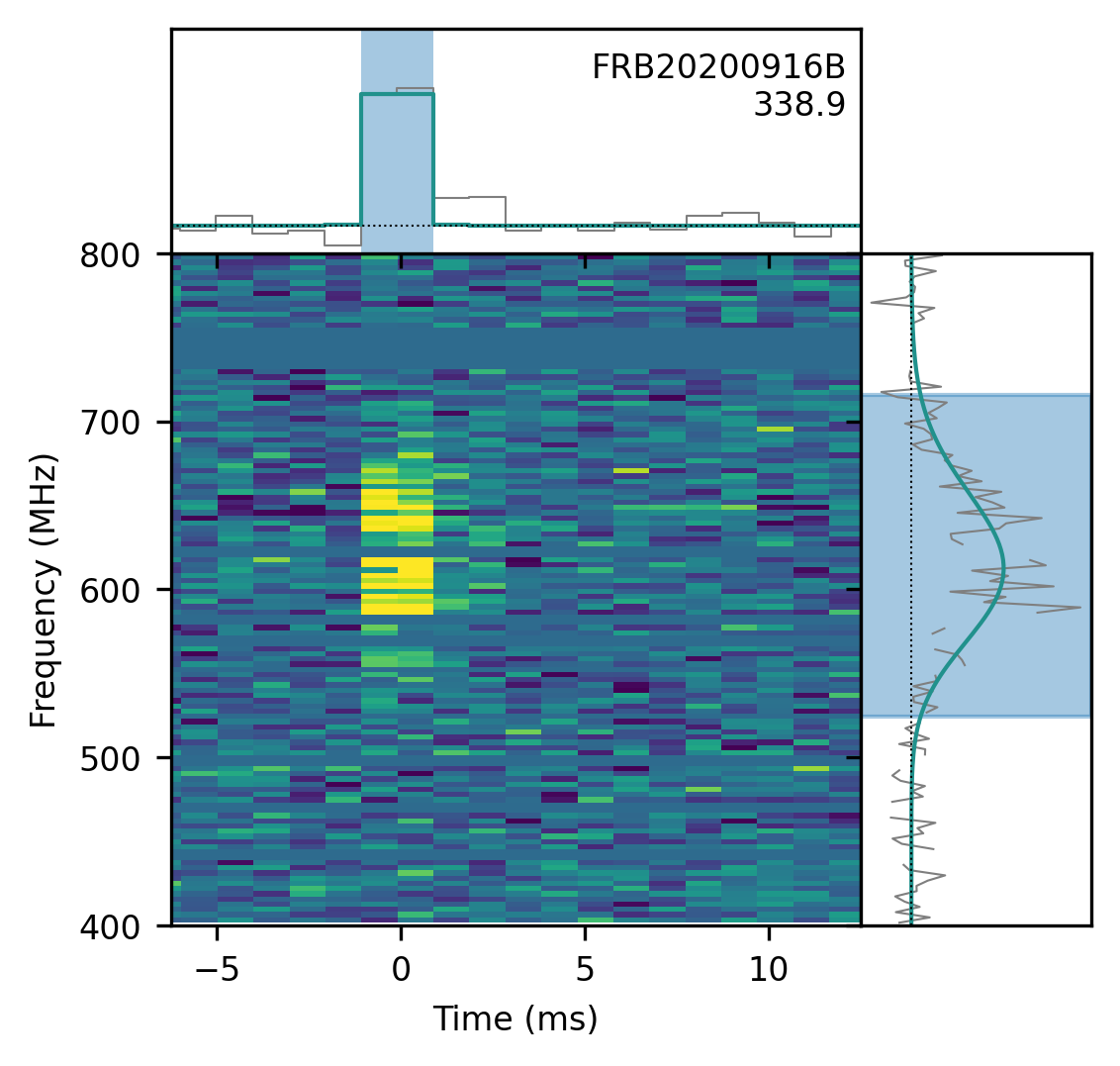

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
42.129± 0.016degrees
dec
32.335± 0.133degrees
gl
149.89degrees
gb
-24.34degrees

Detection and dispersion

bonsai_snr
18.3
snr_fitb
36.1
bonsai_dm
338.1pc cm⁻³
dm_fitb
338.9158± 0.00506pc cm⁻³
dm_exc_ne2001
274.4pc cm⁻³
dm_exc_ymw16
276.4pc cm⁻³

Arrival time

mjd_400
59108.46345344213± 8.75 × 10⁻¹⁰MJD
mjd_inf
59108.46335181327± 1.75 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000254± 0.0000042s
scat_time
0.000000s

Flux and spectrum

flux
1.03± 0.45Jy
fluence
1.92± 0.83Jy ms
peak_freq
612.5MHz
low_freq
524.4MHz
high_freq
715.5MHz
sp_idx
81.10± 5.97
sp_run
-95.26± 6.85

Exposure and fluence thresholds

exp_up
105.52± 35.27hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
0.7Jy ms
low_ft_95
—
up_ft_95
1.4Jy ms

Fit quality

chi_sq
1878871.321
dof
1880166
flag_frac
0.292
