CHIME/FRBPublic data

FRB 20200917B

One-off burst

Event ID
135271026
Arrival, 400 MHz
2020-09-17 06:52:40.200 UTC
Right ascension
340.806°
Declination
61.699°

Loading

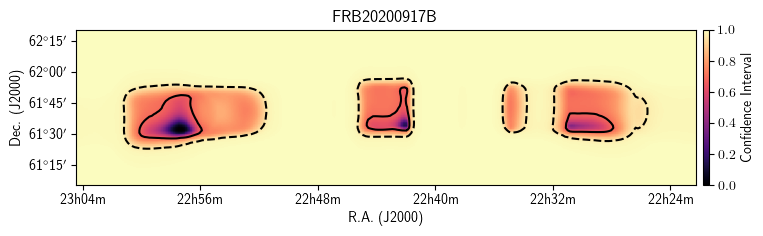

Localization

Loading

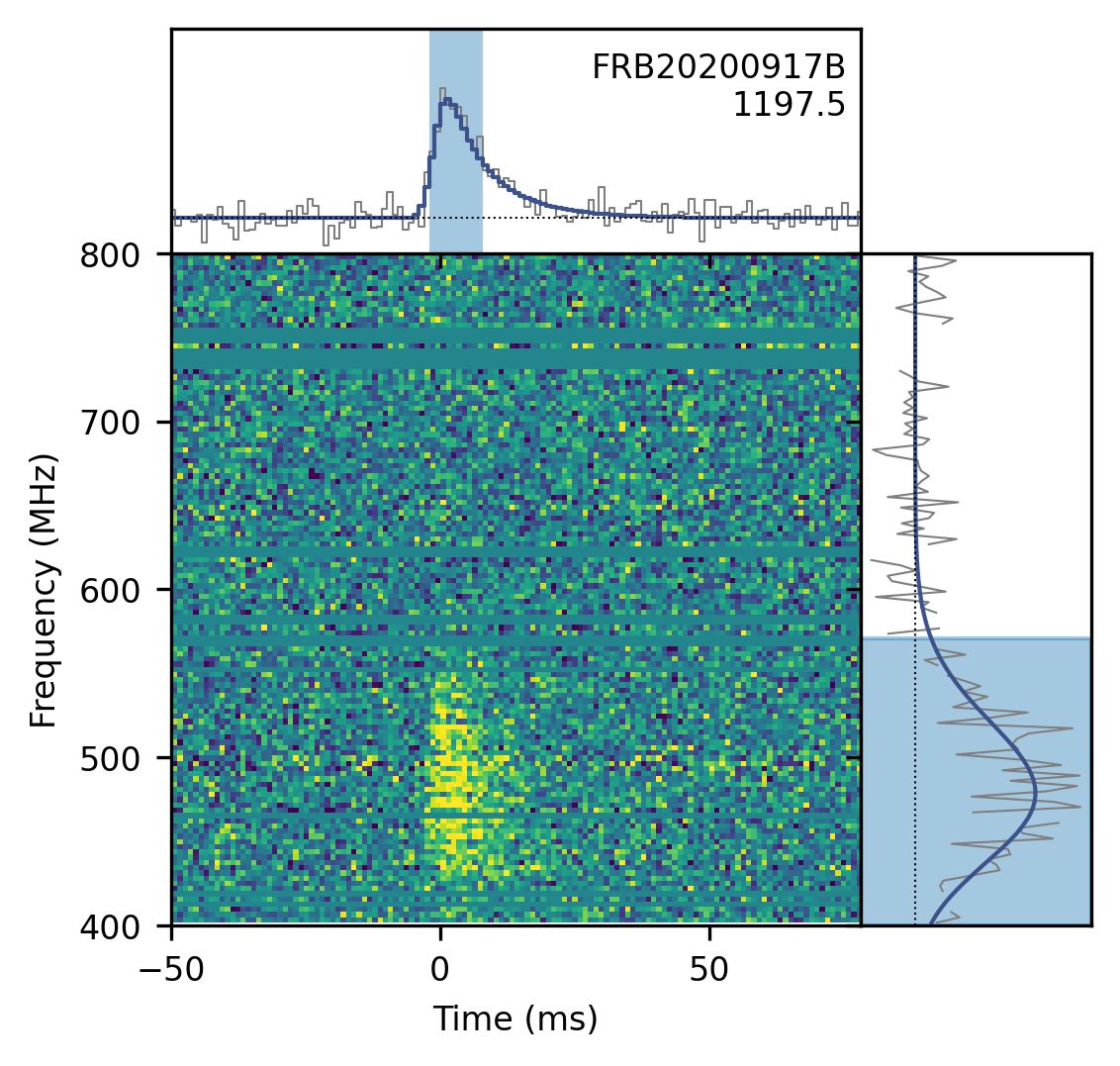

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
340.806± 0.172degrees
dec
61.699± 0.174degrees
gl
108.34degrees
gb
2.51degrees

Detection and dispersion

bonsai_snr
22.5
snr_fitb
36.2
bonsai_dm
1193.7pc cm⁻³
dm_fitb
1197.4707± 0.05829pc cm⁻³
dm_exc_ne2001
937.5pc cm⁻³
dm_exc_ymw16
796.1pc cm⁻³

Arrival time

mjd_400
59109.28657638471± 6.21 × 10⁻⁹MJD
mjd_inf
59109.28621730563± 1.85 × 10⁻⁸MJD

Burst shape

bc_width
0.00983s
width_fitb
0.001501± 0.0001808s
scat_time
0.015779± 0.0011258s

Flux and spectrum

flux
0.62± 0.21Jy
fluence
5.70± 1.06Jy ms
peak_freq
470.8MHz
low_freq
400.2MHz
high_freq
570.8MHz
sp_idx
20.14± 1.84
sp_run
-62.01± 4.91

Exposure and fluence thresholds

exp_up
161.96± 92.53hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.1Jy ms
low_ft_95
—
up_ft_95
3.4Jy ms

Fit quality

chi_sq
1968611.168
dof
1969913
flag_frac
0.258
