CHIME/FRBPublic data
Repeater
FRB20180916B
Event ID
135577833
Arrival, 400 MHz
2020-09-19 09:45:15.621 UTC
Right ascension
25.026°
Declination
65.723°

Loading

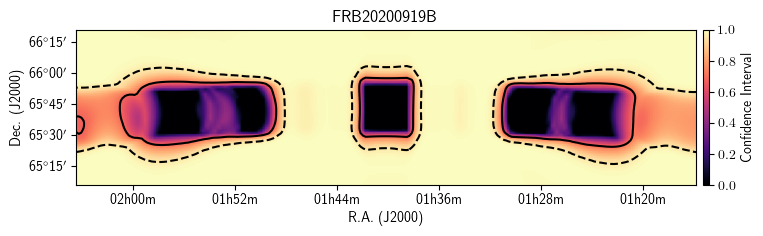

Localization

Loading

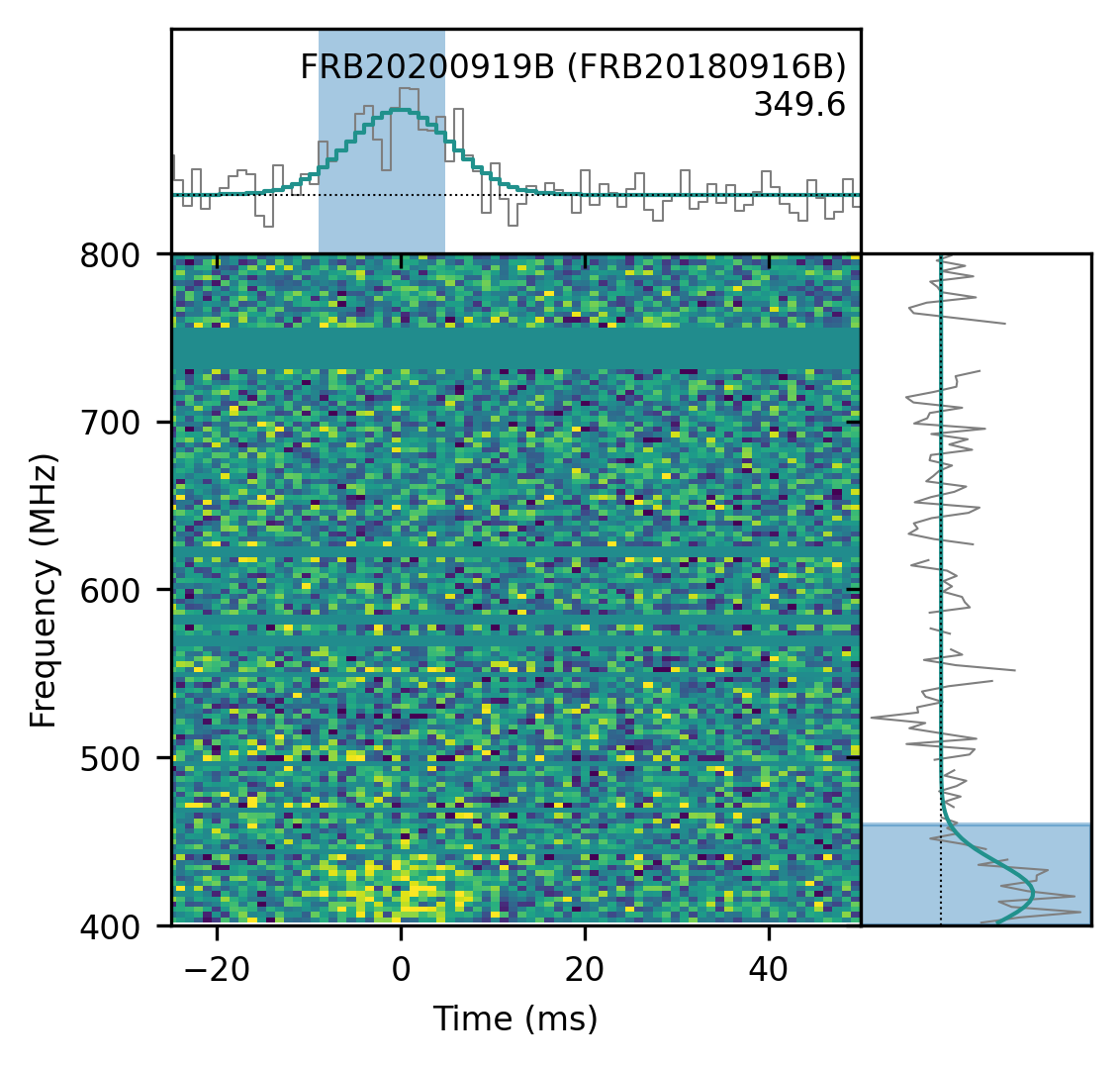

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
25.026± 0.220degrees
dec
65.723± 0.239degrees
gl
127.91degrees
gb
3.32degrees

Detection and dispersion

bonsai_snr
10.9
snr_fitb
16.7
bonsai_dm
355.8pc cm⁻³
dm_fitb
349.6214± 0.37524pc cm⁻³
dm_exc_ne2001
148.3pc cm⁻³
dm_exc_ymw16
22.9pc cm⁻³

Arrival time

mjd_400
59111.40643079568± 1.14 × 10⁻⁸MJD
mjd_inf
59111.40632595658± 1.13 × 10⁻⁷MJD

Burst shape

bc_width
0.01376s
width_fitb
0.005571± 0.0004105s
scat_time
0.000000s

Flux and spectrum

flux
0.41± 0.20Jy
fluence
4.41± 1.60Jy ms
peak_freq
419.2MHz
low_freq
400.2MHz
high_freq
460.0MHz
sp_idx
24.75± 7.07
sp_run
-266.77± 60.96

Exposure and fluence thresholds

exp_up
185.19± 107.79hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
4.5Jy ms
low_ft_95
0.0Jy ms
up_ft_95
10.0Jy ms

Fit quality

chi_sq
1934000.337
dof
1934274
flag_frac
0.271
