FRB 20200920B

One-off burst

Event ID
135754347
Arrival, 400 MHz
2020-09-20 16:37:48.323 UTC
Right ascension
128.515°
Declination
62.684°

Loading

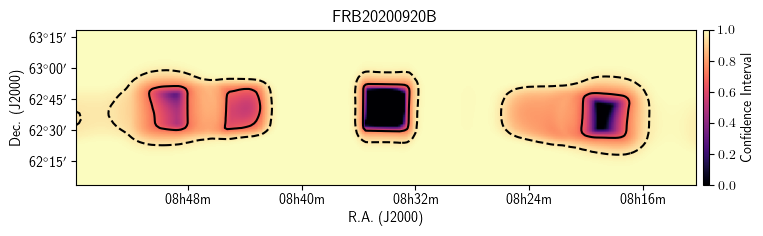

Localization

Loading

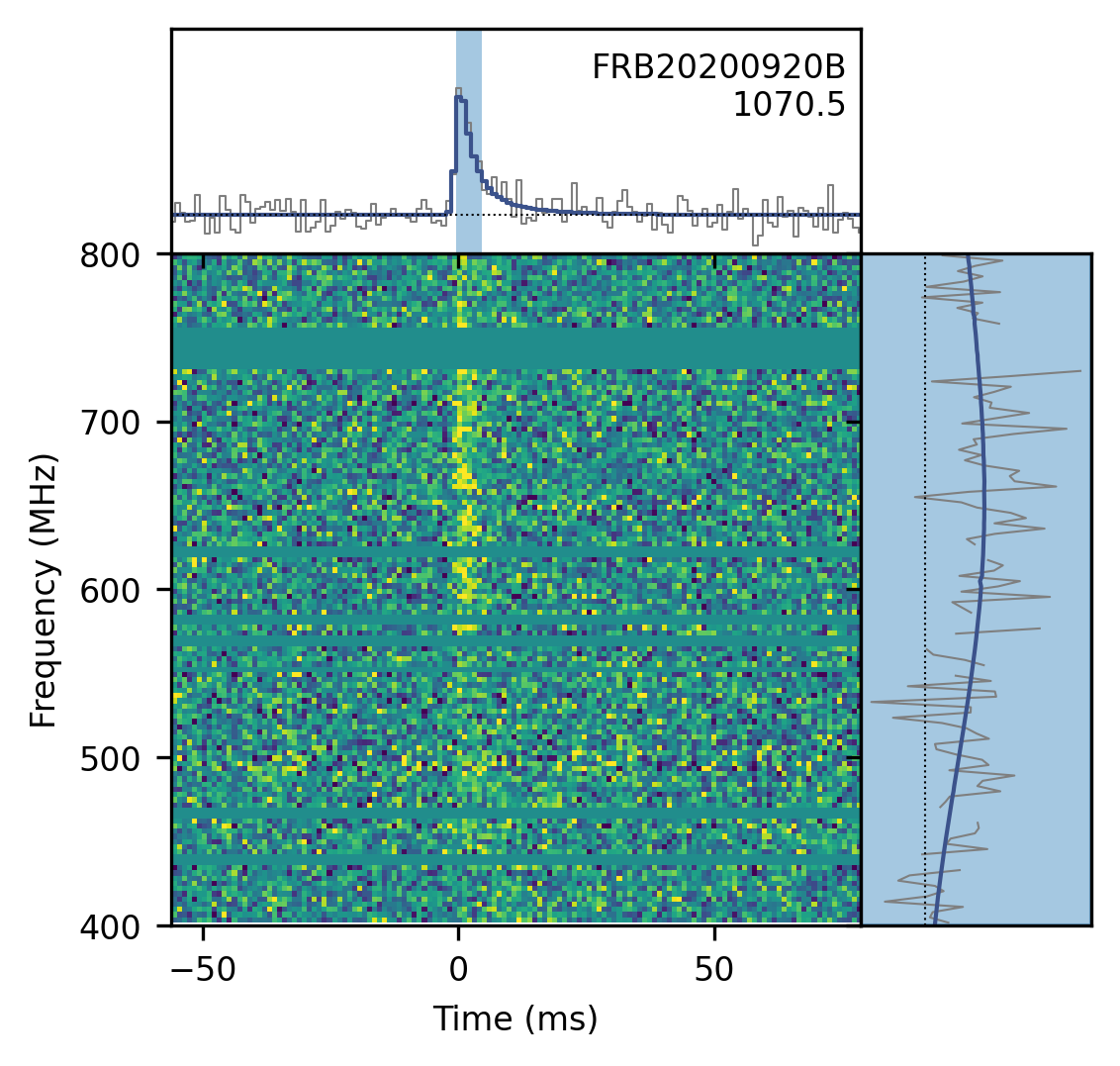

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
128.515± 0.187degrees
dec
62.684± 0.191degrees
gl
153.51degrees
gb
35.59degrees

Detection and dispersion

bonsai_snr
19.2
snr_fitb
22.9
bonsai_dm
1069.2pc cm⁻³
dm_fitb
1070.4759± 0.02312pc cm⁻³
dm_exc_ne2001
1023.5pc cm⁻³
dm_exc_ymw16
1030.6pc cm⁻³

Arrival time

mjd_400
59112.692920410744± 4.54 × 10⁻⁹MJD
mjd_inf
59112.6925994129± 8.28 × 10⁻⁹MJD

Burst shape

bc_width
0.00492s
width_fitb
0.000492± 0.0000935s
scat_time
0.018638± 0.0020530s

Flux and spectrum

flux
0.71± 0.31Jy
fluence
3.83± 1.30Jy ms
peak_freq
570.2MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
3.05± 1.47
sp_run
-4.30± 1.65

Exposure and fluence thresholds

exp_up
172.70± 88.05hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.6Jy ms
low_ft_95
—
up_ft_95
4.7Jy ms

Fit quality

chi_sq
1907837.619
dof
1908353
flag_frac
0.281
