FRB 20200921A

One-off burst

Event ID
135866445
Arrival, 400 MHz
2020-09-21 22:31:23.707 UTC
Right ascension
218.060°
Declination
48.235°

Loading

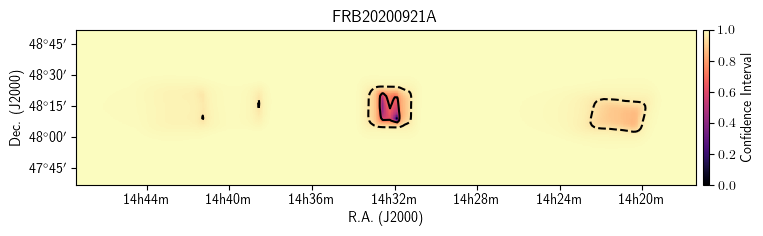

Localization

Loading

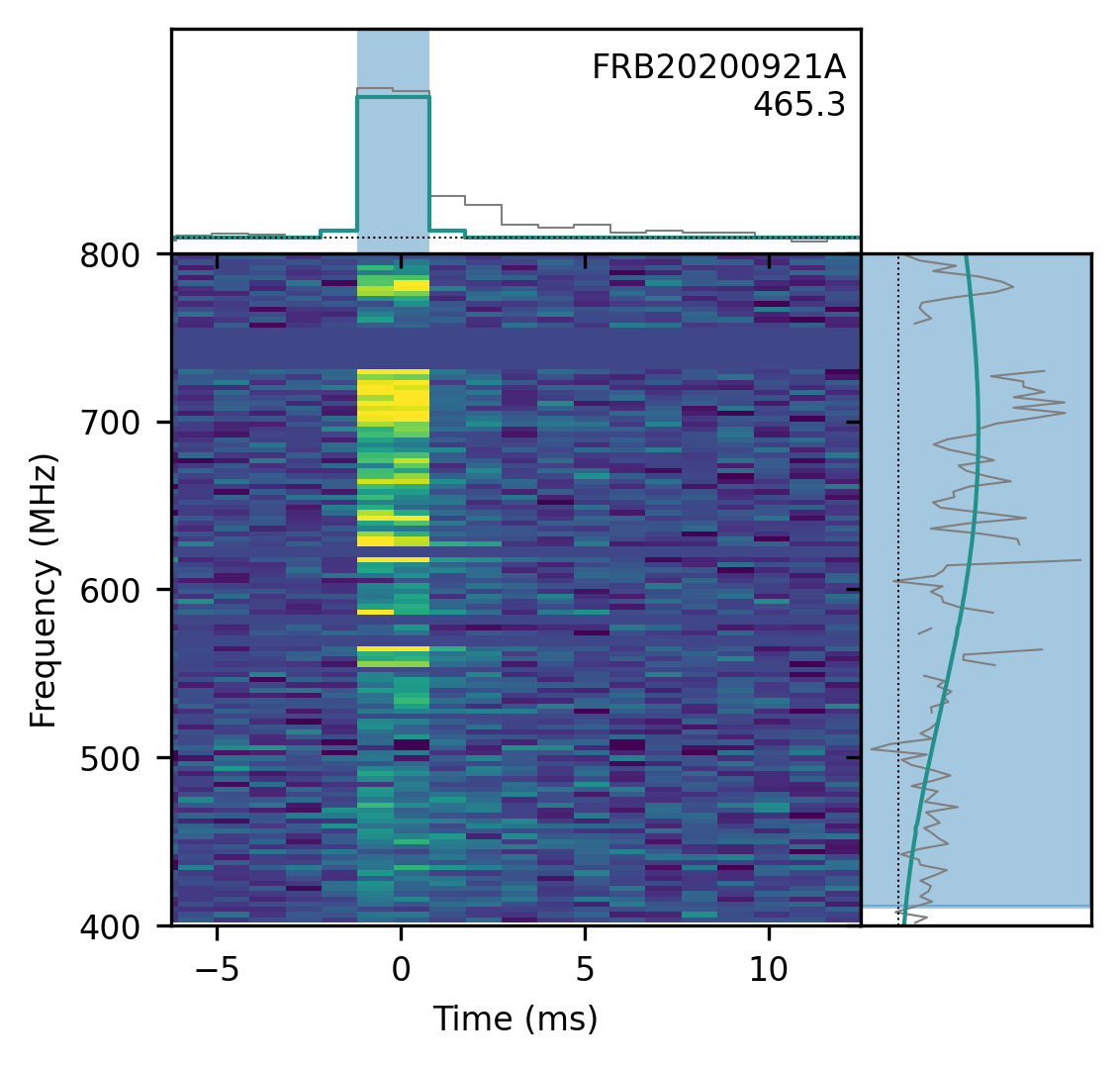

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
218.060± 0.080degrees
dec
48.235± 0.118degrees
gl
86.84degrees
gb
61.22degrees

Detection and dispersion

bonsai_snr
50.6
snr_fitb
68.0
bonsai_dm
464.2pc cm⁻³
dm_fitb
465.2700± 0.00294pc cm⁻³
dm_exc_ne2001
434.5pc cm⁻³
dm_exc_ymw16
442.4pc cm⁻³

Arrival time

mjd_400
59113.93846883316± 5.71 × 10⁻¹⁰MJD
mjd_inf
59113.938329315155± 1.05 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000392± 0.0000056s
scat_time
0.000000s

Flux and spectrum

flux
3.27± 0.96Jy
fluence
7.10± 1.97Jy ms
peak_freq
693.1MHz
low_freq
411.3MHz
high_freq
800.2MHz
sp_idx
9.29± 0.89
sp_run
-8.46± 0.90

Exposure and fluence thresholds

exp_up
145.63± 26.70hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.4Jy ms
low_ft_95
—
up_ft_95
2.4Jy ms

Fit quality

chi_sq
1942297.604
dof
1946910
flag_frac
0.266
