CHIME/FRBPublic data

FRB 20200923B

One-off burst

Event ID
136169929
Arrival, 400 MHz
2020-09-23 13:40:00.993 UTC
Right ascension
87.905°
Declination
38.398°

Loading

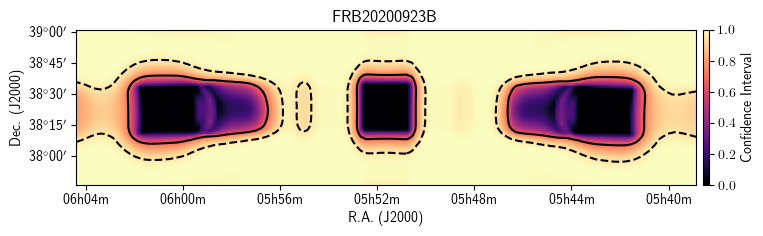

Localization

Loading

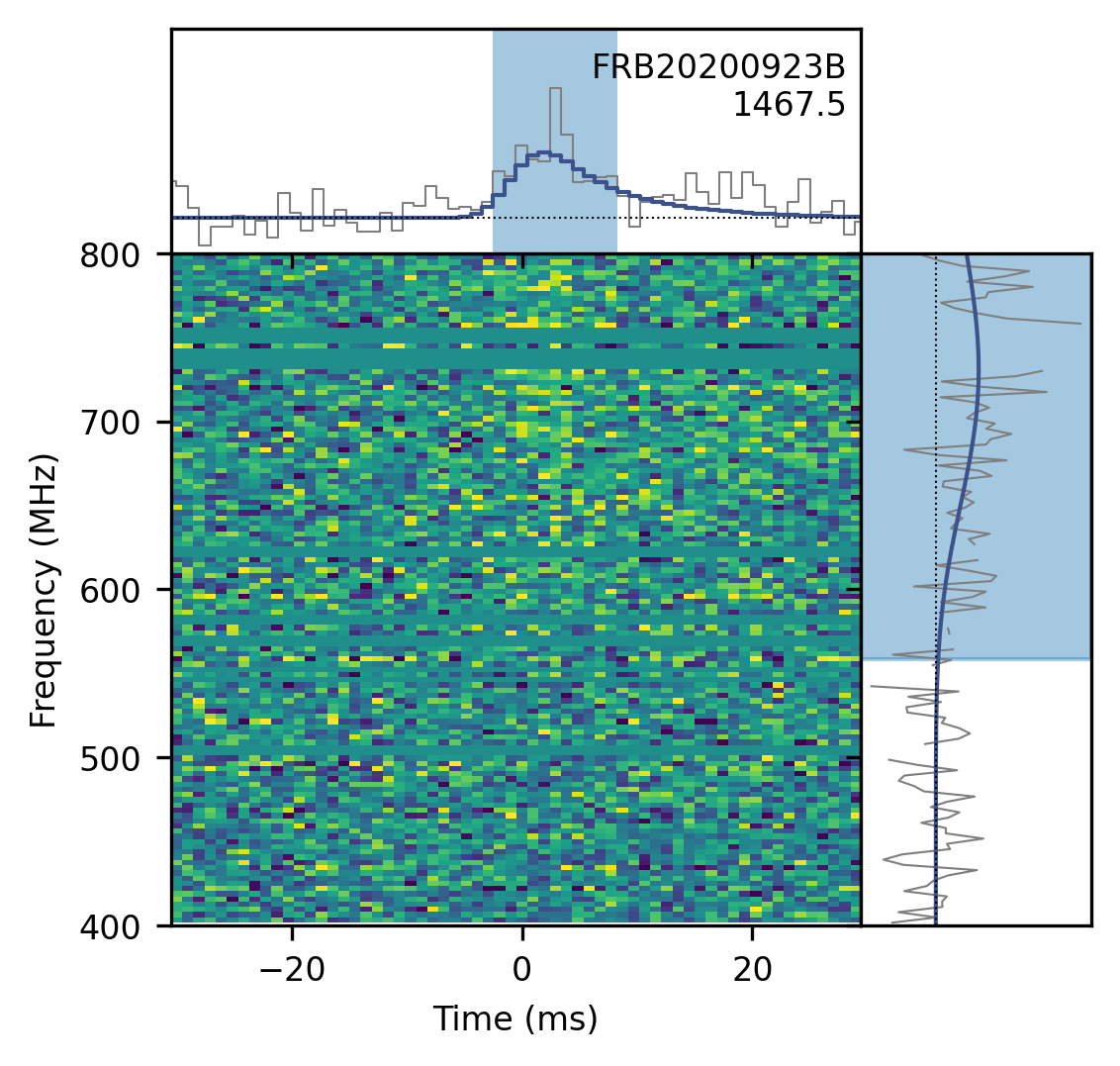

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
87.905± 0.238degrees
dec
38.398± 0.261degrees
gl
172.51degrees
gb
5.92degrees

Detection and dispersion

bonsai_snr
8.7
snr_fitb
10.6
bonsai_dm
1465.5pc cm⁻³
dm_fitb
1467.5317± 0.46705pc cm⁻³
dm_exc_ne2001
1307.5pc cm⁻³
dm_exc_ymw16
1235.2pc cm⁻³

Arrival time

mjd_400
59115.56945594175± 9.83 × 10⁻⁸MJD
mjd_inf
59115.56901588094± 1.71 × 10⁻⁷MJD

Burst shape

bc_width
0.01081s
width_fitb
0.001963± 0.0005317s
scat_time
0.059641± 0.0243305s

Flux and spectrum

flux
0.29± 0.13Jy
fluence
3.16± 0.64Jy ms
peak_freq
716.0MHz
low_freq
558.2MHz
high_freq
800.2MHz
sp_idx
43.23± 17.42
sp_run
-37.16± 15.22

Exposure and fluence thresholds

exp_up
92.72± 57.78hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
4.9Jy ms
low_ft_95
—
up_ft_95
8.2Jy ms

Fit quality

chi_sq
702161.444
dof
702267
flag_frac
0.309
