FRB 20201109A

One-off burst

Event ID
141800077
Arrival, 400 MHz
2020-11-09 17:54:38.485 UTC
Right ascension
198.602°
Declination
3.062°

Loading

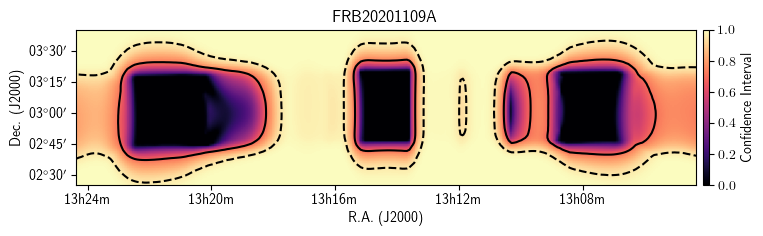

Localization

Loading

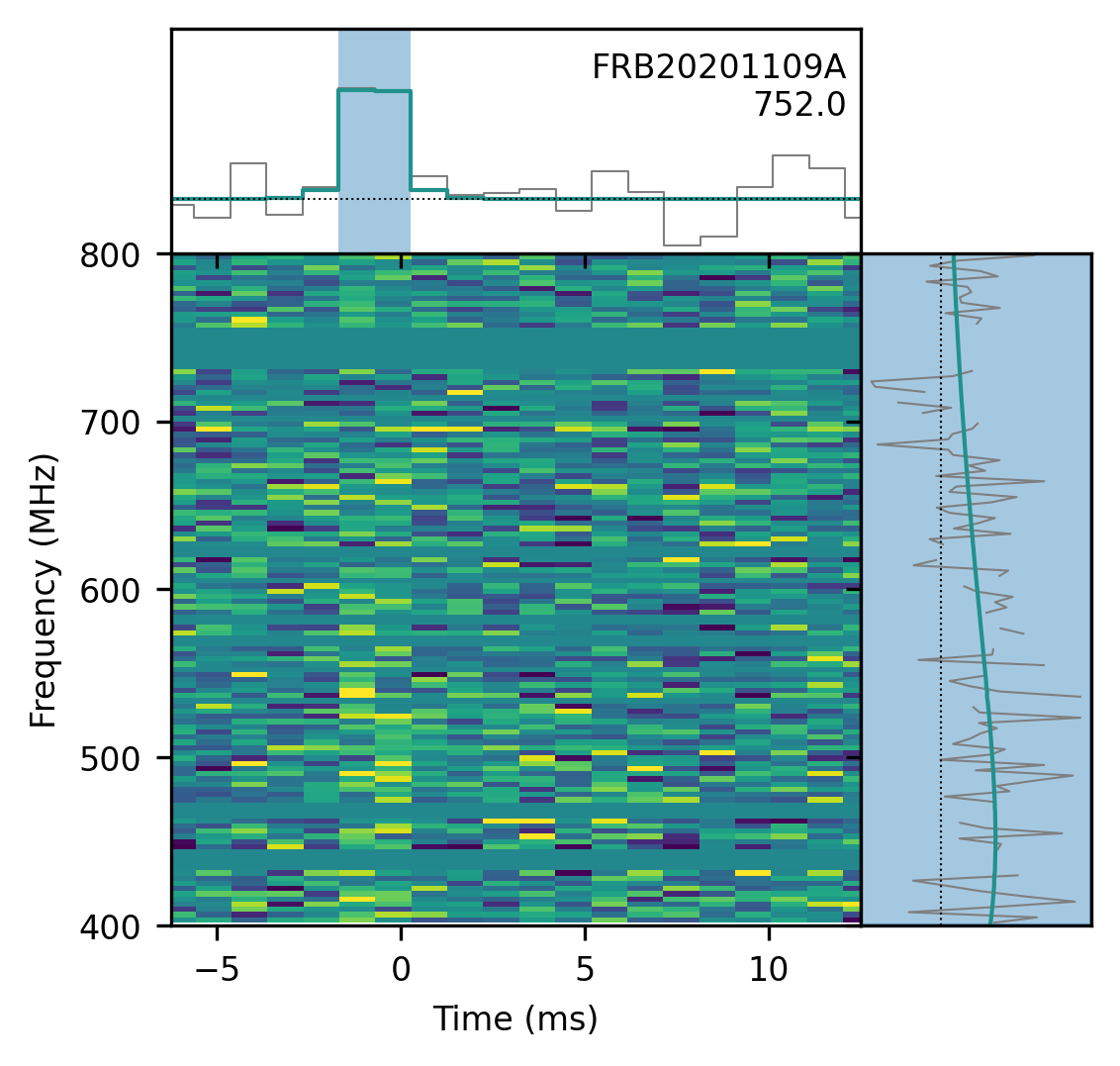

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
198.602± 0.250degrees
dec
3.062± 0.368degrees
gl
316.77degrees
gb
65.31degrees

Detection and dispersion

bonsai_snr
8.7
snr_fitb
10.6
bonsai_dm
750.9pc cm⁻³
dm_fitb
752.0264± 0.00365pc cm⁻³
dm_exc_ne2001
724.0pc cm⁻³
dm_exc_ymw16
729.8pc cm⁻³

Arrival time

mjd_400
59162.74627875845± 4.22 × 10⁻¹⁰MJD
mjd_inf
59162.746053252355± 1.17 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000305± 0.0000110s
scat_time
0.000000s

Flux and spectrum

flux
0.75± 0.55Jy
fluence
1.98± 1.25Jy ms
peak_freq
401.5MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
0.02± 2.21
sp_run
-3.43± 3.62

Exposure and fluence thresholds

exp_up
67.92± 40.55hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
0.8Jy ms
low_ft_95
—
up_ft_95
1.6Jy ms

Fit quality

chi_sq
1830002.685
dof
1830108
flag_frac
0.310
