CHIME/FRBPublic data

FRB 20201116A

One-off burst

Event ID
143628276
Arrival, 400 MHz
2020-11-16 18:44:46.285 UTC
Right ascension
216.676°
Declination
67.553°

Loading

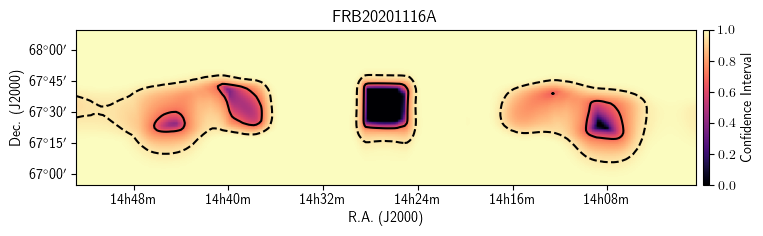

Localization

Loading

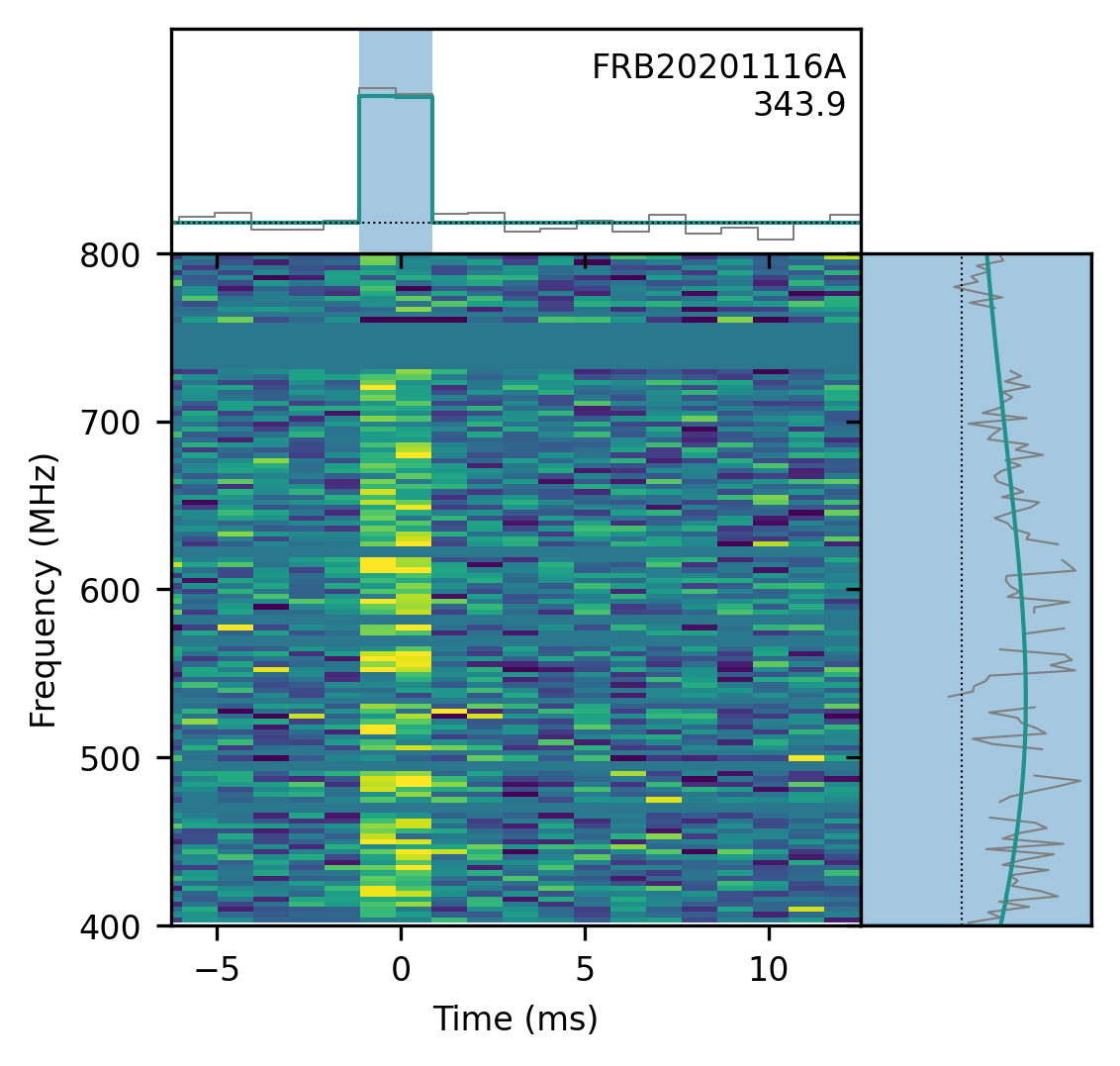

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
216.676± 0.180degrees
dec
67.553± 0.181degrees
gl
109.85degrees
gb
47.08degrees

Detection and dispersion

bonsai_snr
21.7
snr_fitb
32.4
bonsai_dm
343.3pc cm⁻³
dm_fitb
343.8848± 0.00089pc cm⁻³
dm_exc_ne2001
308.3pc cm⁻³
dm_exc_ymw16
315.6pc cm⁻³

Arrival time

mjd_400
59169.78109126505± 1.35 × 10⁻¹⁰MJD
mjd_inf
59169.780988146165± 3.01 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000200± 0.0000024s
scat_time
0.000000s

Flux and spectrum

flux
2.40± 0.90Jy
fluence
3.69± 1.19Jy ms
peak_freq
533.9MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
3.32± 0.70
sp_run
-5.75± 0.99

Exposure and fluence thresholds

exp_up
212.51± 96.59hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.5Jy ms
low_ft_95
—
up_ft_95
4.4Jy ms

Fit quality

chi_sq
732475.311
dof
733516
flag_frac
0.278
