CHIME/FRBPublic data
Repeater
FRB20200120E
Event ID
168743856
Arrival, 400 MHz
2021-04-21 04:03:48.373 UTC
Right ascension
149.191°
Declination
68.782°

Loading

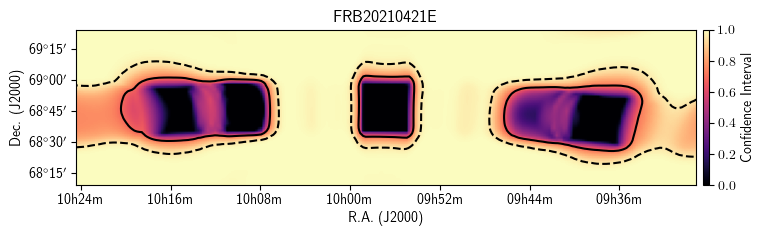

Localization

Loading

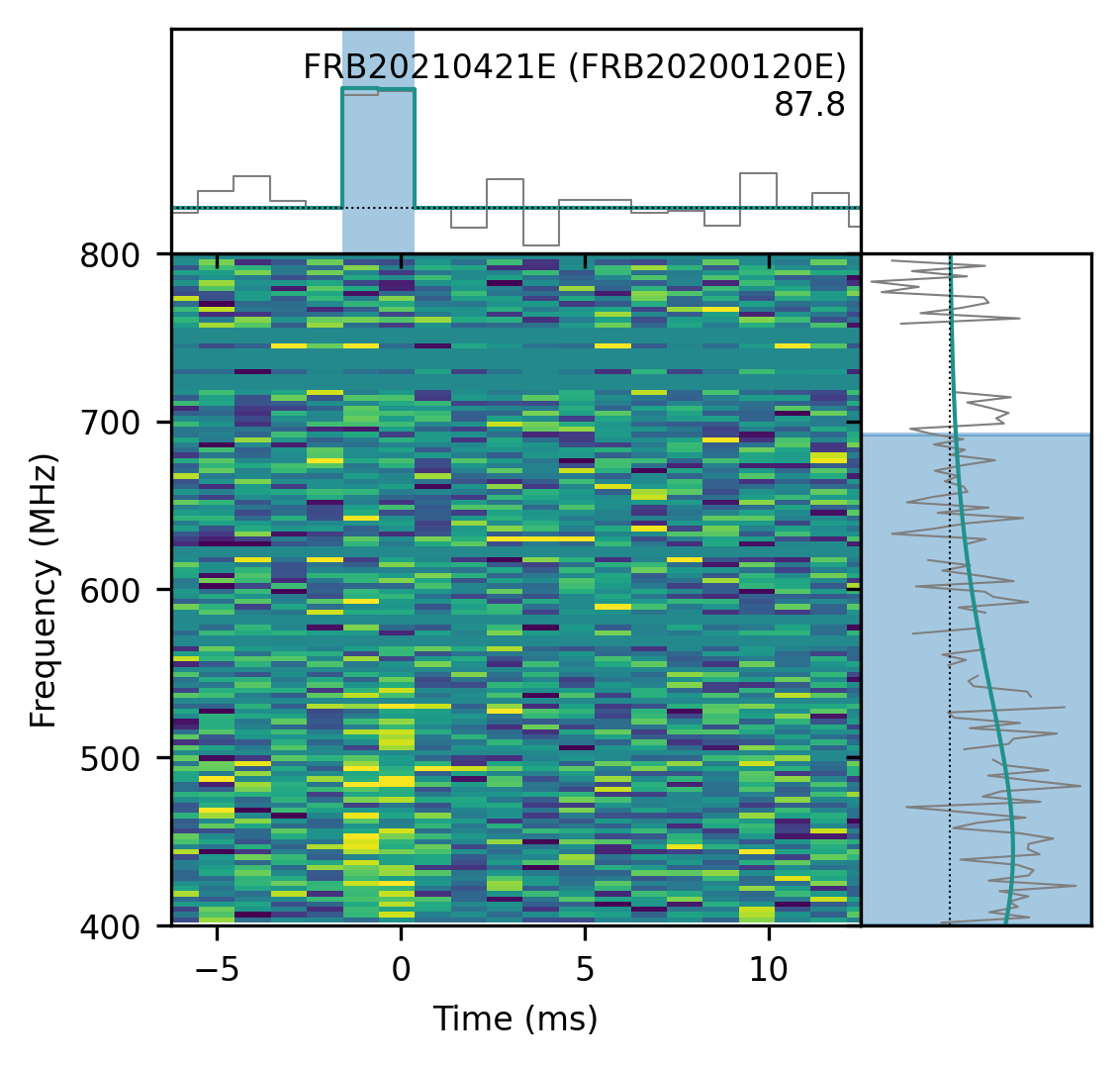

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
149.191± 0.224degrees
dec
68.782± 0.250degrees
gl
142.32degrees
gb
41.15degrees

Detection and dispersion

bonsai_snr
9.9
snr_fitb
14.0
bonsai_dm
87.7pc cm⁻³
dm_fitb
87.7759± 0.00310pc cm⁻³
dm_exc_ne2001
46.9pc cm⁻³
dm_exc_ymw16
55.4pc cm⁻³

Arrival time

mjd_400
59325.16930987479± 2.87 × 10⁻¹⁰MJD
mjd_inf
59325.1692835539± 9.74 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000220± 0.0000076s
scat_time
0.000000s

Flux and spectrum

flux
0.66± 0.19Jy
fluence
1.28± 0.49Jy ms
peak_freq
444.5MHz
low_freq
400.2MHz
high_freq
692.2MHz
sp_idx
2.46± 1.80
sp_run
-11.73± 3.93

Exposure and fluence thresholds

exp_up
195.76± 118.11hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
1.1Jy ms
low_ft_95
0.0Jy ms
up_ft_95
2.2Jy ms

Fit quality

chi_sq
2058499.817
dof
2058690
flag_frac
0.224
