CHIME/FRBPublic data
Repeater
FRB20200120E
Event ID
168930553
Arrival, 400 MHz
2021-04-23 03:48:34.732 UTC
Right ascension
149.651°
Declination
68.778°

Loading

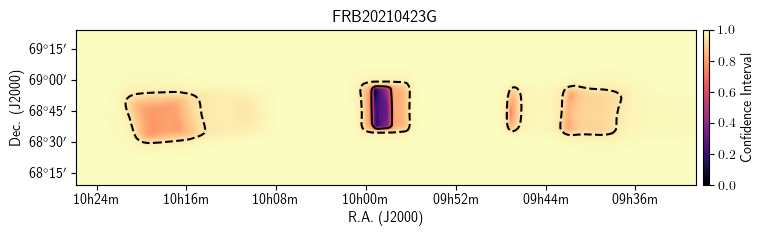

Localization

Loading

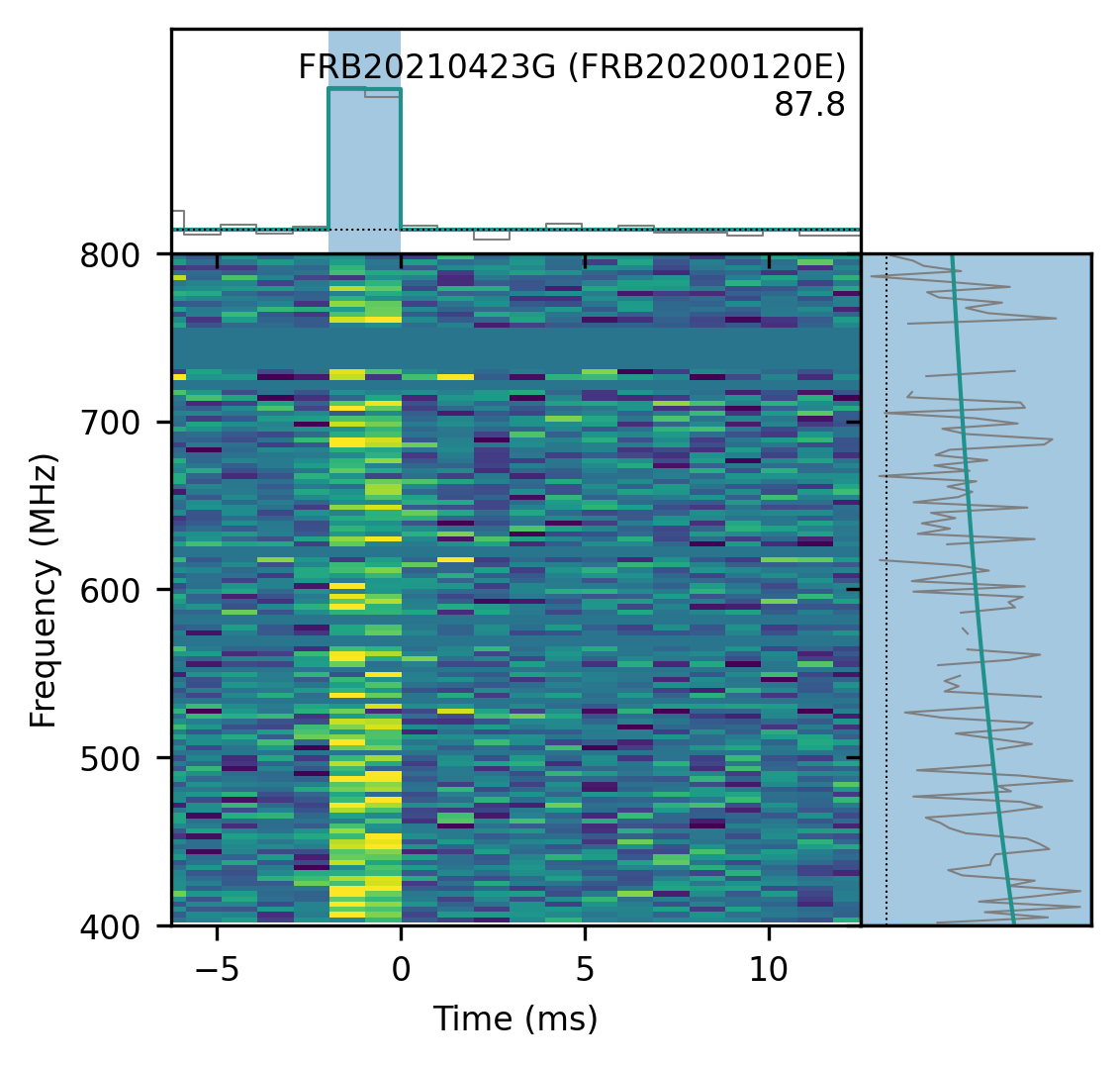

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
149.651± 0.083degrees
dec
68.778± 0.172degrees
gl
142.19degrees
gb
41.29degrees

Detection and dispersion

bonsai_snr
26.1
snr_fitb
42.1
bonsai_dm
87.7pc cm⁻³
dm_fitb
87.7561± 0.00046pc cm⁻³
dm_exc_ne2001
47.0pc cm⁻³
dm_exc_ymw16
55.5pc cm⁻³

Arrival time

mjd_400
59327.158735326804± 6.35 × 10⁻¹¹MJD
mjd_inf
59327.15870901187± 1.52 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000172± 0.0000013s
scat_time
0.000000s

Flux and spectrum

flux
2.00± 0.95Jy
fluence
3.32± 1.38Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
-0.78± 0.44
sp_run
-0.26± 0.65

Exposure and fluence thresholds

exp_up
237.31± 95.83hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
1.1Jy ms
low_ft_95
0.0Jy ms
up_ft_95
2.2Jy ms

Fit quality

chi_sq
2035051.920
dof
2036820
flag_frac
0.233
