Repeater
FRB20201124A
Event ID
171698685
Arrival, 400 MHz
2021-05-21 21:07:19.472 UTC
Right ascension
77.101°
Declination
26.188°

Loading

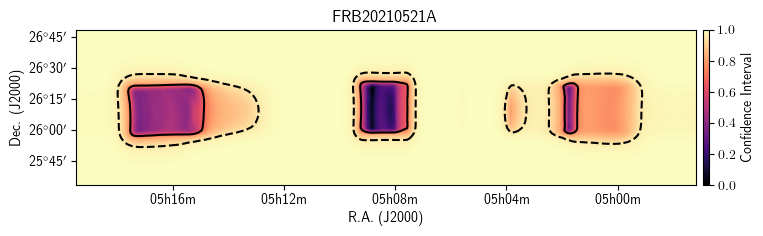

Localization

Loading

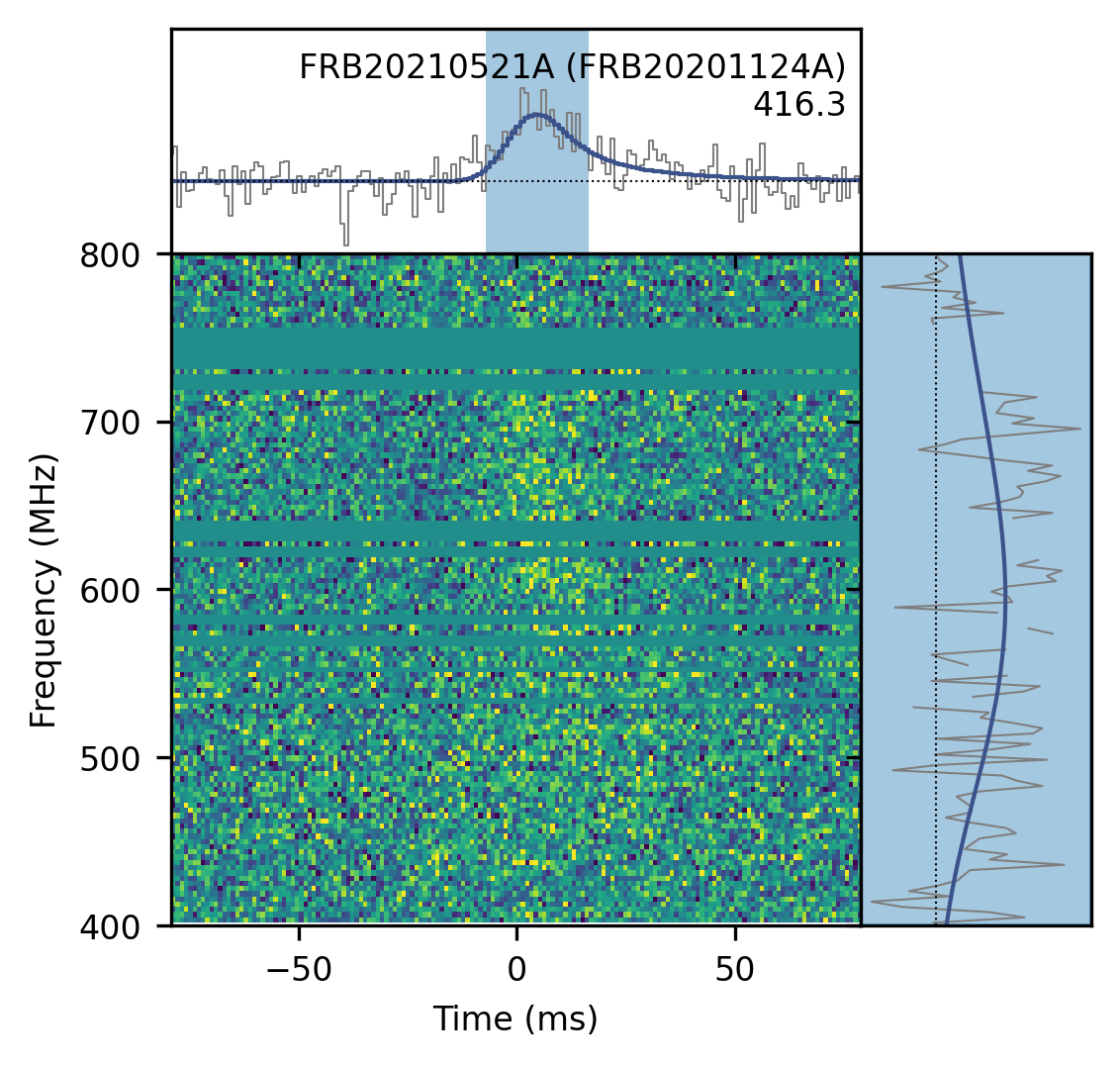

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
77.101± 0.192degrees
dec
26.188± 0.207degrees
gl
177.71degrees
gb
-8.39degrees

Detection and dispersion

bonsai_snr
14.4
snr_fitb
17.6
bonsai_dm
418.9pc cm⁻³
dm_fitb
416.2587± 0.25151pc cm⁻³
dm_exc_ne2001
275.1pc cm⁻³
dm_exc_ymw16
217.9pc cm⁻³

Arrival time

mjd_400
59355.88008647681± 4.81 × 10⁻⁸MJD
mjd_inf
59355.879961655555± 8.94 × 10⁻⁸MJD

Burst shape

bc_width
0.02359s
width_fitb
0.005282± 0.0009025s
scat_time
0.047443± 0.0078411s

Flux and spectrum

flux
0.30± 0.18Jy
fluence
3.14± 1.01Jy ms
peak_freq
551.5MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
6.20± 1.80
sp_run
-9.67± 2.23

Exposure and fluence thresholds

exp_up
89.03± 47.07hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
6.1Jy ms
low_ft_95
0.0Jy ms
up_ft_95
14.4Jy ms

Fit quality

chi_sq
1978519.917
dof
1978823
flag_frac
0.254
