CHIME/FRBPublic data
Repeater
FRB20201124A
Event ID
172067611
Arrival, 400 MHz
2021-05-25 20:53:24.418 UTC
Right ascension
77.087°
Declination
26.193°

Loading

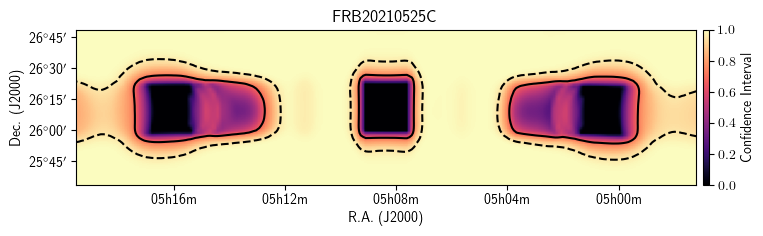

Localization

Loading

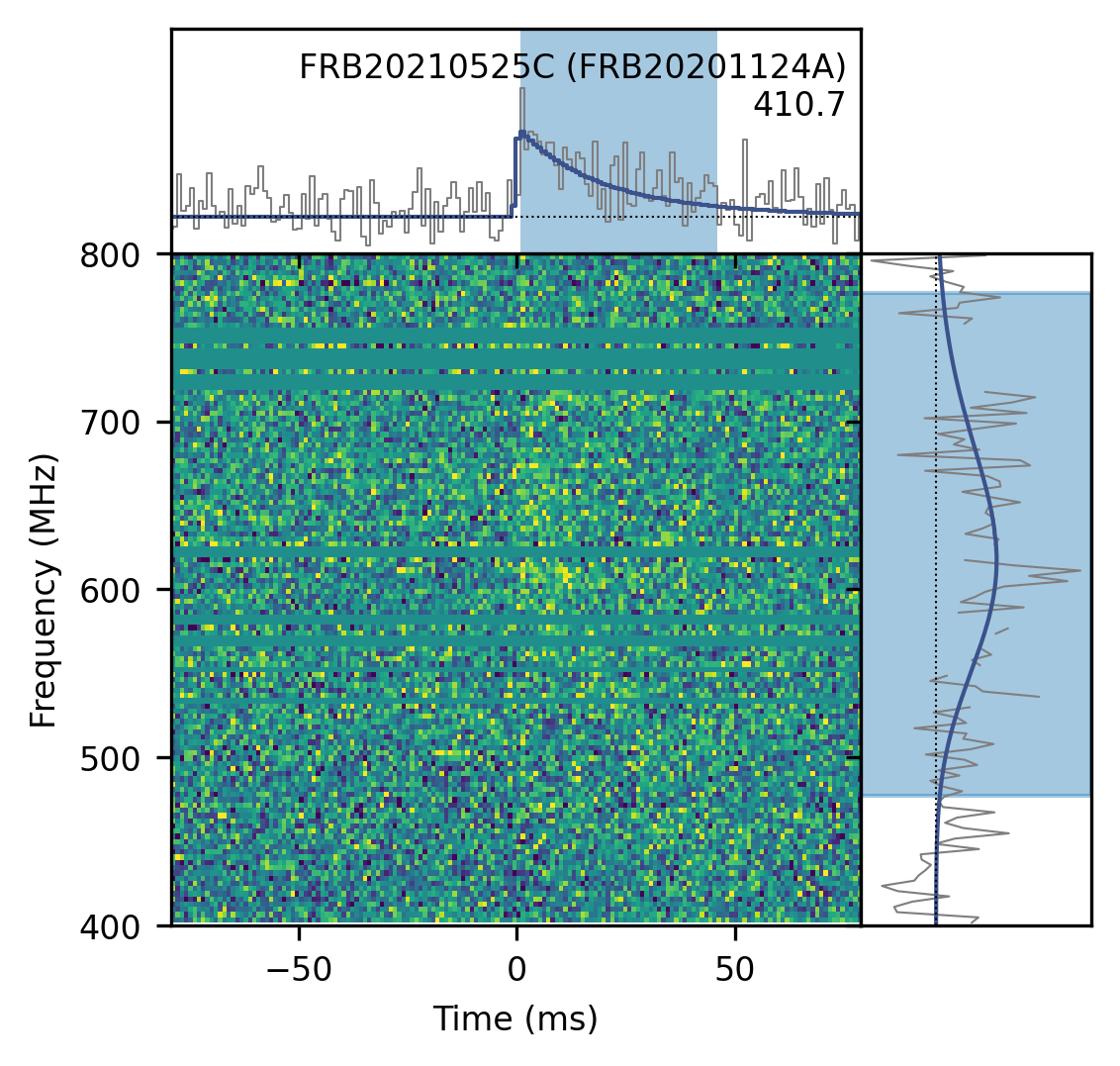

Waterfall

Notes

  • Intrachannel dispersion was not modeled during fit.
  • Fitburst. Fitburst was run with an older version that used the upper edge of the frequency channel and the start of the time integration rather than the channel and integration centers used in the current version.

Position

ra
77.087± 0.224degrees
dec
26.193± 0.256degrees
gl
177.70degrees
gb
-8.39degrees

Detection and dispersion

bonsai_snr
9.6
snr_fitb
15.5
bonsai_dm
412.5pc cm⁻³
dm_fitb
410.6817± 10.60299pc cm⁻³
dm_exc_ne2001
269.6pc cm⁻³
dm_exc_ymw16
212.4pc cm⁻³

Arrival time

mjd_400
59359.87042150942± 1.73 × 10⁻⁶MJD
mjd_inf
59359.870298360496± 3.62 × 10⁻⁶MJD

Burst shape

bc_width
0.04522s
width_fitb
0.000053± 0.0099599s
scat_time
0.129743± 0.0174130s

Flux and spectrum

flux
0.30± 0.12Jy
fluence
2.90± 0.63Jy ms
peak_freq
608.5MHz
low_freq
477.1MHz
high_freq
776.1MHz
sp_idx
32.59± 20.81
sp_run
-38.89± 38.01

Exposure and fluence thresholds

exp_up
80.77± 51.59hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
6.1Jy ms
low_ft_95
0.0Jy ms
up_ft_95
14.4Jy ms

Fit quality

chi_sq
2042066.621
dof
2042165
flag_frac
0.231
