FRB 20210620C

One-off burst

Event ID
174465501
Arrival, 400 MHz
2021-06-20 07:12:20.822 UTC
Right ascension
257.236°
Declination
75.257°

Loading

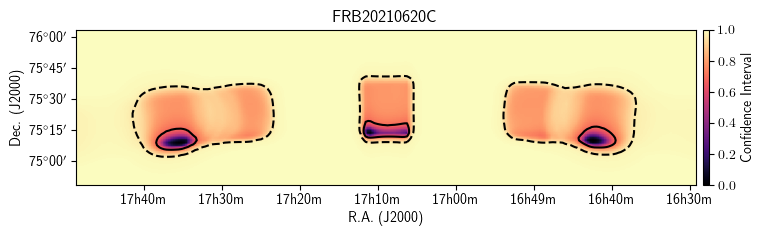

Localization

Loading

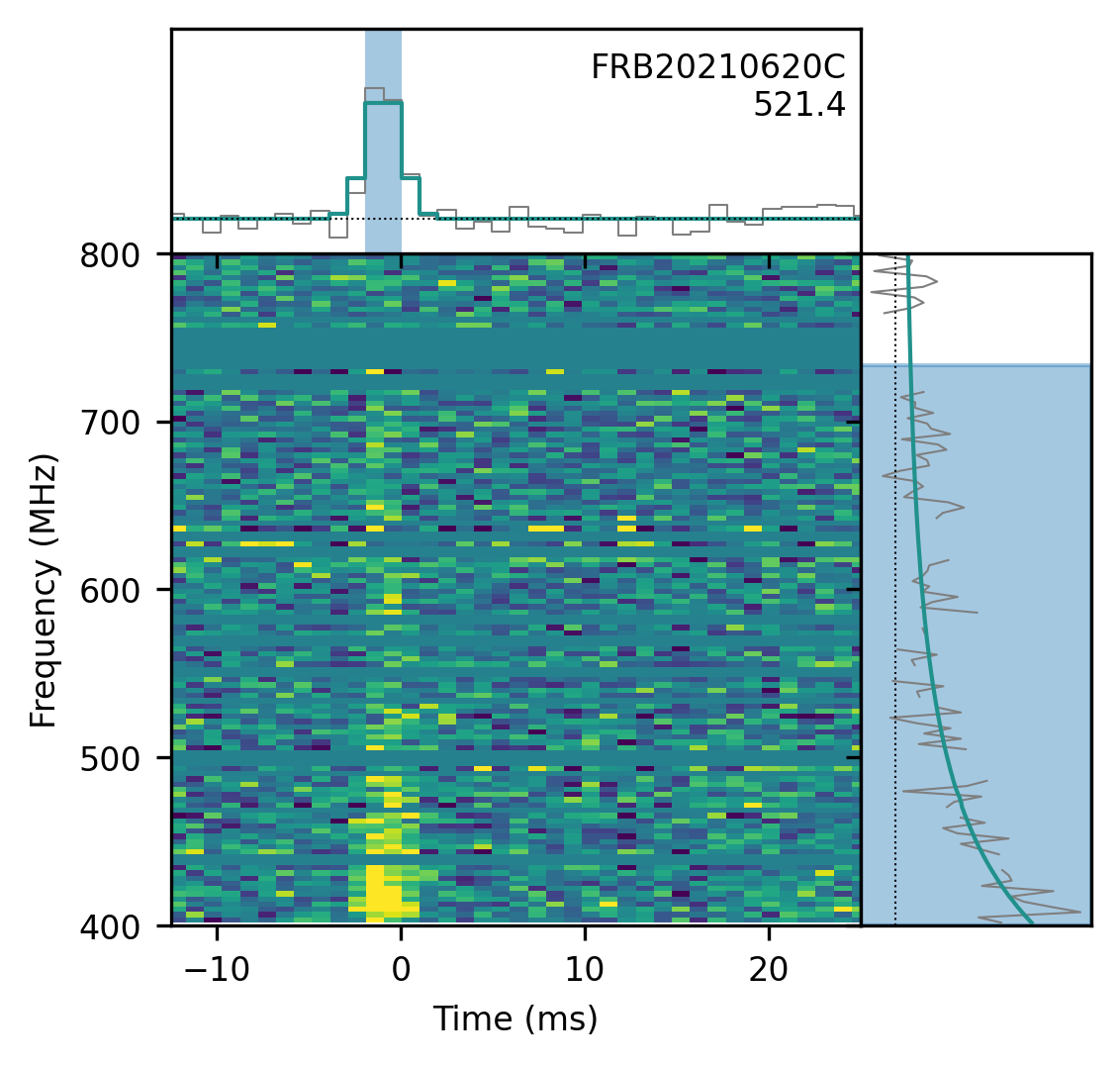

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
257.236± 0.186degrees
dec
75.257± 0.068degrees
gl
107.13degrees
gb
32.61degrees

Detection and dispersion

bonsai_snr
21.4
snr_fitb
27.4
bonsai_dm
521.2pc cm⁻³
dm_fitb
521.4350± 0.00725pc cm⁻³
dm_exc_ne2001
475.5pc cm⁻³
dm_exc_ymw16
481.1pc cm⁻³

Arrival time

mjd_400
59385.30024099636± 6.21 × 10⁻¹⁰MJD
mjd_inf
59385.30008463645± 2.26 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000814± 0.0000301s
scat_time
0.000000s

Flux and spectrum

flux
0.78± 0.23Jy
fluence
2.27± 0.50Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
733.2MHz
sp_idx
-5.26± 0.71
sp_run
2.41± 1.34

Exposure and fluence thresholds

exp_up
246.58± 159.77hour
exp_low
202.95± 123.73hour
low_ft_68
4.8Jy ms
up_ft_68
0.8Jy ms
low_ft_95
8.0Jy ms
up_ft_95
1.3Jy ms

Fit quality

chi_sq
1827582.974
dof
1828326
flag_frac
0.311
