CHIME/FRBPublic data

FRB 20210722D

One-off burst

Event ID
176922854
Arrival, 400 MHz
2021-07-22 03:29:35.390 UTC
Right ascension
233.107°
Declination
19.349°

Loading

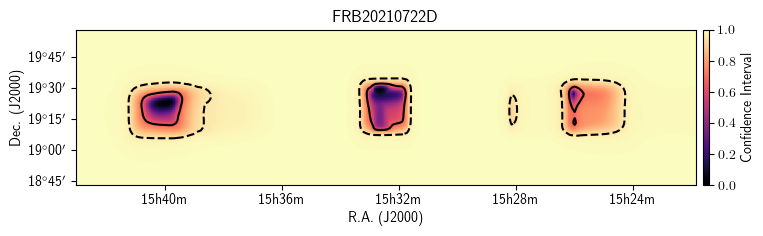

Localization

Loading

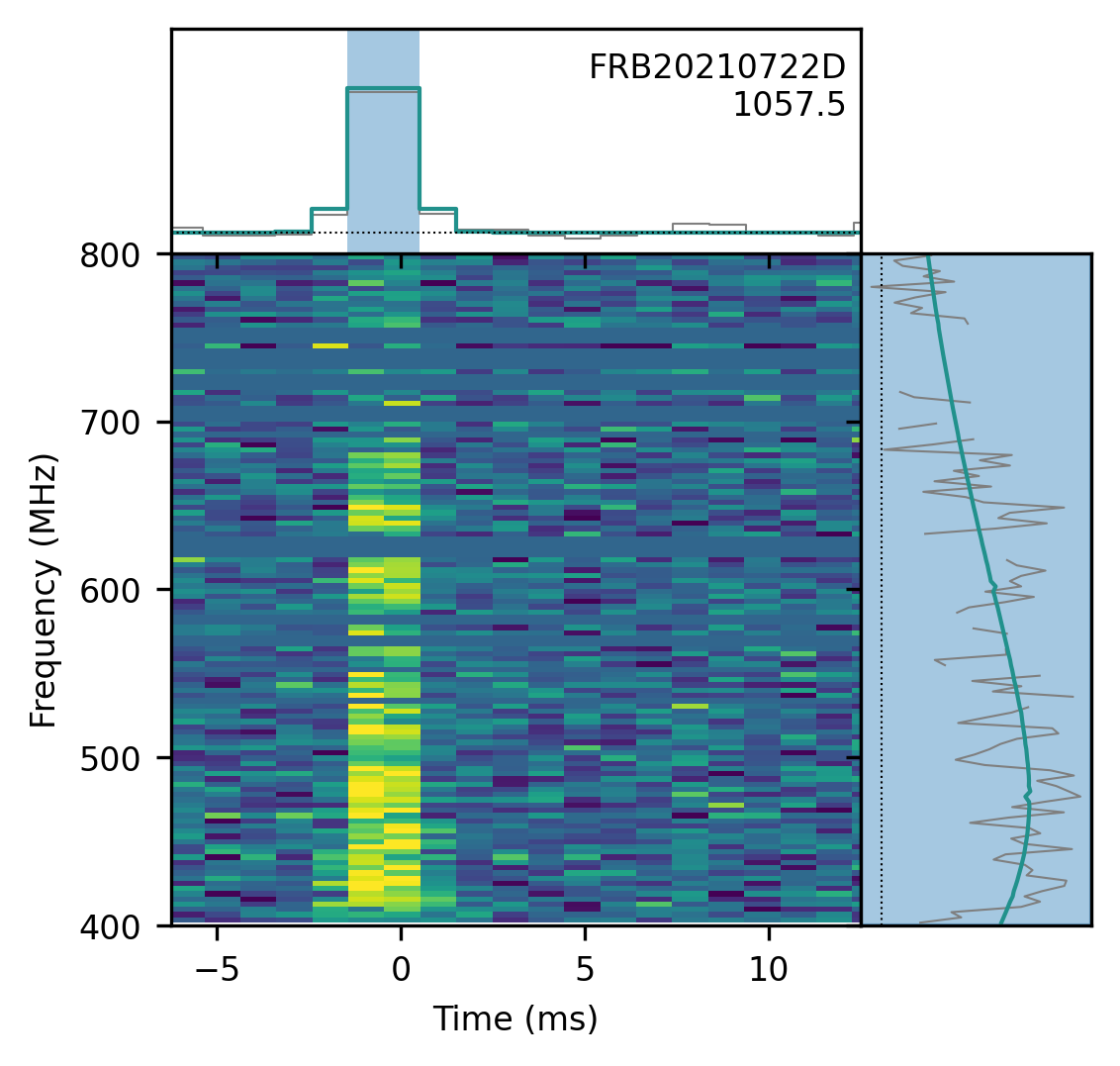

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
233.107± 0.158degrees
dec
19.349± 0.188degrees
gl
29.79degrees
gb
52.37degrees

Detection and dispersion

bonsai_snr
32.9
snr_fitb
47.5
bonsai_dm
1056.6pc cm⁻³
dm_fitb
1057.4995± 0.00067pc cm⁻³
dm_exc_ne2001
1031.1pc cm⁻³
dm_exc_ymw16
1031.7pc cm⁻³

Arrival time

mjd_400
59417.145548499095± 6.62 × 10⁻¹¹MJD
mjd_inf
59417.14523139241± 2.12 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000298± 0.0000013s
scat_time
0.000000s

Flux and spectrum

flux
2.89± 1.06Jy
fluence
6.38± 2.10Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
-0.31± 0.42
sp_run
-2.60± 0.64

Exposure and fluence thresholds

exp_up
96.78± 29.78hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.5Jy ms
low_ft_95
—
up_ft_95
2.5Jy ms

Fit quality

chi_sq
1803557.532
dof
1805808
flag_frac
0.320
