CHIME/FRBPublic data

FRB 20211122B

One-off burst

Event ID
198634333
Arrival, 400 MHz
2021-11-22 17:26:24.035 UTC
Right ascension
204.434°
Declination
56.814°

Loading

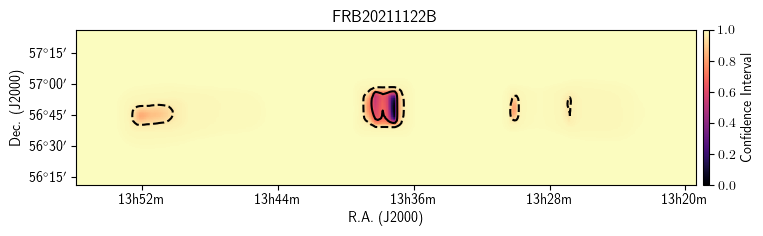

Localization

Loading

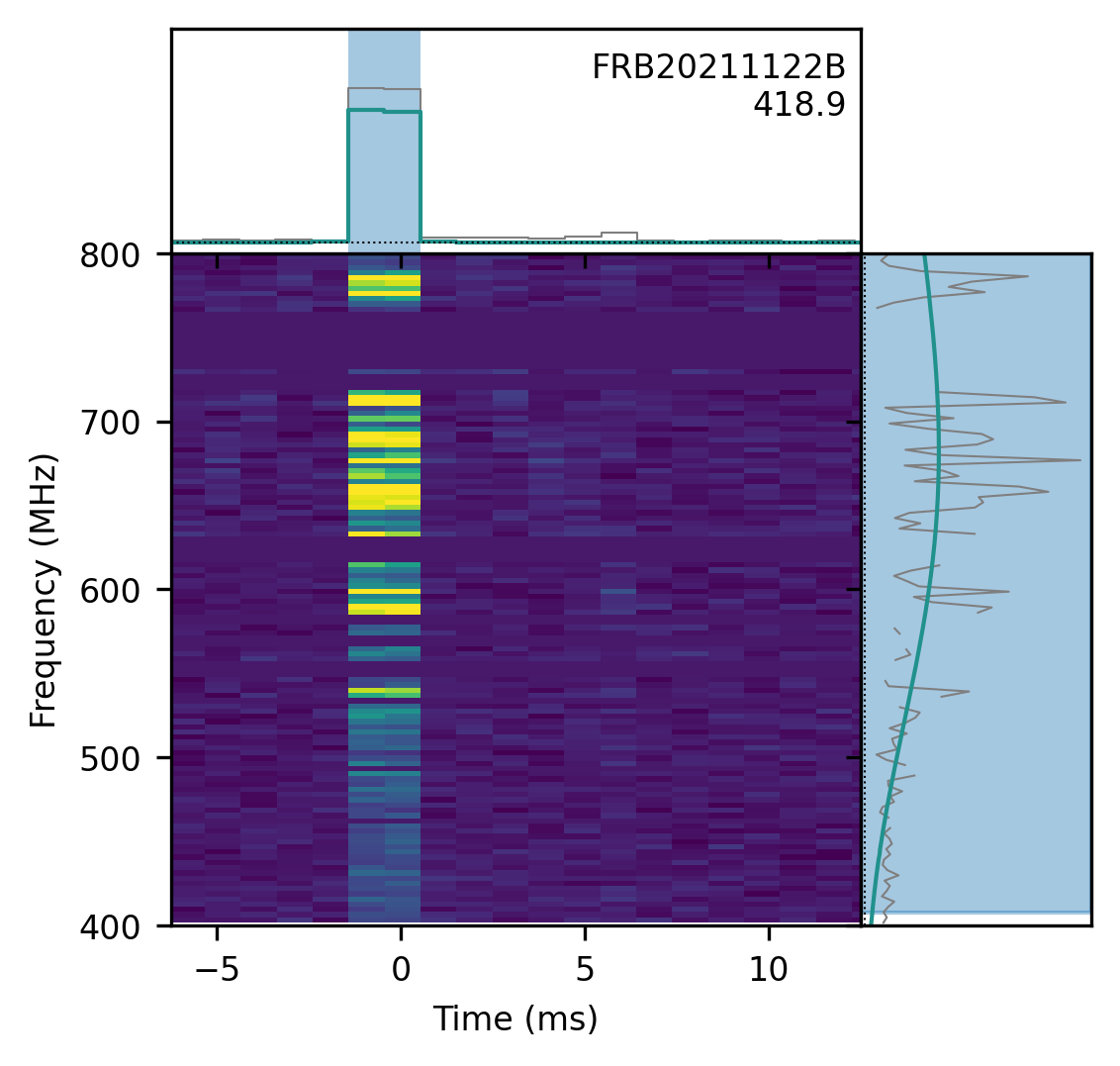

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
204.434± 0.104degrees
dec
56.814± 0.128degrees
gl
110.55degrees
gb
59.19degrees

Detection and dispersion

bonsai_snr
85.0
snr_fitb
220.8
bonsai_dm
418.5pc cm⁻³
dm_fitb
418.8531± 0.00030pc cm⁻³
dm_exc_ne2001
387.5pc cm⁻³
dm_exc_ymw16
395.4pc cm⁻³

Arrival time

mjd_400
59540.72666706638± 5.52 × 10⁻¹¹MJD
mjd_inf
59540.72654146716± 1.05 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000230± 0.0000005s
scat_time
0.000000s

Flux and spectrum

flux
7.55± 2.48Jy
fluence
13.76± 4.37Jy ms
peak_freq
682.0MHz
low_freq
407.8MHz
high_freq
800.2MHz
sp_idx
9.29± 0.22
sp_run
-8.71± 0.23

Exposure and fluence thresholds

exp_up
184.78± 24.70hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.0Jy ms
low_ft_95
—
up_ft_95
1.8Jy ms

Fit quality

chi_sq
1696645.432
dof
1745374
flag_frac
0.239
