Repeater
FRB20190716C
Event ID
206185996
Arrival, 400 MHz
2022-01-07 02:21:58.787 UTC
Right ascension
186.610°
Declination
89.733°

Loading

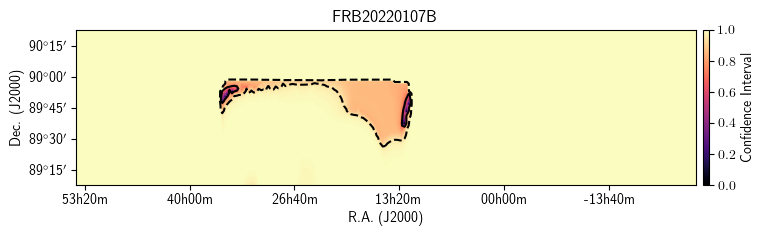

Localization

Loading

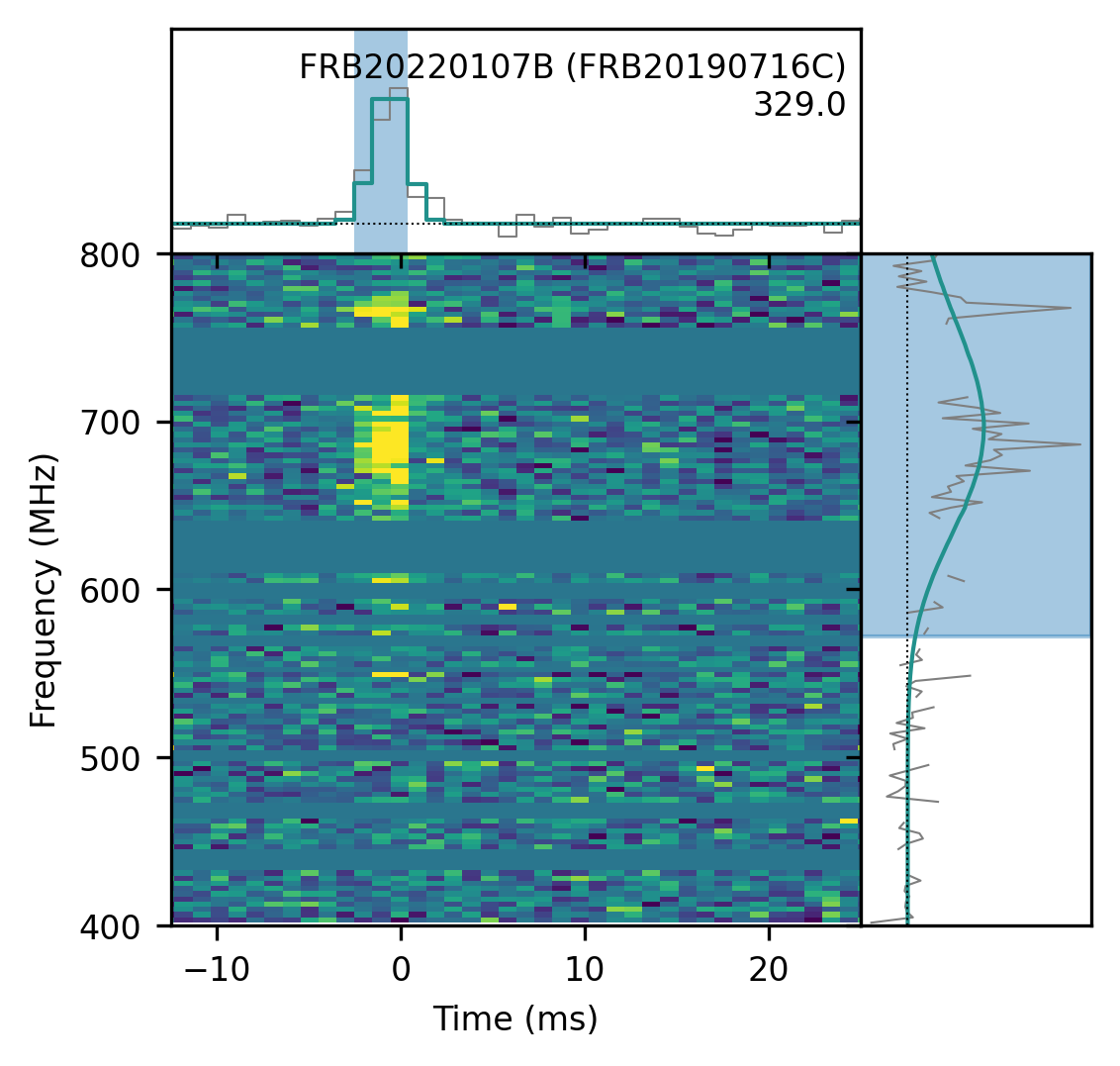

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
186.610± 0.040degrees
dec
89.733± 0.135degrees
gl
122.96degrees
gb
27.39degrees

Detection and dispersion

bonsai_snr
20.9
snr_fitb
35.6
bonsai_dm
328.8pc cm⁻³
dm_fitb
329.0014± 0.03333pc cm⁻³
dm_exc_ne2001
274.9pc cm⁻³
dm_exc_ymw16
277.2pc cm⁻³

Arrival time

mjd_400
59586.09859706616± 6.68 × 10⁻⁹MJD
mjd_inf
59586.09849841029± 1.20 × 10⁻⁸MJD

Burst shape

bc_width
0.00295s
width_fitb
0.000831± 0.0000402s
scat_time
0.000000s

Flux and spectrum

flux
1.50± 0.49Jy
fluence
3.81± 1.14Jy ms
peak_freq
696.0MHz
low_freq
571.9MHz
high_freq
800.2MHz
sp_idx
66.06± 6.89
sp_run
-59.68± 6.07

Exposure and fluence thresholds

exp_up
10515.49± 1437.01hour
exp_low
6468.25± 2729.17hour
low_ft_68
1.6Jy ms
up_ft_68
1.4Jy ms
low_ft_95
2.5Jy ms
up_ft_95
2.7Jy ms

Fit quality

chi_sq
1737637.978
dof
1738902
flag_frac
0.345
