FRB 20220122A

One-off burst

Event ID
208567837
Arrival, 400 MHz
2022-01-22 19:22:47.613 UTC
Right ascension
292.554°
Declination
28.258°

Loading

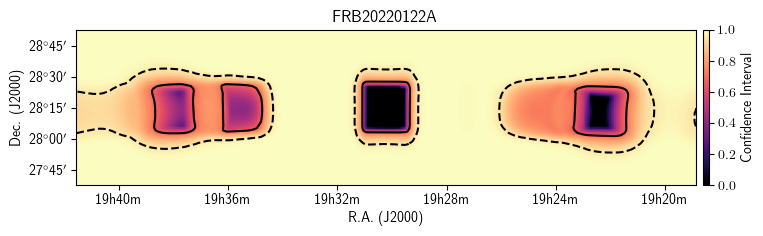

Localization

Loading

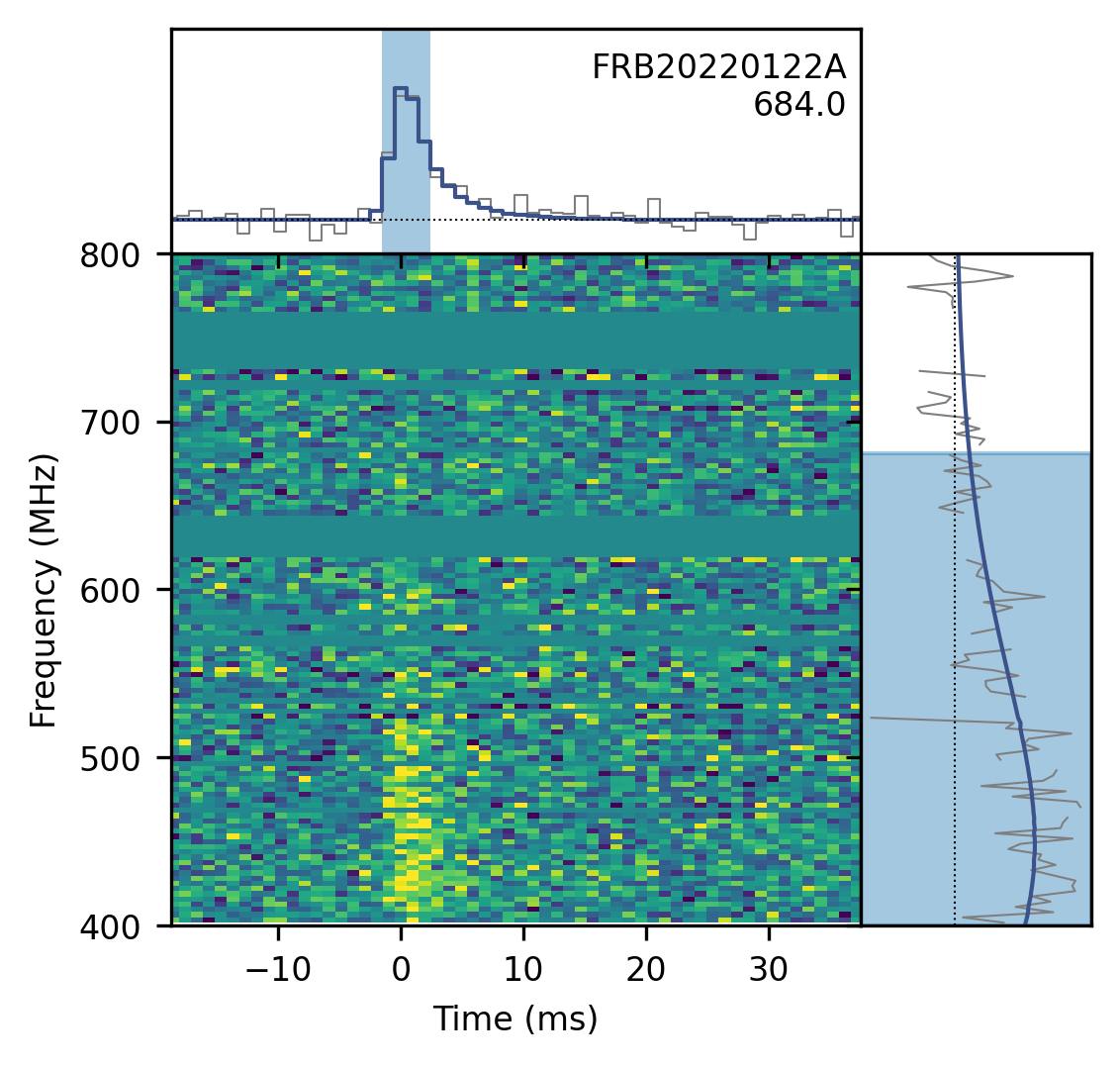

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
292.554± 0.192degrees
dec
28.258± 0.205degrees
gl
62.32degrees
gb
4.81degrees

Detection and dispersion

bonsai_snr
17.9
snr_fitb
23.3
bonsai_dm
683.0pc cm⁻³
dm_fitb
683.9914± 0.01652pc cm⁻³
dm_exc_ne2001
398.5pc cm⁻³
dm_exc_ymw16
366.4pc cm⁻³

Arrival time

mjd_400
59601.807495515866± 1.97 × 10⁻⁹MJD
mjd_inf
59601.80729041104± 5.33 × 10⁻⁹MJD

Burst shape

bc_width
0.00393s
width_fitb
0.000626± 0.0000815s
scat_time
0.004415± 0.0005906s

Flux and spectrum

flux
1.23± 0.69Jy
fluence
7.60± 3.63Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
680.6MHz
sp_idx
-0.71± 0.98
sp_run
-6.84± 2.12

Exposure and fluence thresholds

exp_up
84.26± 47.20hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
3.7Jy ms
low_ft_95
—
up_ft_95
6.9Jy ms

Fit quality

chi_sq
1906846.633
dof
1907381
flag_frac
0.281
