FRB 20220316D

One-off burst

Event ID
216051943
Arrival, 400 MHz
2022-03-16 13:35:00.298 UTC
Right ascension
256.821°
Declination
74.137°

Loading

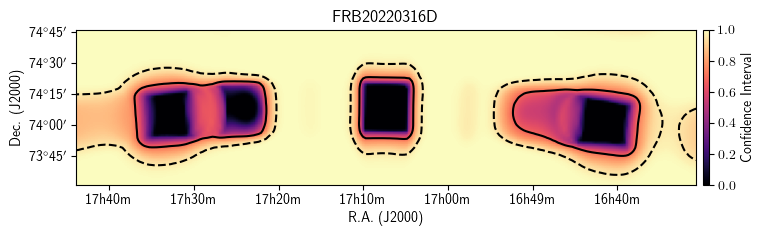

Localization

Loading

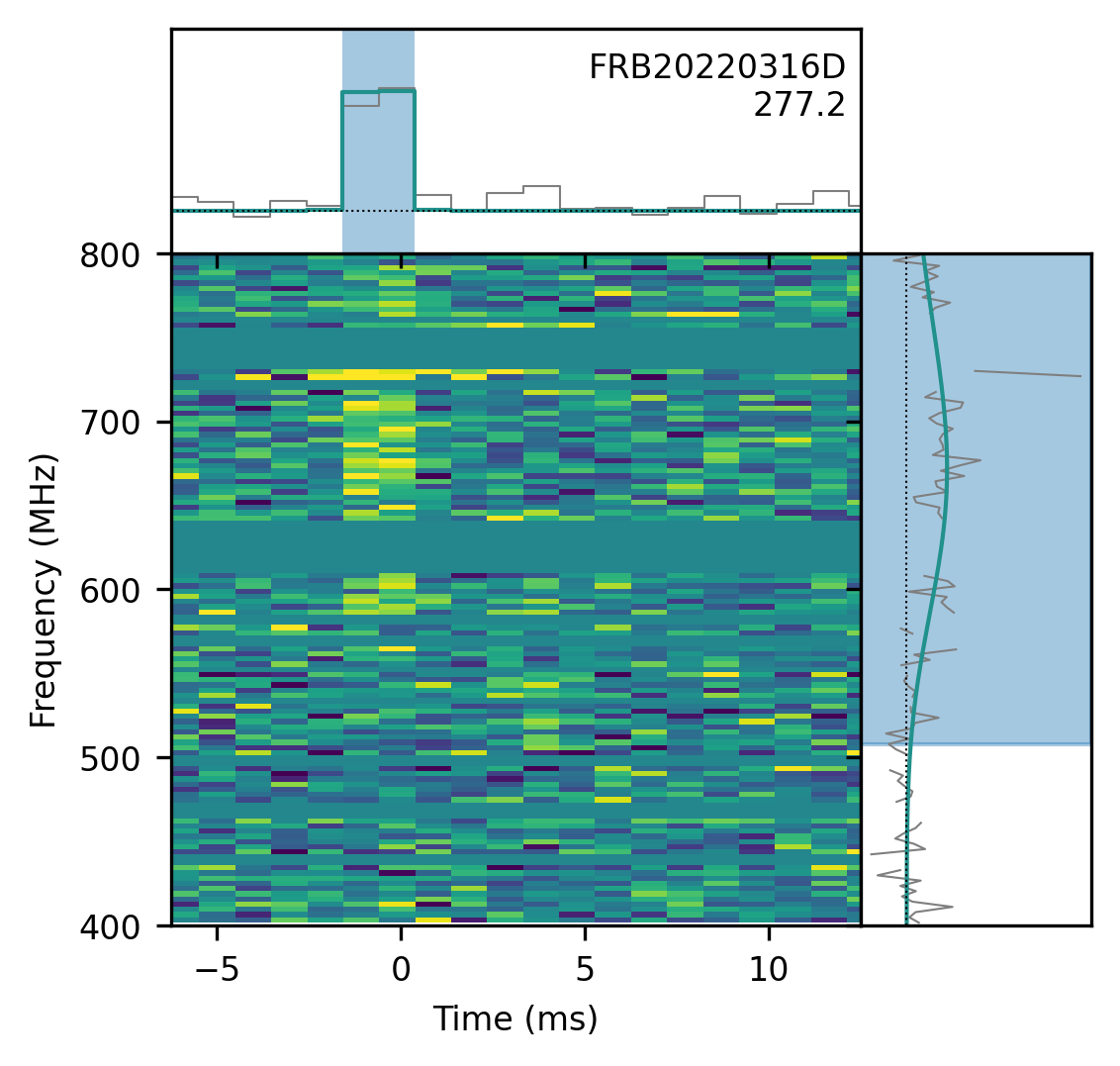

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
256.821± 0.220degrees
dec
74.137± 0.249degrees
gl
105.89degrees
gb
33.05degrees

Detection and dispersion

bonsai_snr
11.9
snr_fitb
18.7
bonsai_dm
277.0pc cm⁻³
dm_fitb
277.1625± 0.00819pc cm⁻³
dm_exc_ne2001
231.8pc cm⁻³
dm_exc_ymw16
237.5pc cm⁻³

Arrival time

mjd_400
59654.565975674544± 1.58 × 10⁻⁹MJD
mjd_inf
59654.565892563325± 2.92 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000270± 0.0000090s
scat_time
0.000000s

Flux and spectrum

flux
0.95± 0.47Jy
fluence
1.68± 0.81Jy ms
peak_freq
671.8MHz
low_freq
508.1MHz
high_freq
800.2MHz
sp_idx
30.57± 4.97
sp_run
-29.51± 4.88

Exposure and fluence thresholds

exp_up
274.17± 151.81hour
exp_low
172.51± 120.94hour
low_ft_68
6.8Jy ms
up_ft_68
1.1Jy ms
low_ft_95
13.8Jy ms
up_ft_95
2.1Jy ms

Fit quality

chi_sq
1744390.686
dof
1744734
flag_frac
0.343
