CHIME/FRBPublic data

FRB 20220316F

One-off burst

Event ID
216009590
Arrival, 400 MHz
2022-03-16 04:27:25.676 UTC
Right ascension
120.073°
Declination
42.383°

Loading

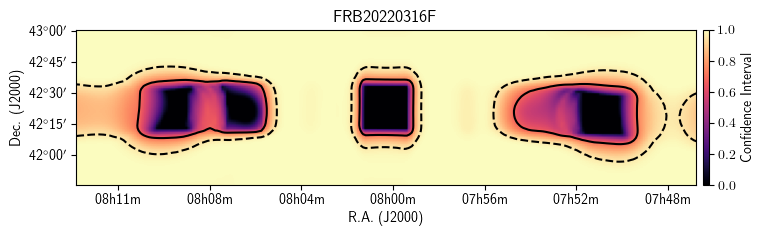

Localization

Loading

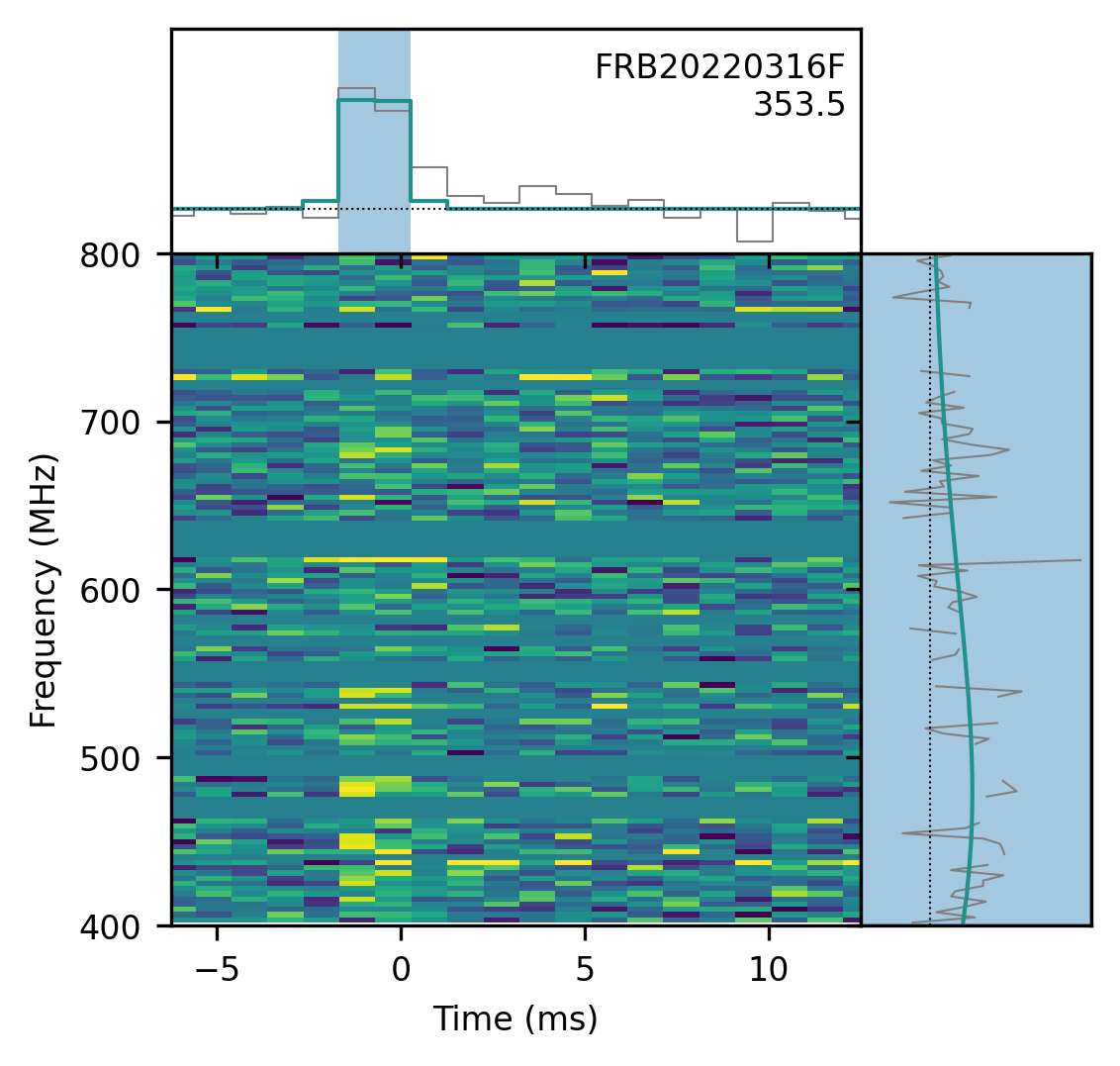

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
120.073± 0.218degrees
dec
42.383± 0.227degrees
gl
177.60degrees
gb
30.13degrees

Detection and dispersion

bonsai_snr
10.8
snr_fitb
12.9
bonsai_dm
353.0pc cm⁻³
dm_fitb
353.5279± 0.00727pc cm⁻³
dm_exc_ne2001
296.6pc cm⁻³
dm_exc_ymw16
296.0pc cm⁻³

Arrival time

mjd_400
59654.185713844614± 9.38 × 10⁻¹⁰MJD
mjd_inf
59654.18560783412± 2.37 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000437± 0.0000288s
scat_time
0.000000s

Flux and spectrum

flux
0.56± 0.16Jy
fluence
1.20± 0.55Jy ms
peak_freq
475.8MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
2.56± 1.61
sp_run
-7.40± 2.84

Exposure and fluence thresholds

exp_up
100.23± 58.95hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.2Jy ms
low_ft_95
—
up_ft_95
2.3Jy ms

Fit quality

chi_sq
1626960.851
dof
1627122
flag_frac
0.387
