CHIME/FRBPublic data

FRB 20220317D

One-off burst

Event ID
216164263
Arrival, 400 MHz
2022-03-17 11:45:32.721 UTC
Right ascension
232.138°
Declination
41.801°

Loading

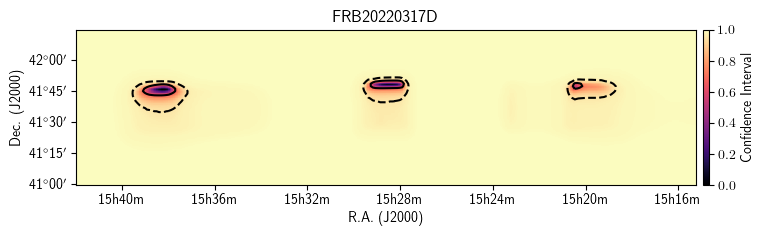

Localization

Loading

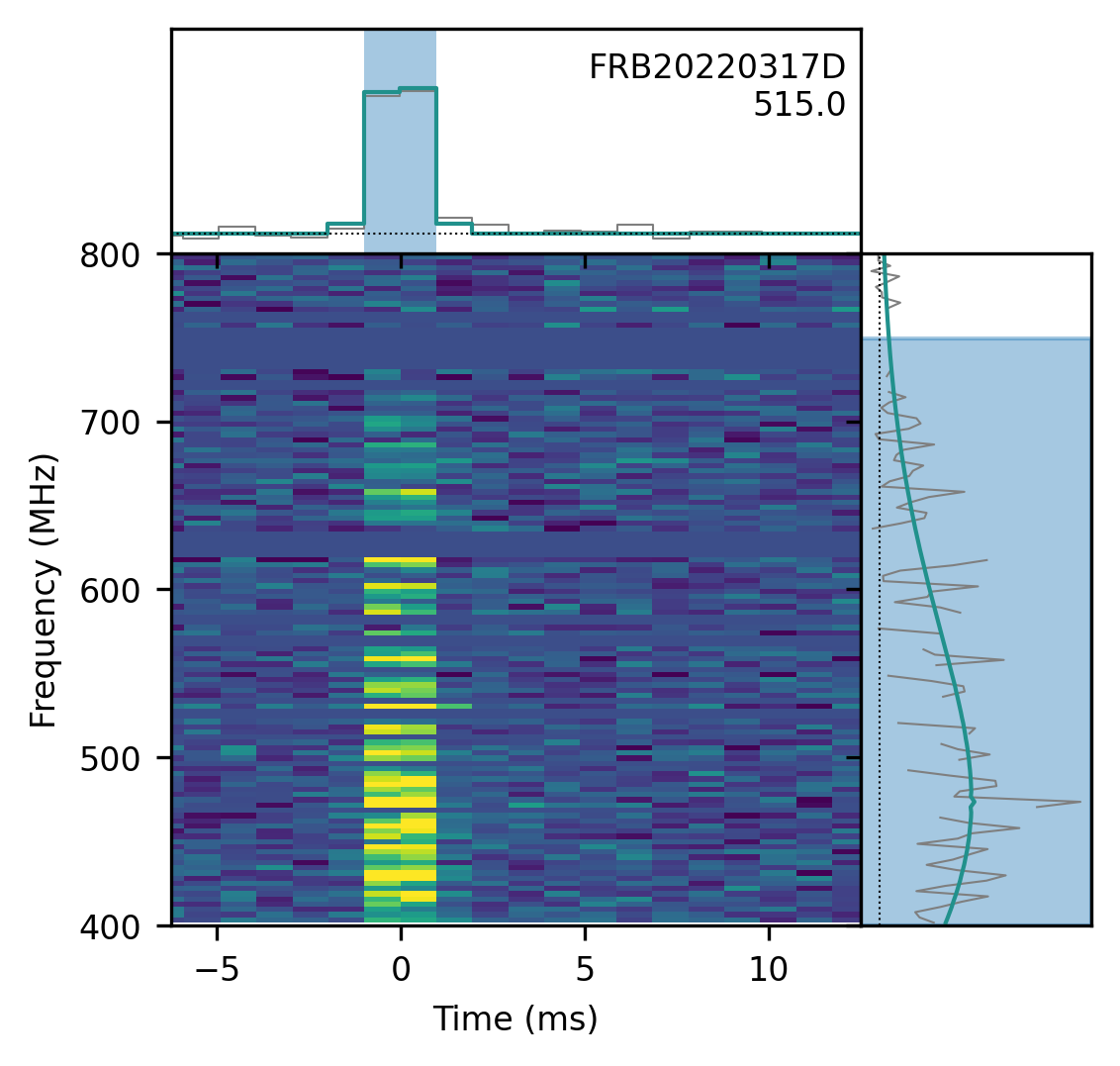

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
232.138± 0.134degrees
dec
41.801± 0.031degrees
gl
67.90degrees
gb
54.84degrees

Detection and dispersion

bonsai_snr
53.9
snr_fitb
67.4
bonsai_dm
514.8pc cm⁻³
dm_fitb
514.9788± 0.00115pc cm⁻³
dm_exc_ne2001
487.9pc cm⁻³
dm_exc_ymw16
490.5pc cm⁻³

Arrival time

mjd_400
59655.489962042986± 1.21 × 10⁻¹⁰MJD
mjd_inf
59655.489807619066± 3.67 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000377± 0.0000037s
scat_time
0.000000s

Flux and spectrum

flux
2.00± 0.42Jy
fluence
4.54± 1.01Jy ms
peak_freq
469.2MHz
low_freq
400.2MHz
high_freq
749.3MHz
sp_idx
3.34± 0.36
sp_run
-10.50± 0.71

Exposure and fluence thresholds

exp_up
42.49± 47.60hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
0.7Jy ms
low_ft_95
—
up_ft_95
1.2Jy ms

Fit quality

chi_sq
1842252.554
dof
1846794
flag_frac
0.304
