FRB 20220506A

One-off burst

Event ID
224263996
Arrival, 400 MHz
2022-05-06 14:19:51.501 UTC
Right ascension
318.294°
Declination
72.750°

Loading

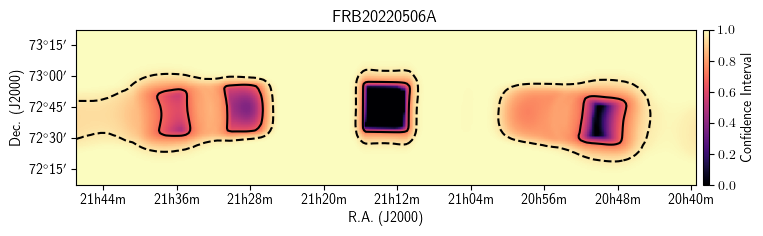

Localization

Loading

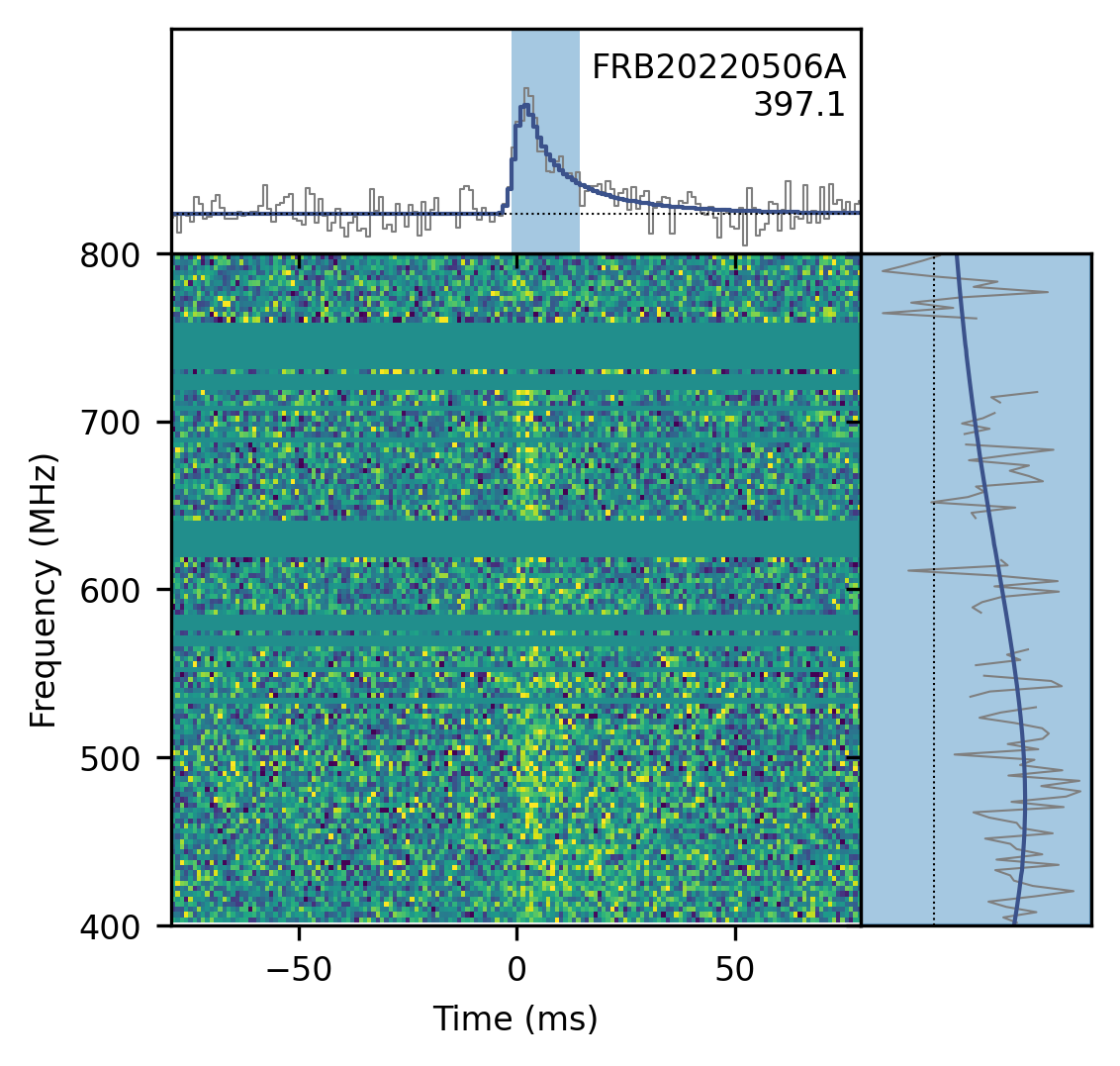

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
318.294± 0.189degrees
dec
72.750± 0.203degrees
gl
108.34degrees
gb
16.41degrees

Detection and dispersion

bonsai_snr
18.1
snr_fitb
26.7
bonsai_dm
397.1pc cm⁻³
dm_fitb
397.0822± 0.04084pc cm⁻³
dm_exc_ne2001
311.9pc cm⁻³
dm_exc_ymw16
298.0pc cm⁻³

Arrival time

mjd_400
59705.59712385603± 7.02 × 10⁻⁹MJD
mjd_inf
59705.59700478514± 1.41 × 10⁻⁸MJD

Burst shape

bc_width
0.01573s
width_fitb
0.001432± 0.0002199s
scat_time
0.029827± 0.0026732s

Flux and spectrum

flux
1.08± 0.70Jy
fluence
11.80± 6.29Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
-1.60± 0.71
sp_run
-2.13± 1.11

Exposure and fluence thresholds

exp_up
267.19± 144.66hour
exp_low
222.79± 95.42hour
low_ft_68
32.8Jy ms
up_ft_68
4.2Jy ms
low_ft_95
61.5Jy ms
up_ft_95
7.9Jy ms

Fit quality

chi_sq
1854027.506
dof
1854731
flag_frac
0.301
