FRB 20220506C

One-off burst

Event ID
224214696
Arrival, 400 MHz
2022-05-06 03:51:55.546 UTC
Right ascension
162.101°
Declination
12.412°

Loading

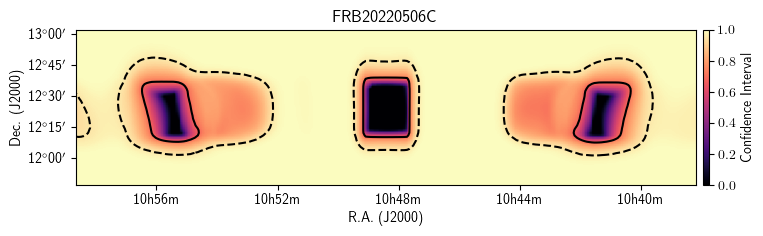

Localization

Loading

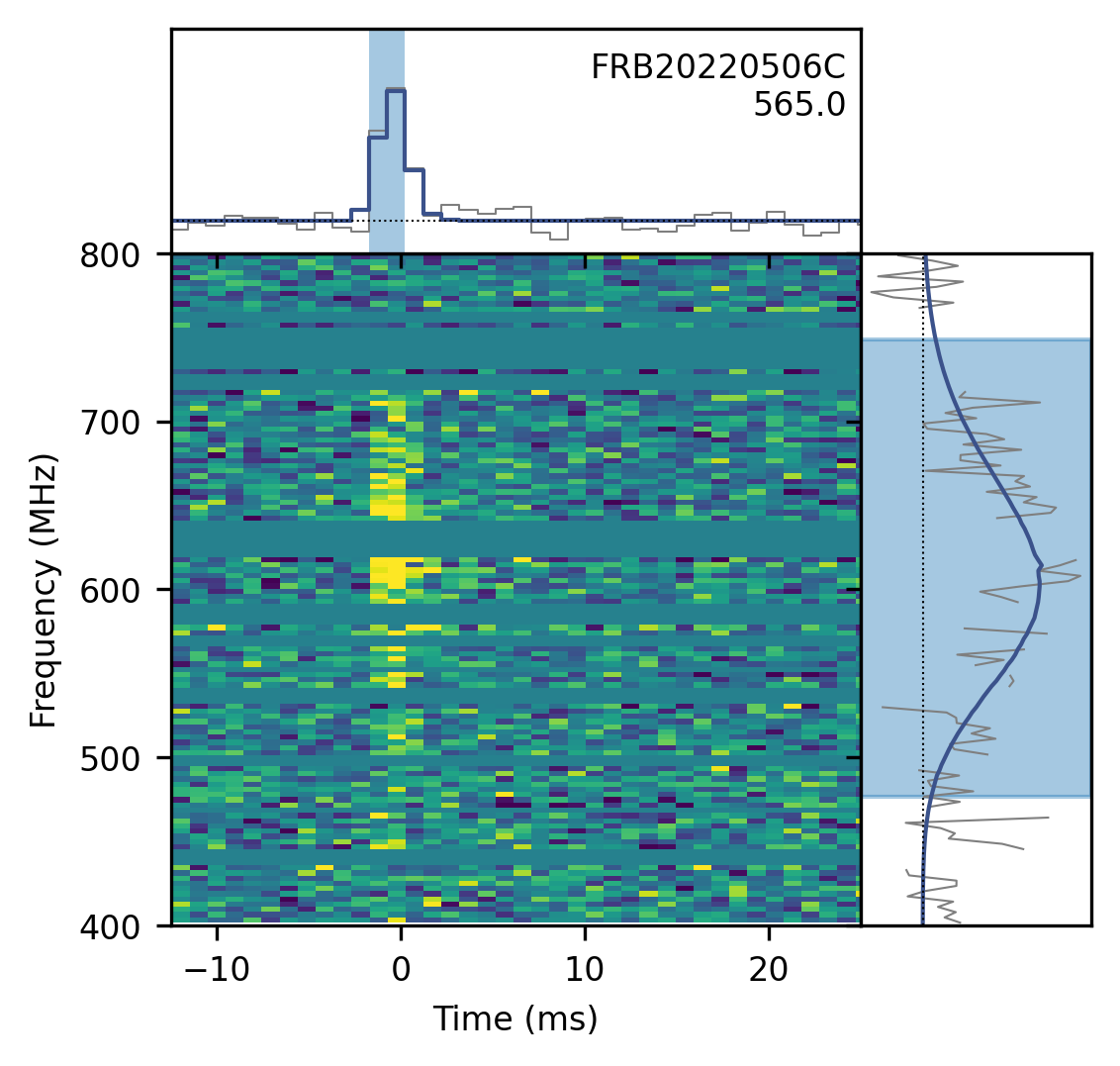

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
162.101± 0.187degrees
dec
12.412± 0.240degrees
gl
233.90degrees
gb
57.66degrees

Detection and dispersion

bonsai_snr
17.5
snr_fitb
24.6
bonsai_dm
564.1pc cm⁻³
dm_fitb
565.0201± 0.01967pc cm⁻³
dm_exc_ne2001
530.9pc cm⁻³
dm_exc_ymw16
541.1pc cm⁻³

Arrival time

mjd_400
59705.16105956055± 3.45 × 10⁻⁹MJD
mjd_inf
59705.16089013101± 6.83 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000618± 0.0000324s
scat_time
0.001840± 0.0000981s

Flux and spectrum

flux
1.97± 0.50Jy
fluence
4.44± 0.88Jy ms
peak_freq
597.4MHz
low_freq
476.7MHz
high_freq
748.6MHz
sp_idx
36.23± 4.85
sp_run
-45.22± 5.74

Exposure and fluence thresholds

exp_up
77.66± 42.04hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
3.4Jy ms
low_ft_95
—
up_ft_95
5.7Jy ms

Fit quality

chi_sq
1757255.317
dof
1757855
flag_frac
0.338
