FRB 20220509D

One-off burst

Event ID
224615354
Arrival, 400 MHz
2022-05-09 03:05:13.159 UTC
Right ascension
152.793°
Declination
11.440°

Loading

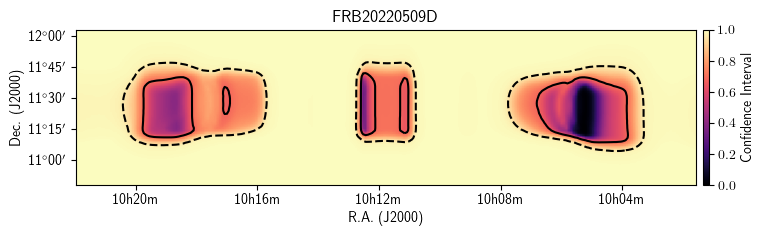

Localization

Loading

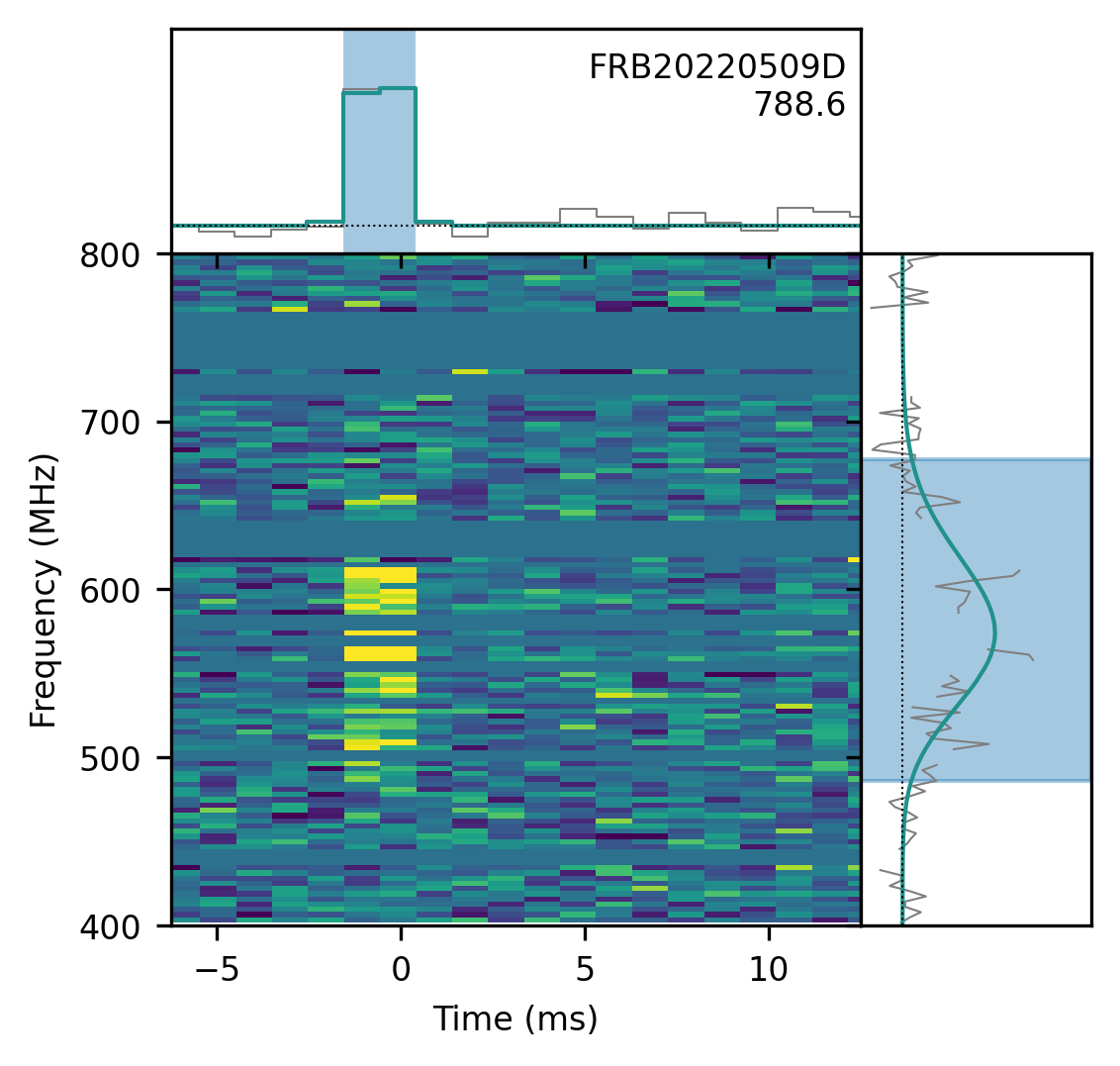

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
152.793± 0.034degrees
dec
11.440± 0.222degrees
gl
227.63degrees
gb
49.29degrees

Detection and dispersion

bonsai_snr
15.5
snr_fitb
33.9
bonsai_dm
788.1pc cm⁻³
dm_fitb
788.5919± 0.00454pc cm⁻³
dm_exc_ne2001
750.6pc cm⁻³
dm_exc_ymw16
760.4pc cm⁻³

Arrival time

mjd_400
59708.12862452085± 7.01 × 10⁻¹⁰MJD
mjd_inf
59708.12838805003± 1.53 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000264± 0.0000036s
scat_time
0.000000s

Flux and spectrum

flux
1.15± 0.37Jy
fluence
1.89± 0.35Jy ms
peak_freq
573.7MHz
low_freq
486.1MHz
high_freq
677.1MHz
sp_idx
60.39± 5.04
sp_run
-83.84± 6.79

Exposure and fluence thresholds

exp_up
78.59± 41.77hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
0.5Jy ms
low_ft_95
—
up_ft_95
0.9Jy ms

Fit quality

chi_sq
1748609.880
dof
1749756
flag_frac
0.341
