CHIME/FRBPublic data

FRB 20220513A

One-off burst

Event ID
225327827
Arrival, 400 MHz
2022-05-13 07:40:48.537 UTC
Right ascension
225.603°
Declination
39.665°

Loading

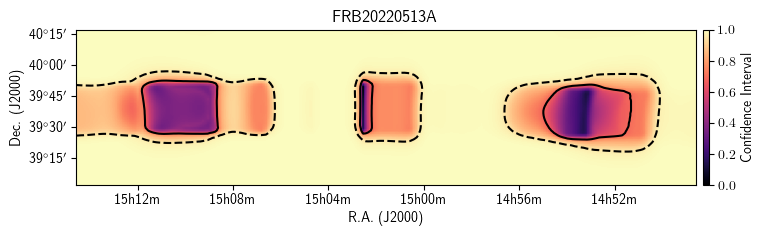

Localization

Loading

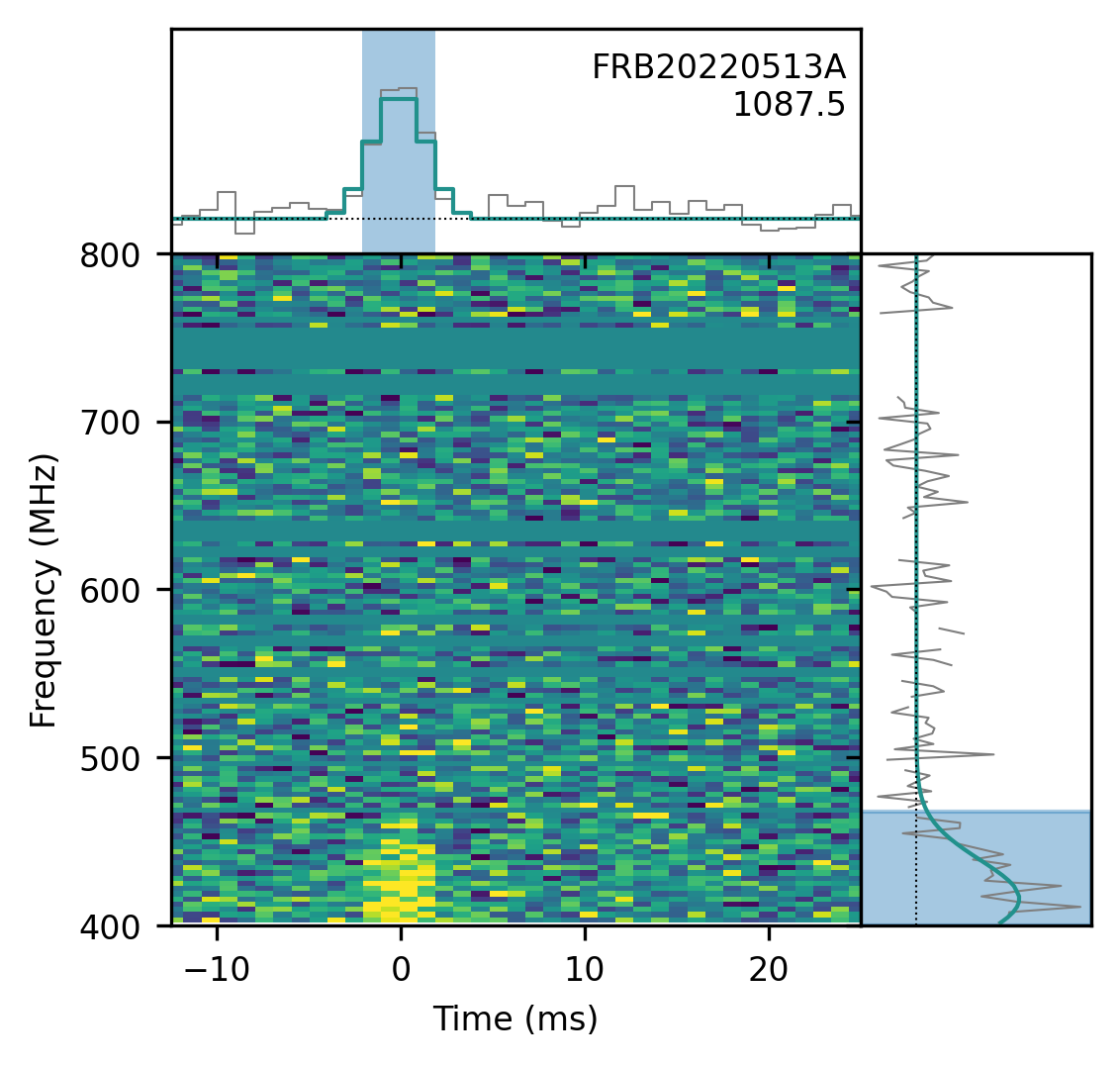

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
225.603± 0.051degrees
dec
39.665± 0.217degrees
gl
66.17degrees
gb
60.15degrees

Detection and dispersion

bonsai_snr
10.5
snr_fitb
17.7
bonsai_dm
1086.6pc cm⁻³
dm_fitb
1087.4736± 0.04474pc cm⁻³
dm_exc_ne2001
1063.1pc cm⁻³
dm_exc_ymw16
1064.4pc cm⁻³

Arrival time

mjd_400
59712.320006212845± 1.47 × 10⁻⁹MJD
mjd_inf
59712.319680118± 1.35 × 10⁻⁸MJD

Burst shape

bc_width
0.00393s
width_fitb
0.001064± 0.0000491s
scat_time
0.000000s

Flux and spectrum

flux
0.27± 0.24Jy
fluence
0.68± 0.65Jy ms
peak_freq
415.1MHz
low_freq
400.2MHz
high_freq
467.6MHz
sp_idx
11.91± 5.44
sp_run
-162.53± 42.81

Exposure and fluence thresholds

exp_up
91.79± 54.65hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
0.6Jy ms
low_ft_95
—
up_ft_95
1.3Jy ms

Fit quality

chi_sq
1946118.144
dof
1946424
flag_frac
0.267
