CHIME/FRBPublic data
Repeater
FRB20180916B
Event ID
225968998
Arrival, 400 MHz
2022-05-17 18:30:24.283 UTC
Right ascension
32.925°
Declination
65.724°

Loading

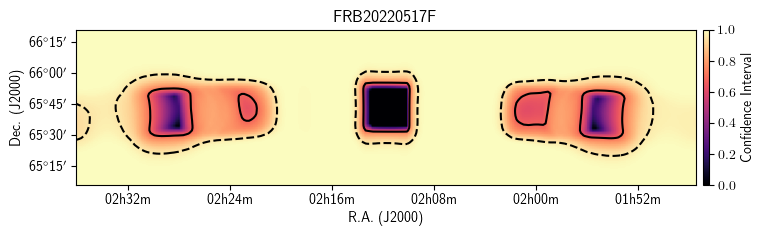

Localization

Loading

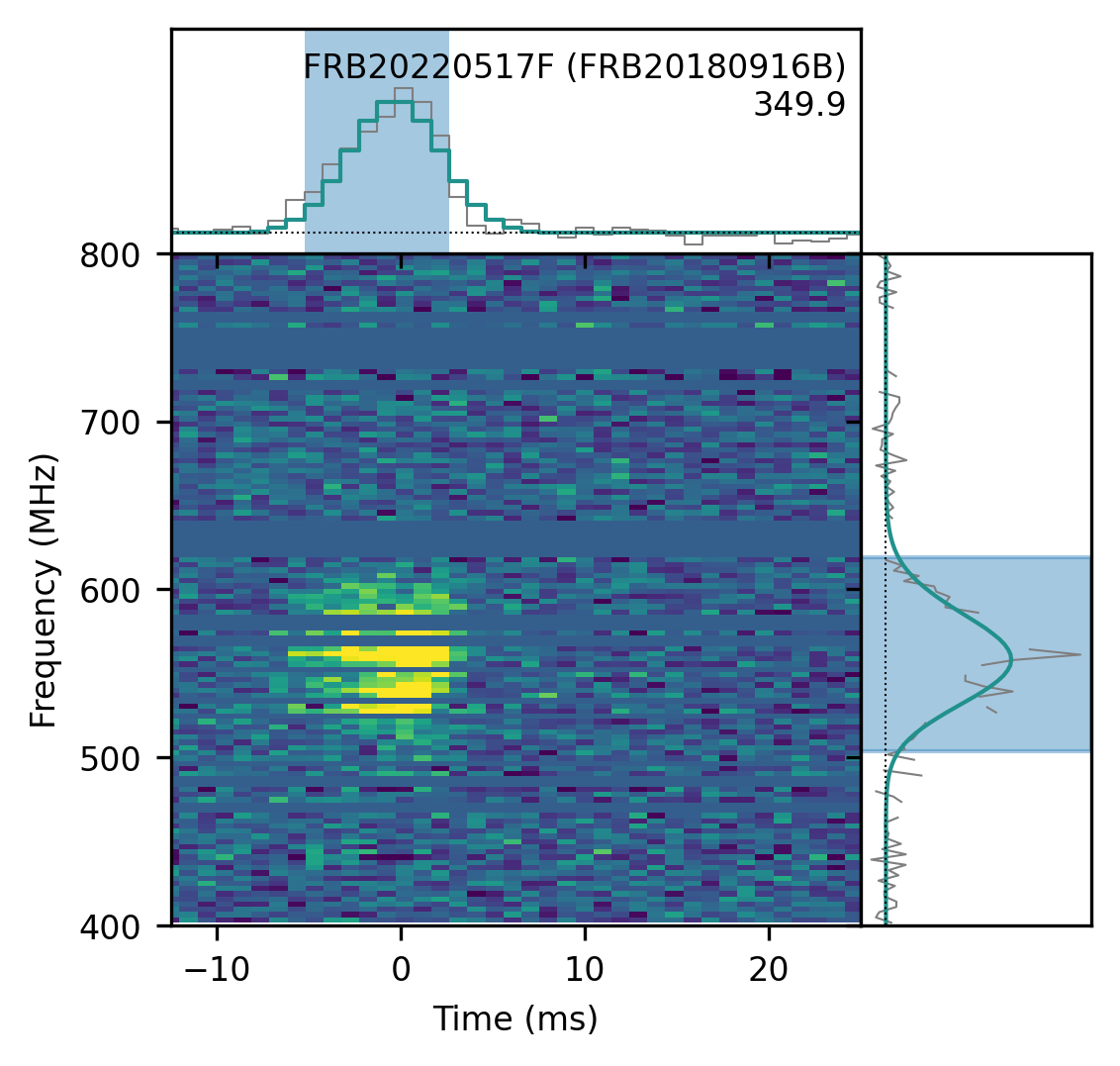

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
32.925± 0.187degrees
dec
65.724± 0.198degrees
gl
131.06degrees
gb
4.13degrees

Detection and dispersion

bonsai_snr
17.3
snr_fitb
54.0
bonsai_dm
349.8pc cm⁻³
dm_fitb
349.8646± 0.06920pc cm⁻³
dm_exc_ne2001
157.1pc cm⁻³
dm_exc_ymw16
36.1pc cm⁻³

Arrival time

mjd_400
59716.77111439094± 9.93 × 10⁻⁹MJD
mjd_inf
59716.77100947893± 2.30 × 10⁻⁸MJD

Burst shape

bc_width
0.00786s
width_fitb
0.002470± 0.0000707s
scat_time
0.000000s

Flux and spectrum

flux
1.31± 0.42Jy
fluence
8.68± 1.58Jy ms
peak_freq
558.2MHz
low_freq
503.5MHz
high_freq
619.0MHz
sp_idx
143.69± 7.11
sp_run
-215.87± 10.42

Exposure and fluence thresholds

exp_up
195.46± 105.30hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
4.5Jy ms
low_ft_95
0.0Jy ms
up_ft_95
10.0Jy ms

Fit quality

chi_sq
1712014.780
dof
1714926
flag_frac
0.354
