CHIME/FRBPublic data

FRB 20220602C

One-off burst

Event ID
228308588
Arrival, 400 MHz
2022-06-02 09:06:20.207 UTC
Right ascension
265.433°
Declination
68.825°

Loading

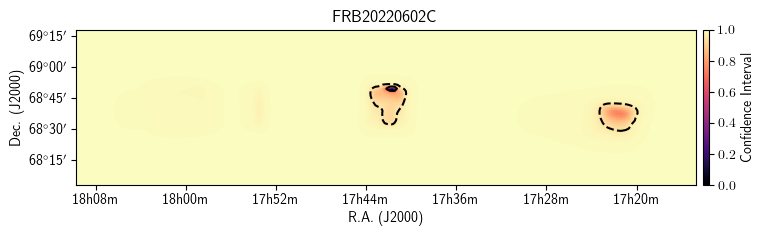

Localization

Loading

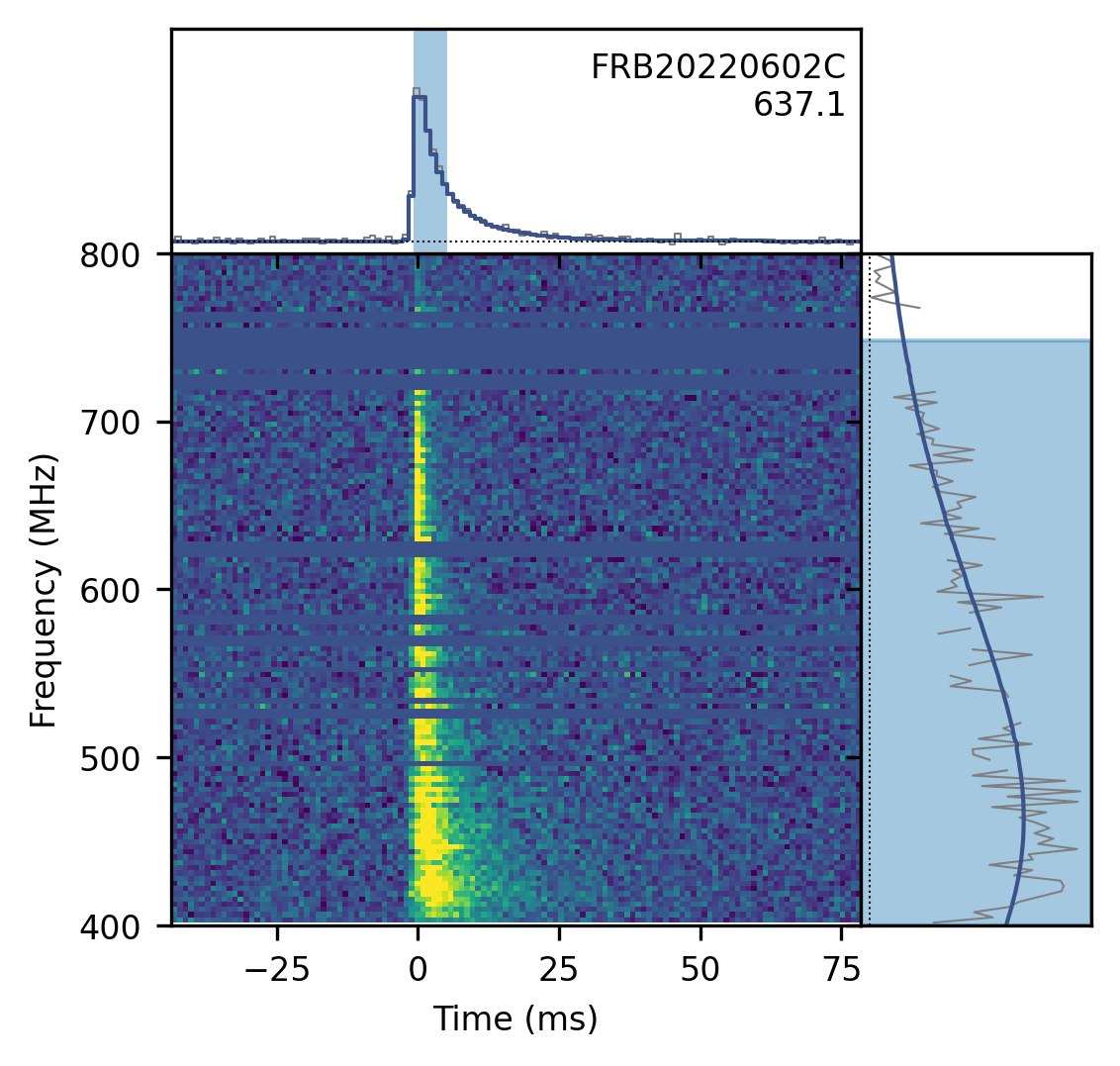

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
265.433± 0.042degrees
dec
68.825± 0.018degrees
gl
99.11degrees
gb
31.43degrees

Detection and dispersion

bonsai_snr
90.4
snr_fitb
146.5
bonsai_dm
636.9pc cm⁻³
dm_fitb
637.1280± 0.00255pc cm⁻³
dm_exc_ne2001
590.6pc cm⁻³
dm_exc_ymw16
596.1pc cm⁻³

Arrival time

mjd_400
59732.37940054964± 4.19 × 10⁻¹⁰MJD
mjd_inf
59732.3792094975± 8.72 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00590s
width_fitb
0.000390± 0.0000168s
scat_time
0.012831± 0.0001985s

Flux and spectrum

flux
5.19± 1.62Jy
fluence
40.66± 12.45Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
748.0MHz
sp_idx
-1.59± 0.13
sp_run
-3.34± 0.23

Exposure and fluence thresholds

exp_up
251.82± 61.50hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.5Jy ms
low_ft_95
—
up_ft_95
4.3Jy ms

Fit quality

chi_sq
1879113.243
dof
1900577
flag_frac
0.284
