CHIME/FRBPublic data

FRB 20220612B

One-off burst

Event ID
230046102
Arrival, 400 MHz
2022-06-12 17:21:54.200 UTC
Right ascension
40.315°
Declination
46.504°

Loading

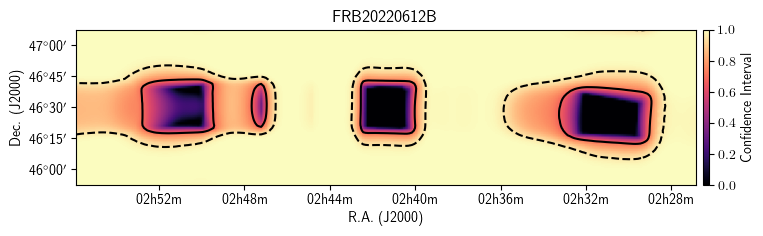

Localization

Loading

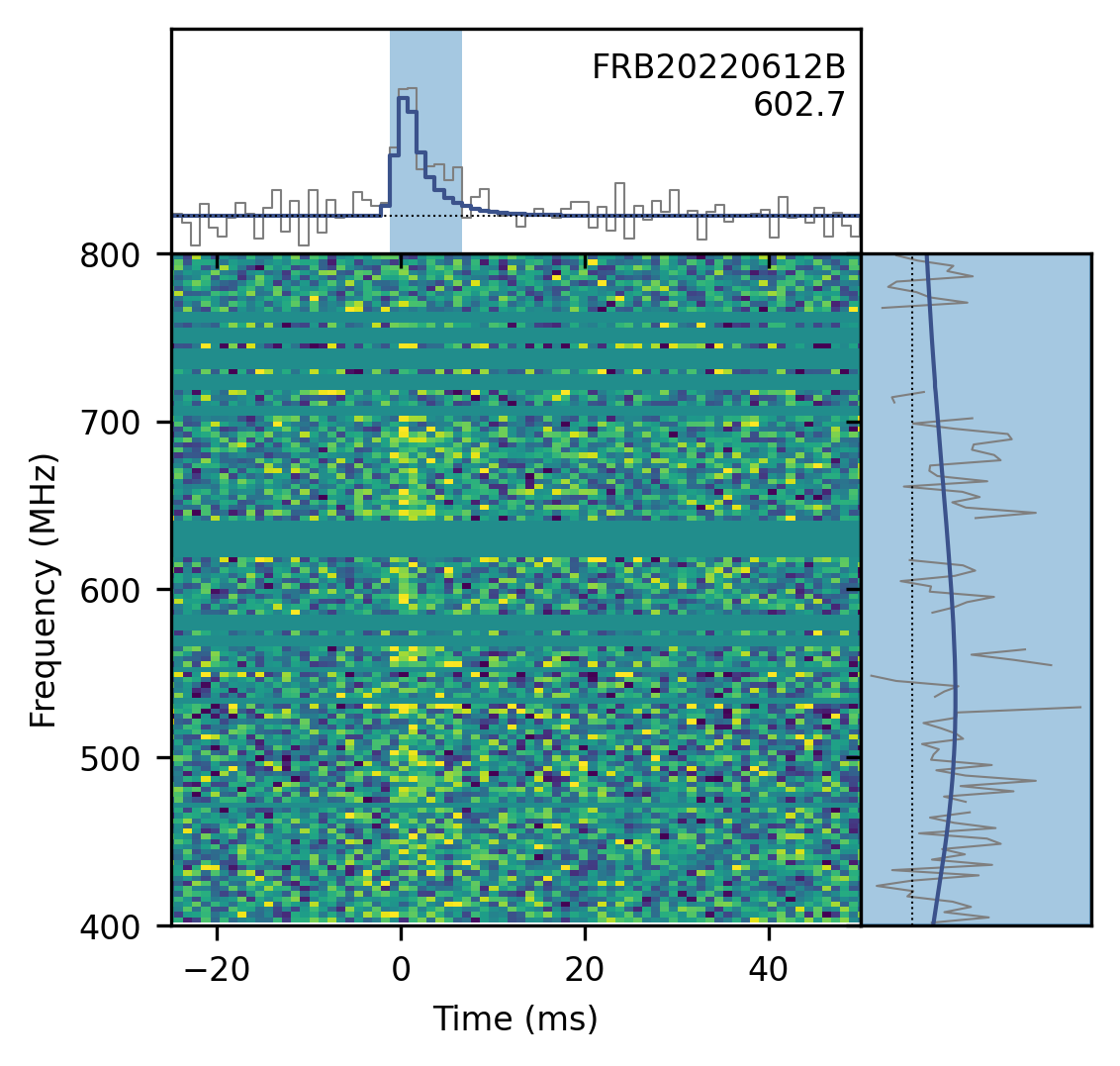

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
40.315± 0.225degrees
dec
46.504± 0.215degrees
gl
141.88degrees
gb
-12.29degrees

Detection and dispersion

bonsai_snr
11.9
snr_fitb
14.7
bonsai_dm
602.1pc cm⁻³
dm_fitb
602.6806± 0.03217pc cm⁻³
dm_exc_ne2001
489.9pc cm⁻³
dm_exc_ymw16
475.4pc cm⁻³

Arrival time

mjd_400
59742.72354398684± 5.92 × 10⁻⁹MJD
mjd_inf
59742.723363264246± 1.13 × 10⁻⁸MJD

Burst shape

bc_width
0.00786s
width_fitb
0.000745± 0.0001300s
scat_time
0.006961± 0.0016715s

Flux and spectrum

flux
0.58± 0.27Jy
fluence
3.62± 1.37Jy ms
peak_freq
509.2MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
2.67± 1.64
sp_run
-5.55± 2.20

Exposure and fluence thresholds

exp_up
109.74± 63.49hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.1Jy ms
low_ft_95
—
up_ft_95
3.8Jy ms

Fit quality

chi_sq
1871370.686
dof
1871579
flag_frac
0.295
