FRB 20220615D

One-off burst

Event ID
230546495
Arrival, 400 MHz
2022-06-15 18:40:30.658 UTC
Right ascension
63.810°
Declination
71.724°

Loading

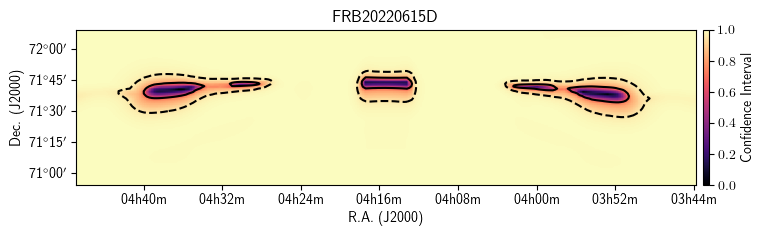

Localization

Loading

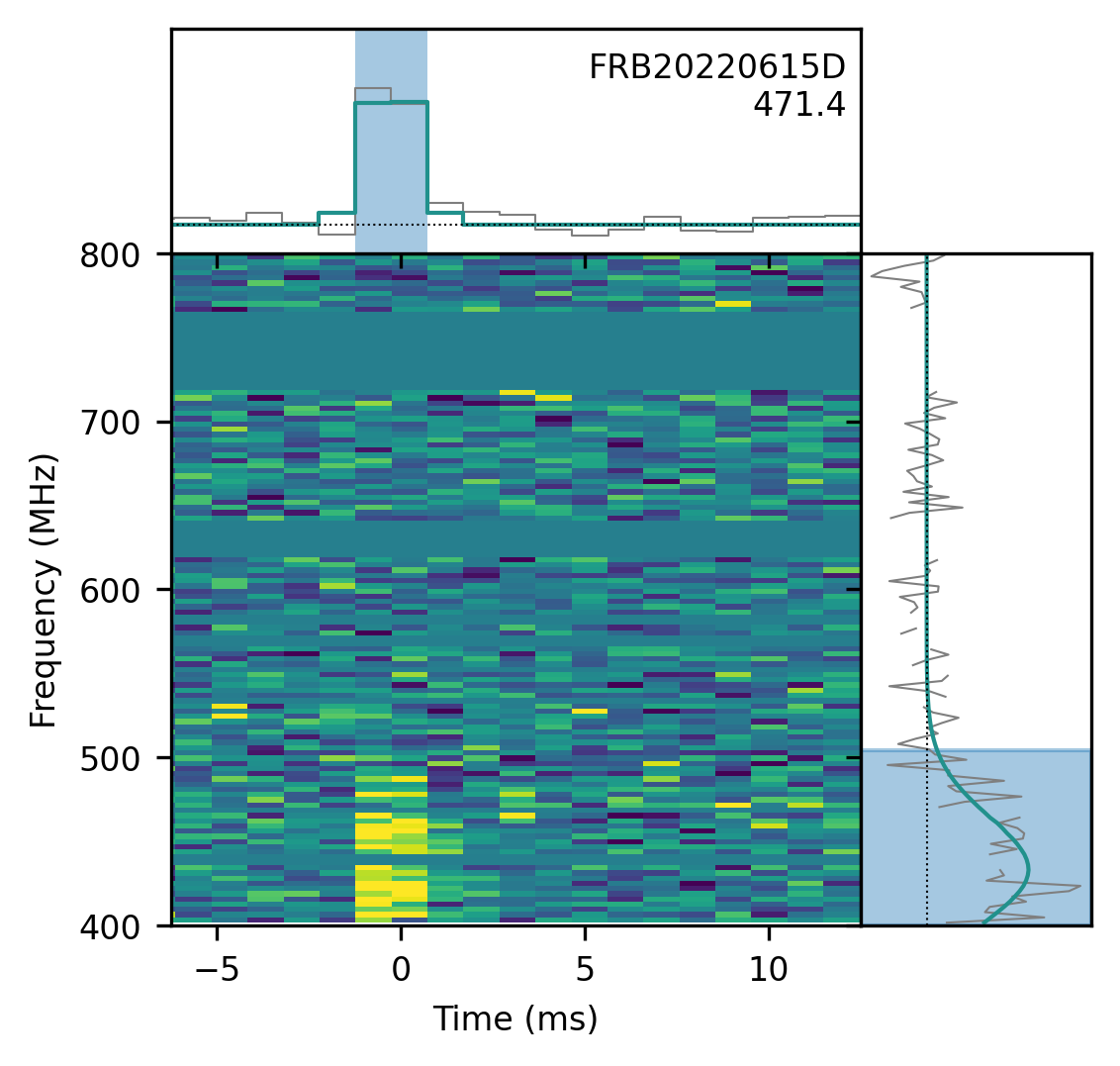

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
63.810± 0.201degrees
dec
71.724± 0.046degrees
gl
137.53degrees
gb
14.90degrees

Detection and dispersion

bonsai_snr
12.1
snr_fitb
20.8
bonsai_dm
470.3pc cm⁻³
dm_fitb
471.3794± 0.00860pc cm⁻³
dm_exc_ne2001
375.0pc cm⁻³
dm_exc_ymw16
347.0pc cm⁻³

Arrival time

mjd_400
59745.77813261932± 4.28 × 10⁻¹⁰MJD
mjd_inf
59745.77799126932± 2.61 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000391± 0.0000118s
scat_time
0.000000s

Flux and spectrum

flux
0.74± 0.31Jy
fluence
1.46± 0.76Jy ms
peak_freq
432.5MHz
low_freq
400.2MHz
high_freq
504.1MHz
sp_idx
15.27± 3.44
sp_run
-98.24± 17.29

Exposure and fluence thresholds

exp_up
173.75± 136.99hour
exp_low
101.02± 80.66hour
low_ft_68
5.3Jy ms
up_ft_68
0.5Jy ms
low_ft_95
9.9Jy ms
up_ft_95
1.0Jy ms

Fit quality

chi_sq
1745763.945
dof
1746192
flag_frac
0.342
