CHIME/FRBPublic data

FRB 20220615F

One-off burst

Event ID
230558078
Arrival, 400 MHz
2022-06-15 22:25:34.360 UTC
Right ascension
117.944°
Declination
78.524°

Loading

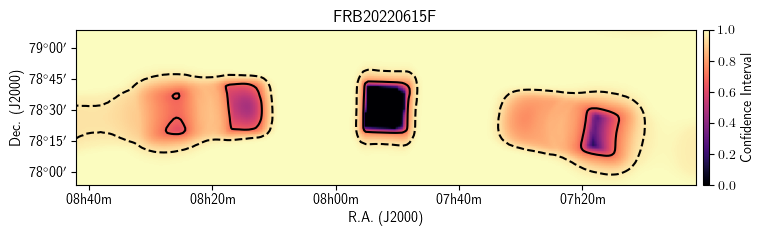

Localization

Loading

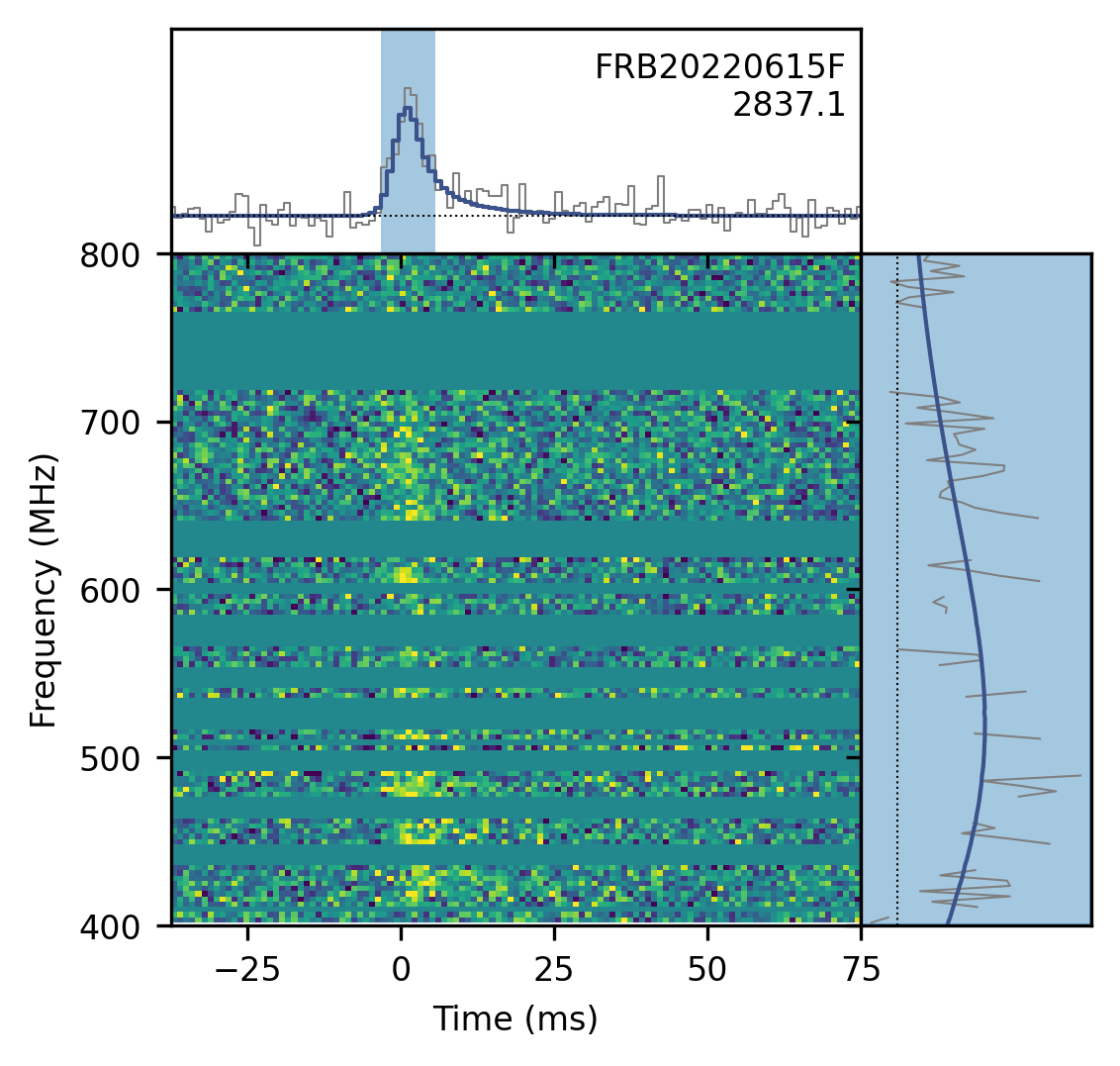

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
117.944± 0.187degrees
dec
78.524± 0.208degrees
gl
135.69degrees
gb
29.53degrees

Detection and dispersion

bonsai_snr
21.0
snr_fitb
23.0
bonsai_dm
2834.3pc cm⁻³
dm_fitb
2837.0826± 0.02984pc cm⁻³
dm_exc_ne2001
2784.7pc cm⁻³
dm_exc_ymw16
2788.7pc cm⁻³

Arrival time

mjd_400
59745.93442546706± 4.51 × 10⁻⁹MJD
mjd_inf
59745.93357472637± 1.00 × 10⁻⁸MJD

Burst shape

bc_width
0.00885s
width_fitb
0.001463± 0.0001578s
scat_time
0.011137± 0.0019456s

Flux and spectrum

flux
0.92± 0.35Jy
fluence
7.86± 1.86Jy ms
peak_freq
433.0MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
0.79± 0.83
sp_run
-4.98± 1.35

Exposure and fluence thresholds

exp_up
368.23± 185.18hour
exp_low
429.92± 188.03hour
low_ft_68
9.9Jy ms
up_ft_68
2.6Jy ms
low_ft_95
16.8Jy ms
up_ft_95
4.6Jy ms

Fit quality

chi_sq
1472210.747
dof
1472735
flag_frac
0.445
