FRB 20220621B

One-off burst

Event ID
231708054
Arrival, 400 MHz
2022-06-21 15:55:20.761 UTC
Right ascension
25.683°
Declination
80.589°

Loading

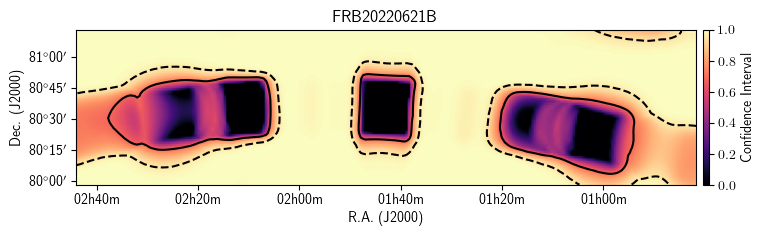

Localization

Loading

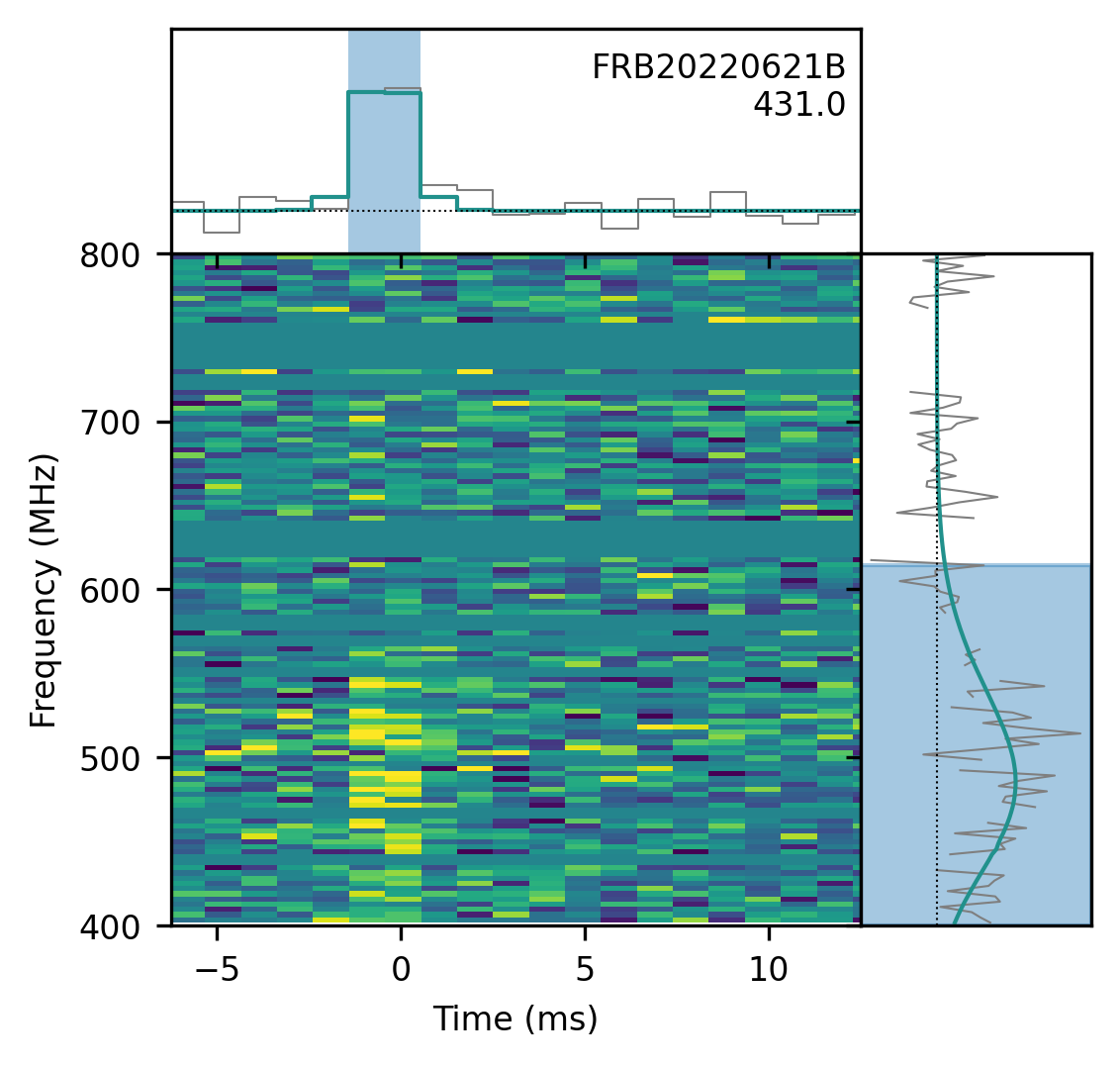

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
25.683± 0.228degrees
dec
80.589± 0.272degrees
gl
125.12degrees
gb
17.94degrees

Detection and dispersion

bonsai_snr
10.8
snr_fitb
15.6
bonsai_dm
430.7pc cm⁻³
dm_fitb
430.9839± 0.01441pc cm⁻³
dm_exc_ne2001
347.4pc cm⁻³
dm_exc_ymw16
329.5pc cm⁻³

Arrival time

mjd_400
59751.66343473407± 1.45 × 10⁻⁹MJD
mjd_inf
59751.66330549724± 4.56 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000482± 0.0000343s
scat_time
0.000000s

Flux and spectrum

flux
0.90± 0.39Jy
fluence
1.31± 0.61Jy ms
peak_freq
484.5MHz
low_freq
400.2MHz
high_freq
614.6MHz
sp_idx
15.54± 3.47
sp_run
-40.68± 8.05

Exposure and fluence thresholds

exp_up
453.49± 253.87hour
exp_low
428.10± 247.54hour
low_ft_68
3.1Jy ms
up_ft_68
0.9Jy ms
low_ft_95
6.4Jy ms
up_ft_95
1.9Jy ms

Fit quality

chi_sq
1741256.254
dof
1741494
flag_frac
0.344
