CHIME/FRBPublic data

FRB 20220622B

One-off burst

Event ID
231901225
Arrival, 400 MHz
2022-06-22 18:38:37.586 UTC
Right ascension
69.760°
Declination
26.577°

Loading

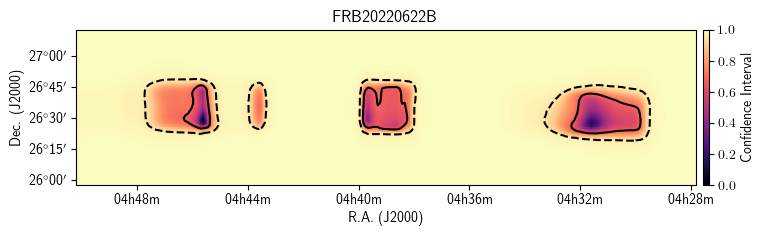

Localization

Loading

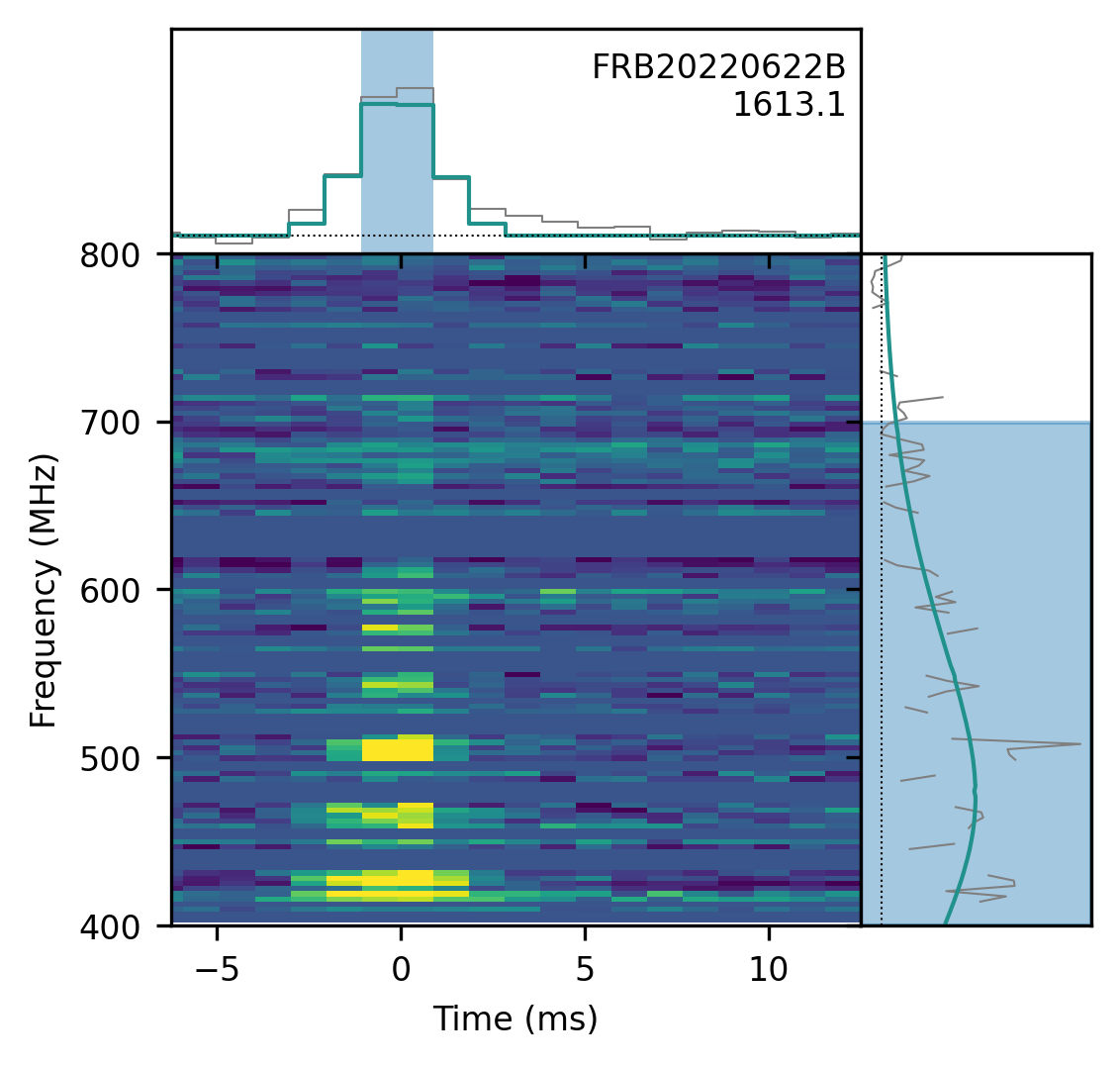

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
69.760± 0.179degrees
dec
26.577± 0.171degrees
gl
173.28degrees
gb
-13.34degrees

Detection and dispersion

bonsai_snr
36.3
snr_fitb
57.8
bonsai_dm
1611.4pc cm⁻³
dm_fitb
1613.1095± 0.00122pc cm⁻³
dm_exc_ne2001
1504.6pc cm⁻³
dm_exc_ymw16
1472.4pc cm⁻³

Arrival time

mjd_400
59752.7768239113± 9.66 × 10⁻¹¹MJD
mjd_inf
59752.77634019685± 3.78 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000516± 0.0000024s
scat_time
0.000000s

Flux and spectrum

flux
3.61± 0.90Jy
fluence
12.67± 2.68Jy ms
peak_freq
427.7MHz
low_freq
400.2MHz
high_freq
698.8MHz
sp_idx
1.27± 0.42
sp_run
-9.56± 0.83

Exposure and fluence thresholds

exp_up
96.92± 42.88hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.2Jy ms
low_ft_95
—
up_ft_95
3.7Jy ms

Fit quality

chi_sq
522703.773
dof
526042
flag_frac
0.528
