CHIME/FRBPublic data

FRB 20220623C

One-off burst

Event ID
232086101
Arrival, 400 MHz
2022-06-23 19:04:05.514 UTC
Right ascension
77.922°
Declination
45.798°

Loading

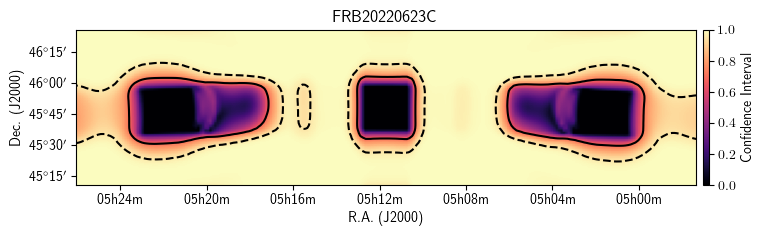

Localization

Loading

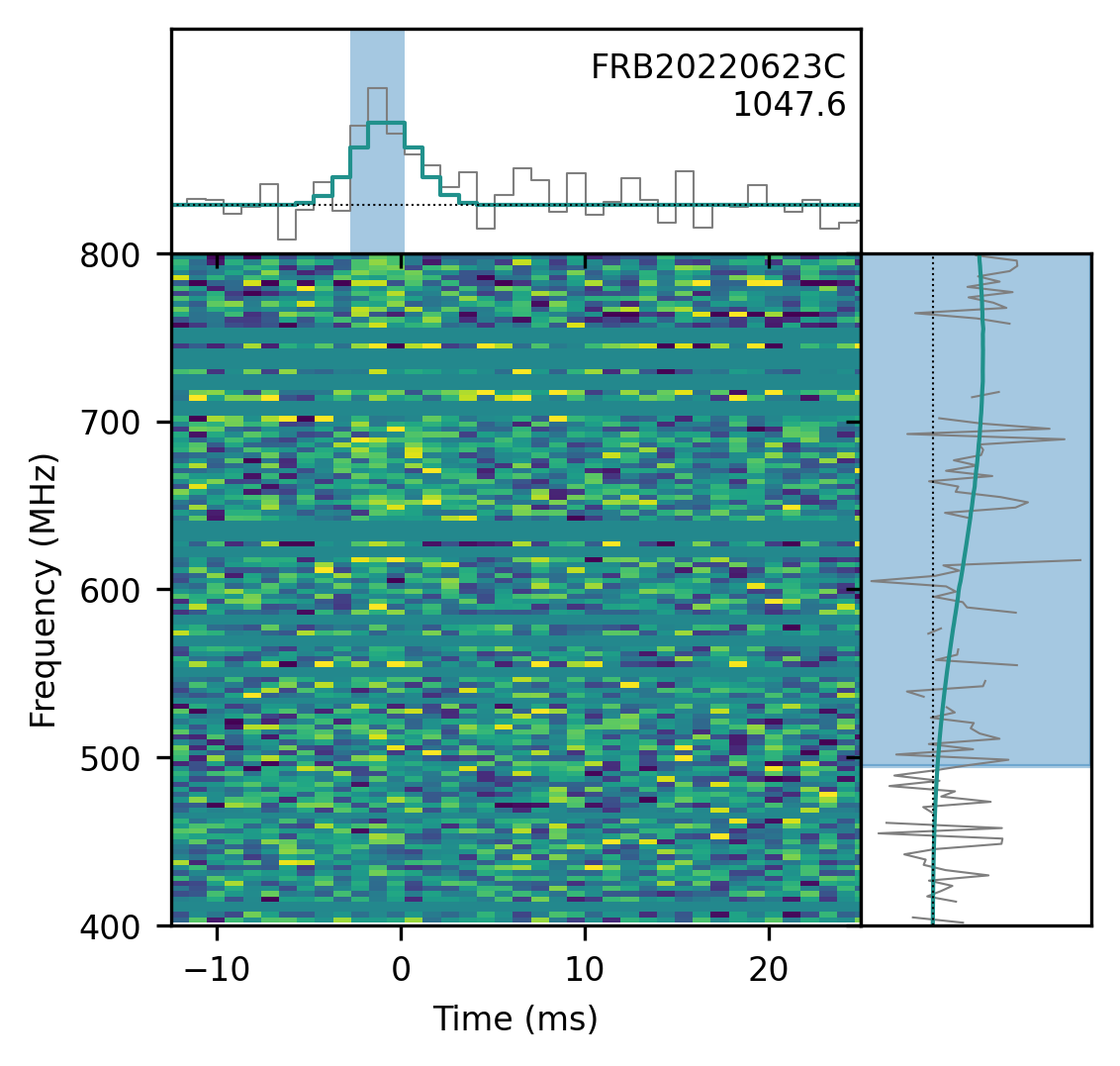

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
77.922± 0.236degrees
dec
45.798± 0.252degrees
gl
162.24degrees
gb
3.74degrees

Detection and dispersion

bonsai_snr
8.9
snr_fitb
10.5
bonsai_dm
1046.9pc cm⁻³
dm_fitb
1047.6183± 0.11512pc cm⁻³
dm_exc_ne2001
871.6pc cm⁻³
dm_exc_ymw16
781.2pc cm⁻³

Arrival time

mjd_400
59753.794508262625± 2.31 × 10⁻⁸MJD
mjd_inf
59753.79419411896± 4.15 × 10⁻⁸MJD

Burst shape

bc_width
0.00295s
width_fitb
0.001574± 0.0002021s
scat_time
0.000000s

Flux and spectrum

flux
0.33± 0.19Jy
fluence
3.02± 1.06Jy ms
peak_freq
741.2MHz
low_freq
494.6MHz
high_freq
800.2MHz
sp_idx
17.35± 8.21
sp_run
-14.07± 7.68

Exposure and fluence thresholds

exp_up
105.41± 63.87hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
3.2Jy ms
low_ft_95
—
up_ft_95
5.7Jy ms

Fit quality

chi_sq
1829031.090
dof
1829136
flag_frac
0.311
