CHIME/FRBPublic data

FRB 20220630A

One-off burst

Event ID
233212425
Arrival, 400 MHz
2022-06-30 13:39:50.715 UTC
Right ascension
2.841°
Declination
16.415°

Loading

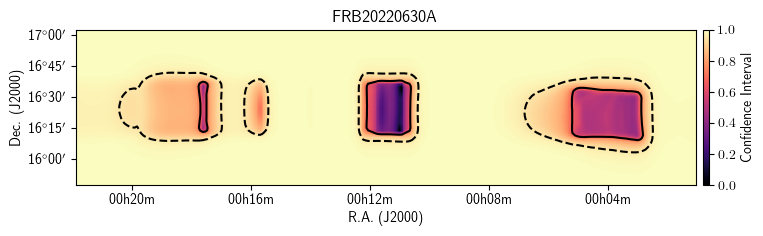

Localization

Loading

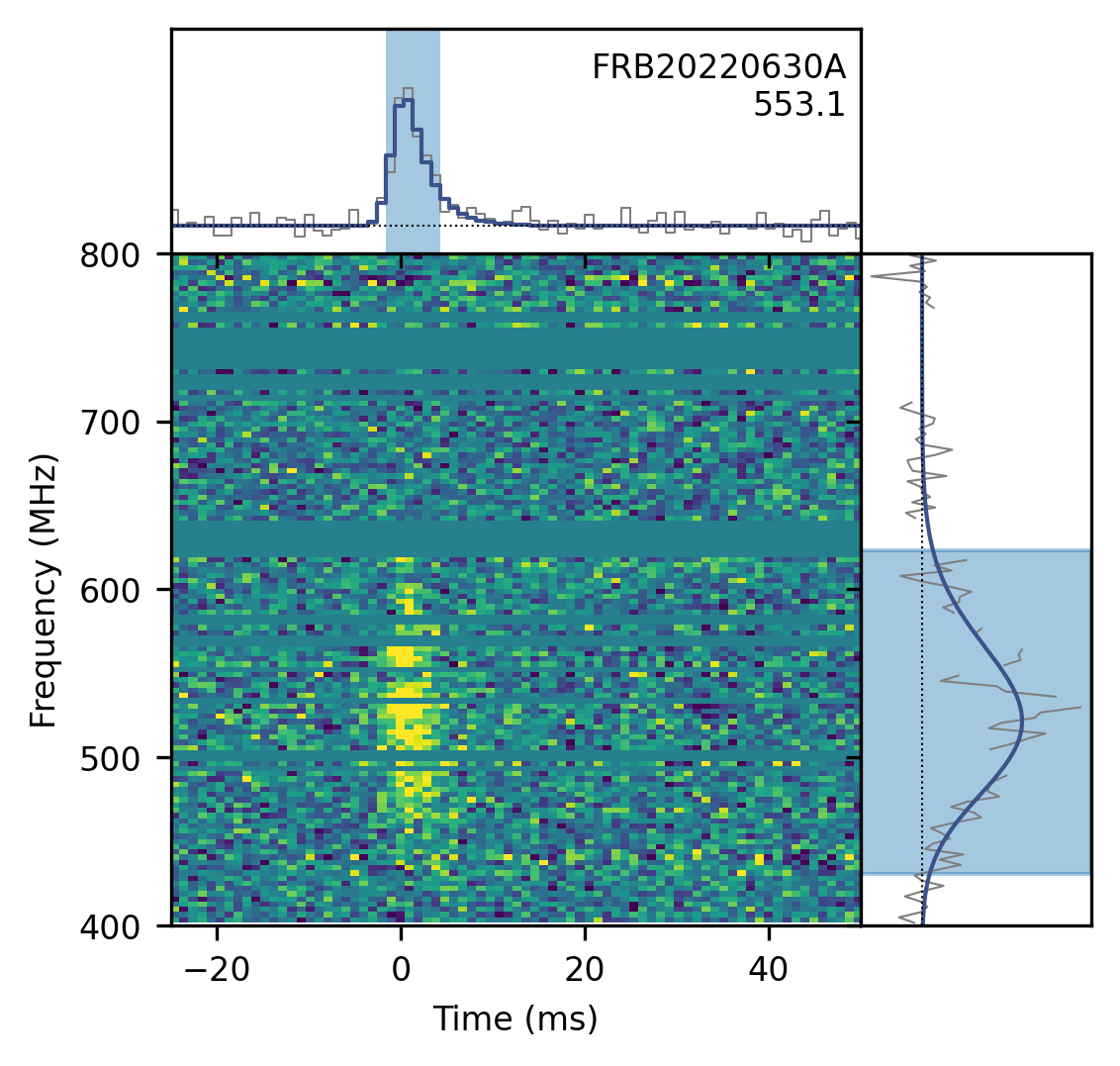

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
2.841± 0.179degrees
dec
16.415± 0.218degrees
gl
109.19degrees
gb
-45.38degrees

Detection and dispersion

bonsai_snr
16.7
snr_fitb
33.8
bonsai_dm
552.8pc cm⁻³
dm_fitb
553.0978± 0.03658pc cm⁻³
dm_exc_ne2001
516.4pc cm⁻³
dm_exc_ymw16
524.5pc cm⁻³

Arrival time

mjd_400
59760.56933697576± 5.11 × 10⁻⁹MJD
mjd_inf
59760.56917112129± 1.21 × 10⁻⁸MJD

Burst shape

bc_width
0.00590s
width_fitb
0.001056± 0.0001096s
scat_time
0.006181± 0.0007315s

Flux and spectrum

flux
1.00± 0.29Jy
fluence
4.29± 0.85Jy ms
peak_freq
517.9MHz
low_freq
430.5MHz
high_freq
623.0MHz
sp_idx
34.75± 2.83
sp_run
-67.39± 5.22

Exposure and fluence thresholds

exp_up
87.20± 43.06hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.6Jy ms
low_ft_95
—
up_ft_95
2.7Jy ms

Fit quality

chi_sq
1758987.247
dof
1760123
flag_frac
0.337
