FRB 20220707B

One-off burst

Event ID
234583681
Arrival, 400 MHz
2022-07-07 14:17:54.327 UTC
Right ascension
18.511°
Declination
72.723°

Loading

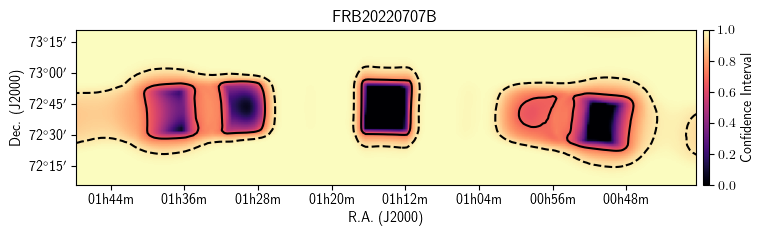

Localization

Loading

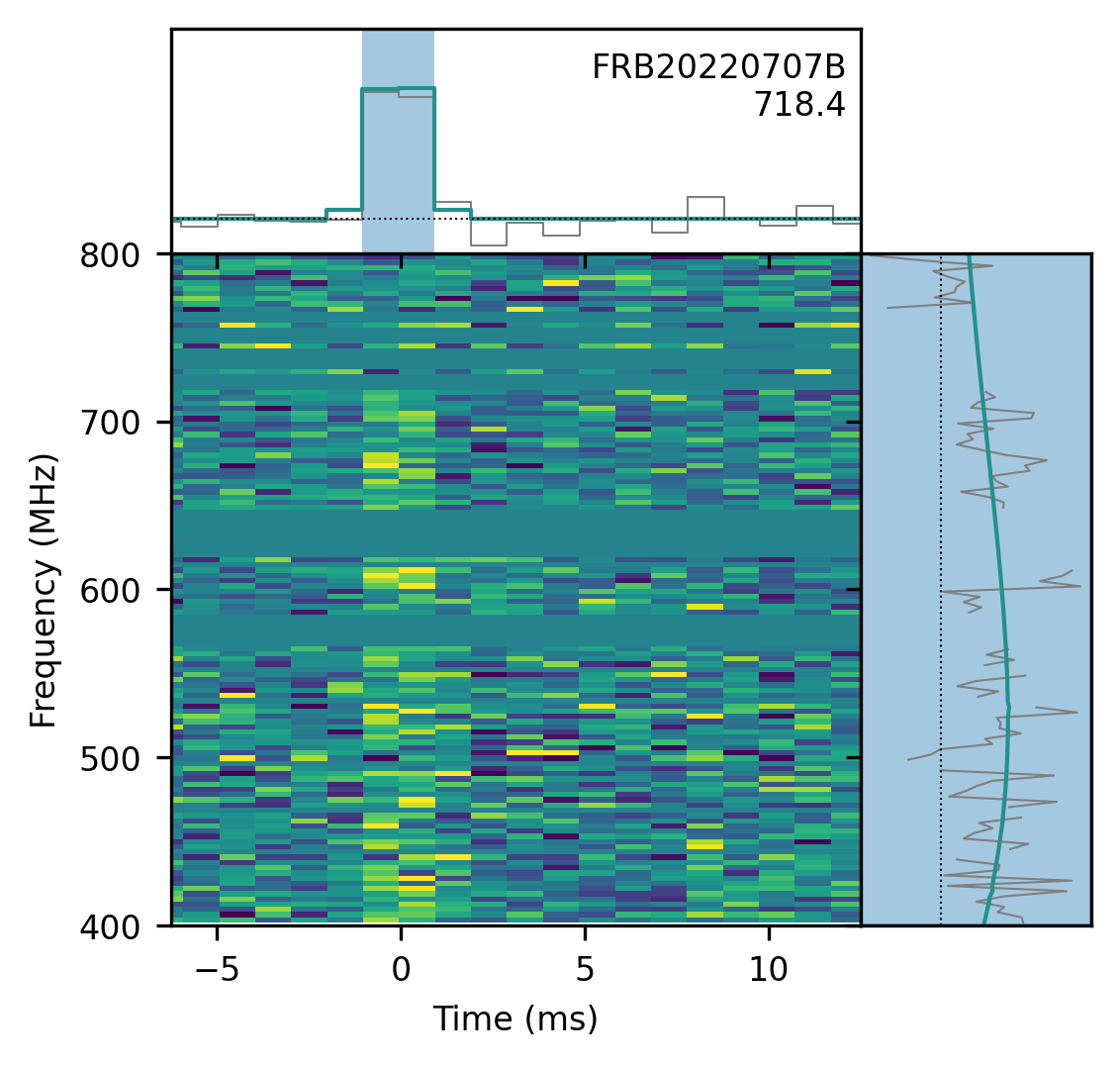

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
18.511± 0.204degrees
dec
72.723± 0.224degrees
gl
124.63degrees
gb
9.93degrees

Detection and dispersion

bonsai_snr
13.5
snr_fitb
17.2
bonsai_dm
717.8pc cm⁻³
dm_fitb
718.3914± 0.00293pc cm⁻³
dm_exc_ne2001
585.7pc cm⁻³
dm_exc_ymw16
521.5pc cm⁻³

Arrival time

mjd_400
59767.59576767653± 3.86 × 10⁻¹⁰MJD
mjd_inf
59767.59555225637± 9.58 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000317± 0.0000089s
scat_time
0.000000s

Flux and spectrum

flux
1.10± 0.81Jy
fluence
1.84± 1.16Jy ms
peak_freq
508.0MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
2.12± 1.35
sp_run
-4.44± 1.83

Exposure and fluence thresholds

exp_up
263.74± 143.19hour
exp_low
210.46± 96.26hour
low_ft_68
5.9Jy ms
up_ft_68
0.7Jy ms
low_ft_95
11.8Jy ms
up_ft_95
1.5Jy ms

Fit quality

chi_sq
1663444.985
dof
1663734
flag_frac
0.373
