FRB 20220707D

One-off burst

Event ID
234708745
Arrival, 400 MHz
2022-07-07 23:02:54.441 UTC
Right ascension
152.190°
Declination
13.848°

Loading

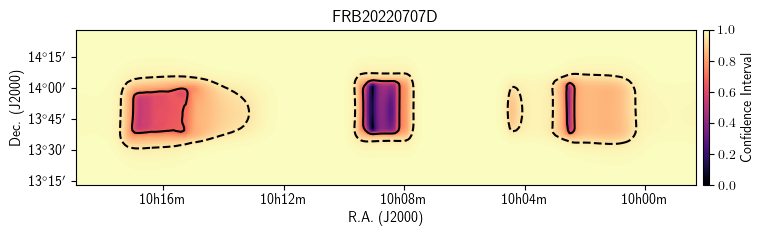

Localization

Loading

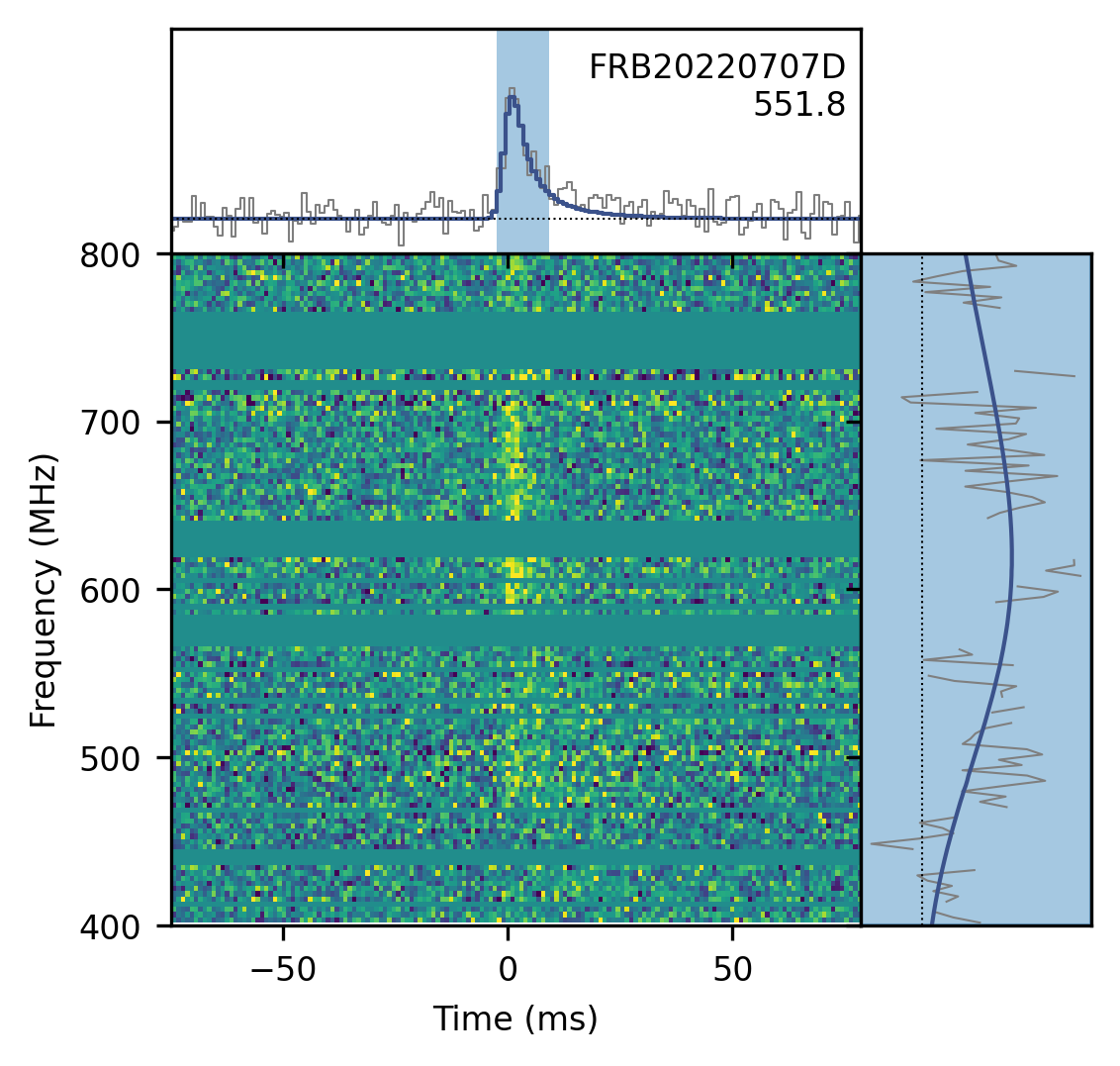

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
152.190± 0.148degrees
dec
13.848± 0.218degrees
gl
223.91degrees
gb
49.87degrees

Detection and dispersion

bonsai_snr
18.3
snr_fitb
25.8
bonsai_dm
551.2pc cm⁻³
dm_fitb
551.7874± 0.05386pc cm⁻³
dm_exc_ne2001
514.1pc cm⁻³
dm_exc_ymw16
523.8pc cm⁻³

Arrival time

mjd_400
59767.96035232385± 1.01 × 10⁻⁸MJD
mjd_inf
59767.96018686234± 1.91 × 10⁻⁸MJD

Burst shape

bc_width
0.01180s
width_fitb
0.001316± 0.0001863s
scat_time
0.024833± 0.0026319s

Flux and spectrum

flux
1.99± 0.93Jy
fluence
14.63± 6.40Jy ms
peak_freq
583.5MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
6.53± 1.50
sp_run
-8.66± 1.76

Exposure and fluence thresholds

exp_up
87.85± 35.97hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
9.6Jy ms
low_ft_95
—
up_ft_95
19.6Jy ms

Fit quality

chi_sq
1634076.025
dof
1634735
flag_frac
0.384
