FRB 20220709A

One-off burst

Event ID
235177930
Arrival, 400 MHz
2022-07-09 18:15:23.420 UTC
Right ascension
82.090°
Declination
43.858°

Loading

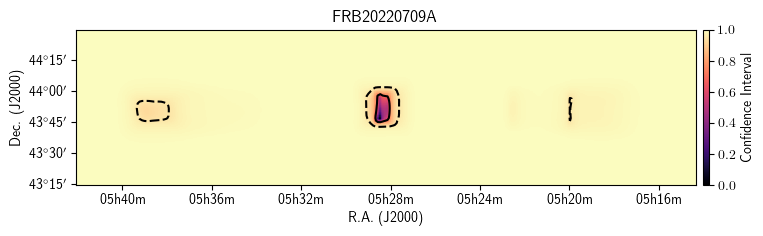

Localization

Loading

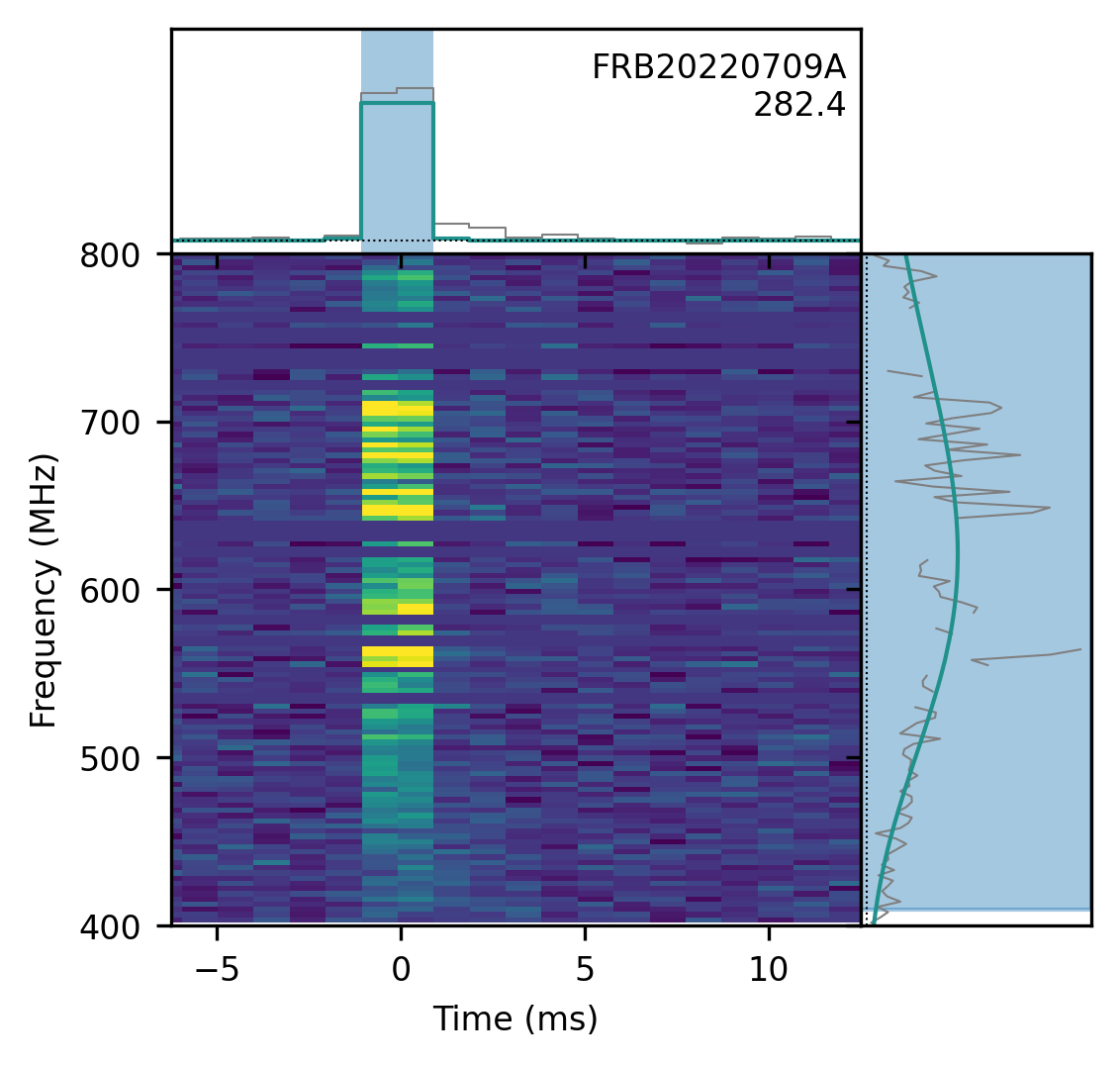

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
82.090± 0.058degrees
dec
43.858± 0.113degrees
gl
165.53degrees
gb
5.07degrees

Detection and dispersion

bonsai_snr
62.7
snr_fitb
113.4
bonsai_dm
281.8pc cm⁻³
dm_fitb
282.3783± 0.00088pc cm⁻³
dm_exc_ne2001
116.1pc cm⁻³
dm_exc_ymw16
35.7pc cm⁻³

Arrival time

mjd_400
59769.760687735296± 1.55 × 10⁻¹⁰MJD
mjd_inf
59769.76060306002± 3.06 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000289± 0.0000018s
scat_time
0.000000s

Flux and spectrum

flux
2.73± 0.62Jy
fluence
4.36± 1.02Jy ms
peak_freq
620.7MHz
low_freq
409.6MHz
high_freq
800.2MHz
sp_idx
11.70± 0.37
sp_run
-13.33± 0.43

Exposure and fluence thresholds

exp_up
149.90± 18.88hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
0.5Jy ms
low_ft_95
—
up_ft_95
0.9Jy ms

Fit quality

chi_sq
1901661.771
dof
1914510
flag_frac
0.279
