FRB 20220710B

One-off burst

Event ID
235294163
Arrival, 400 MHz
2022-07-10 16:44:39.060 UTC
Right ascension
59.317°
Declination
5.070°

Loading

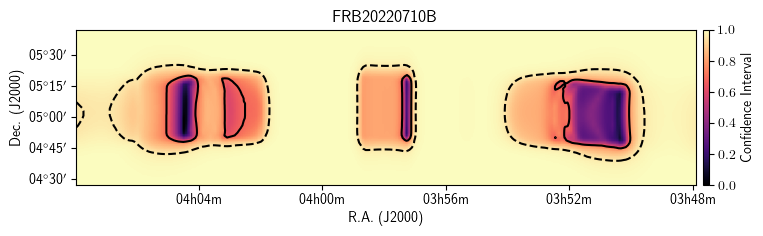

Localization

Loading

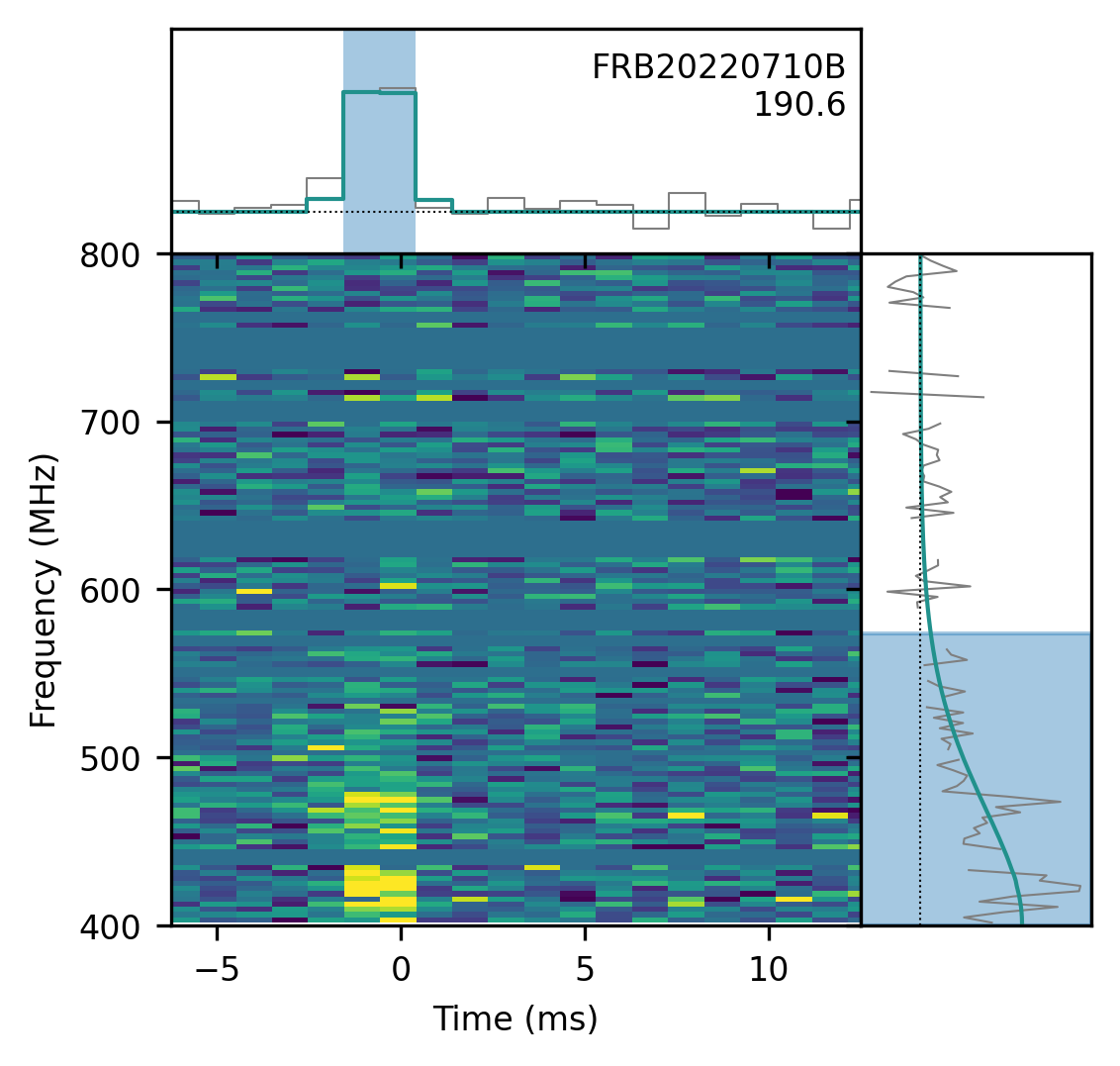

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
59.317± 0.039degrees
dec
5.070± 0.266degrees
gl
184.46degrees
gb
-34.78degrees

Detection and dispersion

bonsai_snr
14.5
snr_fitb
22.2
bonsai_dm
190.5pc cm⁻³
dm_fitb
190.6463± 0.00938pc cm⁻³
dm_exc_ne2001
141.9pc cm⁻³
dm_exc_ymw16
135.3pc cm⁻³

Arrival time

mjd_400
59770.69767430792± 5.41 × 10⁻¹⁰MJD
mjd_inf
59770.69761713984± 2.86 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000503± 0.0000245s
scat_time
0.000000s

Flux and spectrum

flux
1.49± 0.61Jy
fluence
3.27± 0.93Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
573.7MHz
sp_idx
-0.01± 2.27
sp_run
-17.73± 9.35

Exposure and fluence thresholds

exp_up
79.46± 43.41hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
0.8Jy ms
low_ft_95
—
up_ft_95
1.4Jy ms

Fit quality

chi_sq
1557138.122
dof
1557624
flag_frac
0.413
