CHIME/FRBPublic data

FRB 20220714D

One-off burst

Event ID
235941851
Arrival, 400 MHz
2022-07-14 17:38:30.915 UTC
Right ascension
76.980°
Declination
63.784°

Loading

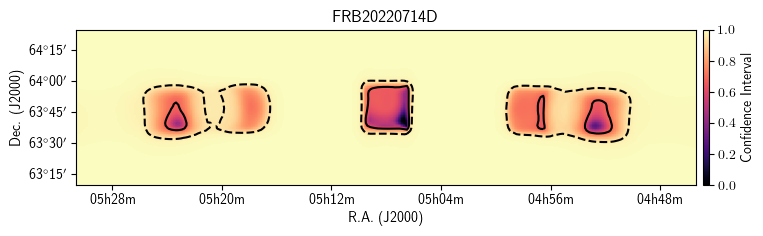

Localization

Loading

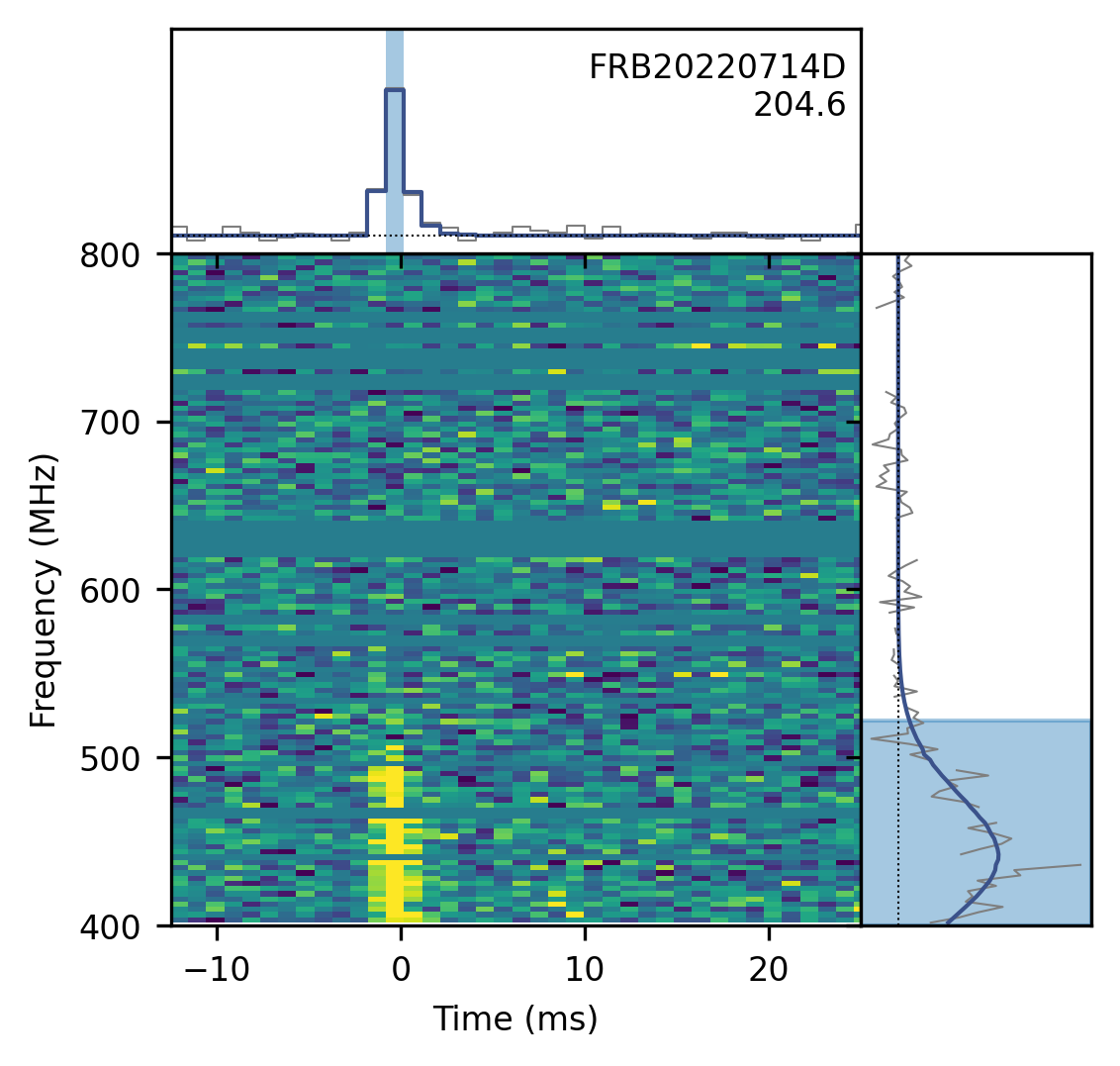

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
76.980± 0.175degrees
dec
63.784± 0.177degrees
gl
147.08degrees
gb
13.74degrees

Detection and dispersion

bonsai_snr
31.6
snr_fitb
43.8
bonsai_dm
204.2pc cm⁻³
dm_fitb
204.6472± 0.00387pc cm⁻³
dm_exc_ne2001
101.2pc cm⁻³
dm_exc_ymw16
68.8pc cm⁻³

Arrival time

mjd_400
59774.73508002954± 2.48 × 10⁻¹⁰MJD
mjd_inf
59774.73501866309± 1.19 × 10⁻⁹MJD

Burst shape

bc_width
0.00098s
width_fitb
0.000170± 0.0000098s
scat_time
0.000884± 0.0000392s

Flux and spectrum

flux
1.83± 0.79Jy
fluence
3.06± 1.15Jy ms
peak_freq
437.6MHz
low_freq
400.2MHz
high_freq
521.9MHz
sp_idx
13.24± 1.46
sp_run
-74.15± 6.33

Exposure and fluence thresholds

exp_up
194.92± 83.94hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.0Jy ms
low_ft_95
—
up_ft_95
1.7Jy ms

Fit quality

chi_sq
1800976.004
dof
1802891
flag_frac
0.321
