CHIME/FRBPublic data

FRB 20220716B

One-off burst

Event ID
236180659
Arrival, 400 MHz
2022-07-16 08:58:53.785 UTC
Right ascension
308.449°
Declination
53.512°

Loading

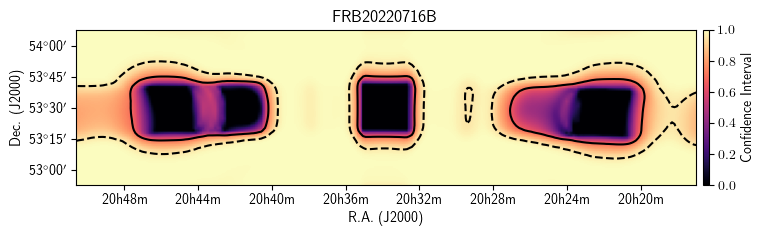

Localization

Loading

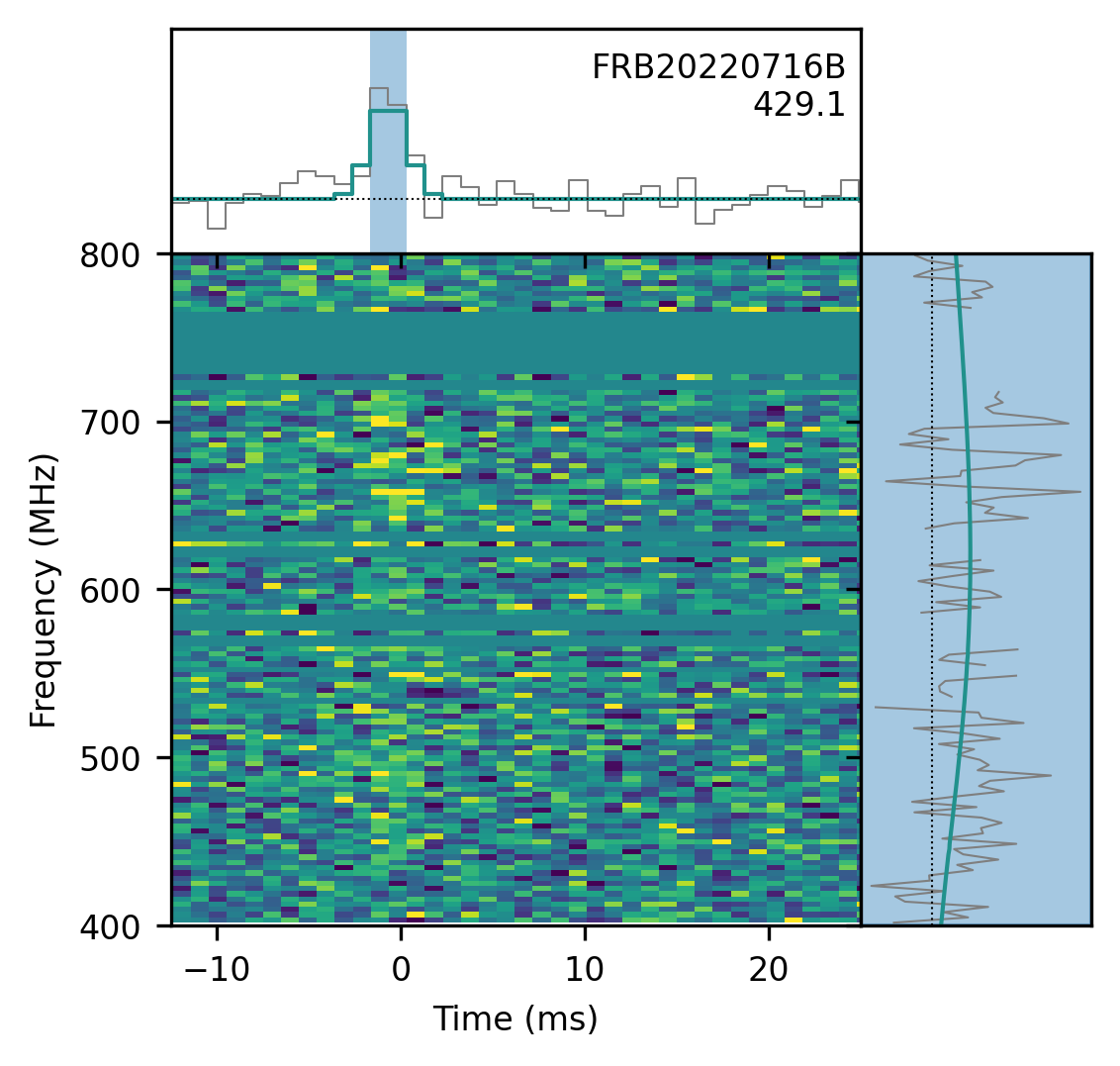

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
308.449± 0.233degrees
dec
53.512± 0.248degrees
gl
90.15degrees
gb
7.93degrees

Detection and dispersion

bonsai_snr
8.7
snr_fitb
9.5
bonsai_dm
429.0pc cm⁻³
dm_fitb
429.0941± 0.02862pc cm⁻³
dm_exc_ne2001
260.5pc cm⁻³
dm_exc_ymw16
195.6pc cm⁻³

Arrival time

mjd_400
59776.374233623596± 4.77 × 10⁻⁹MJD
mjd_inf
59776.374104953444± 9.82 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000909± 0.0001243s
scat_time
0.000000s

Flux and spectrum

flux
0.60± 0.34Jy
fluence
2.32± 1.06Jy ms
peak_freq
618.8MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
6.29± 2.67
sp_run
-7.21± 3.30

Exposure and fluence thresholds

exp_up
122.66± 75.74hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.0Jy ms
low_ft_95
—
up_ft_95
3.9Jy ms

Fit quality

chi_sq
1927224.548
dof
1927308
flag_frac
0.274
