CHIME/FRBPublic data

FRB 20220717F

One-off burst

Event ID
236316852
Arrival, 400 MHz
2022-07-17 02:19:59.857 UTC
Right ascension
210.048°
Declination
24.632°

Loading

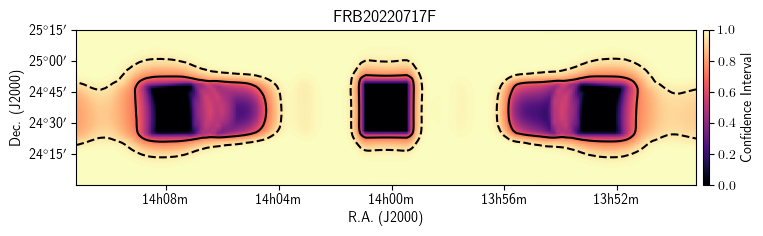

Localization

Loading

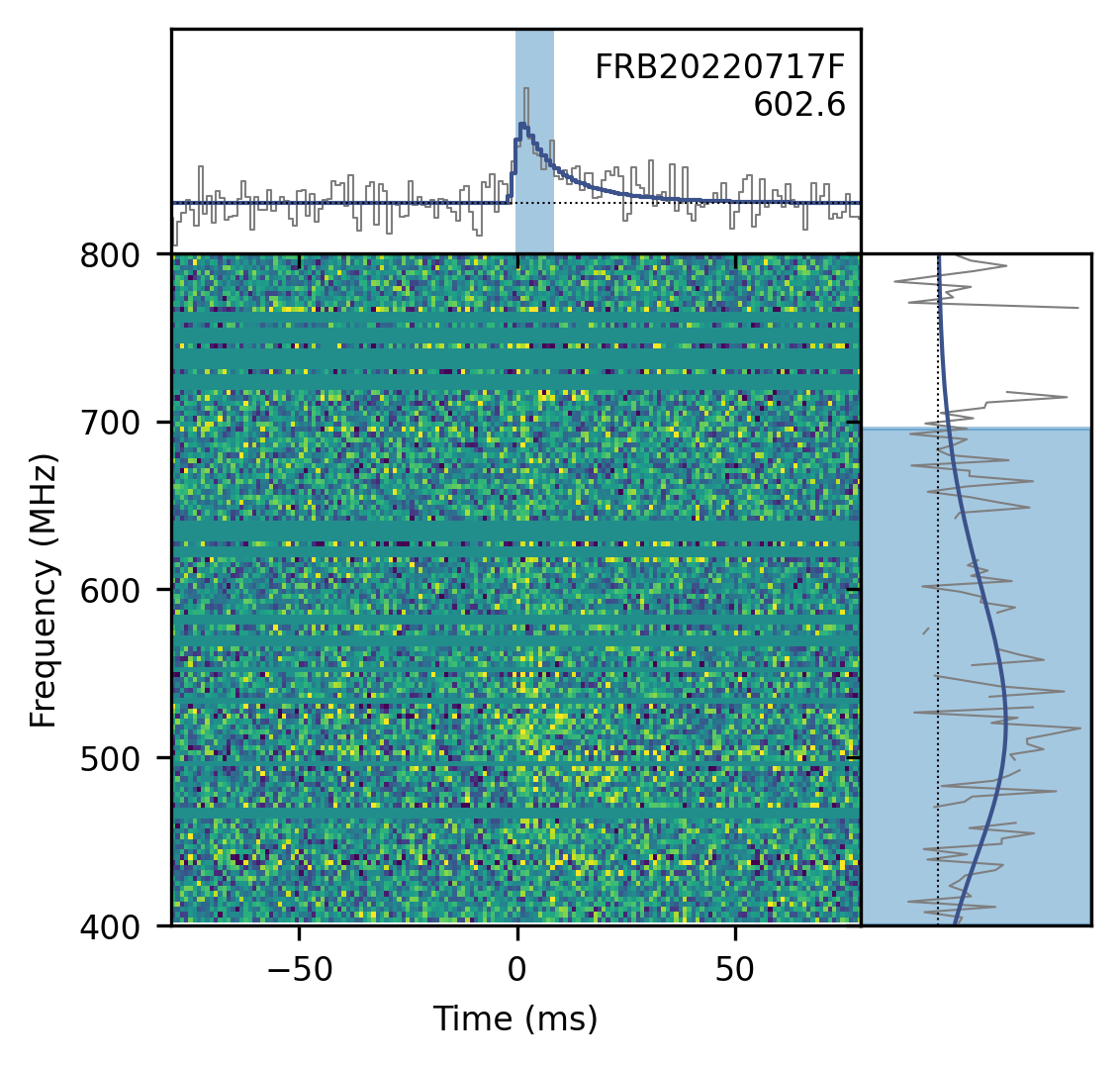

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
210.048± 0.221degrees
dec
24.632± 0.252degrees
gl
27.61degrees
gb
74.35degrees

Detection and dispersion

bonsai_snr
10.2
snr_fitb
15.0
bonsai_dm
602.5pc cm⁻³
dm_fitb
602.5947± 0.07476pc cm⁻³
dm_exc_ne2001
580.4pc cm⁻³
dm_exc_ymw16
581.8pc cm⁻³

Arrival time

mjd_400
59777.097220570526± 1.14 × 10⁻⁸MJD
mjd_inf
59777.09703987369± 2.51 × 10⁻⁸MJD

Burst shape

bc_width
0.00885s
width_fitb
0.000874± 0.0003728s
scat_time
0.027923± 0.0044917s

Flux and spectrum

flux
0.41± 0.18Jy
fluence
4.33± 1.24Jy ms
peak_freq
487.1MHz
low_freq
400.2MHz
high_freq
695.7MHz
sp_idx
7.11± 2.58
sp_run
-18.11± 5.06

Exposure and fluence thresholds

exp_up
76.25± 46.51hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
3.8Jy ms
low_ft_95
—
up_ft_95
6.7Jy ms

Fit quality

chi_sq
1760066.348
dof
1760285
flag_frac
0.337
