CHIME/FRBPublic data

FRB 20220720B

One-off burst

Event ID
236863173
Arrival, 400 MHz
2022-07-20 06:51:28.279 UTC
Right ascension
279.726°
Declination
57.065°

Loading

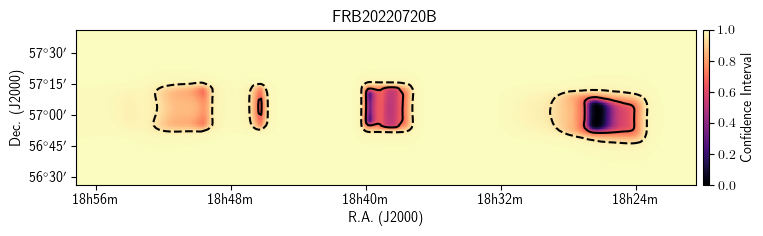

Localization

Loading

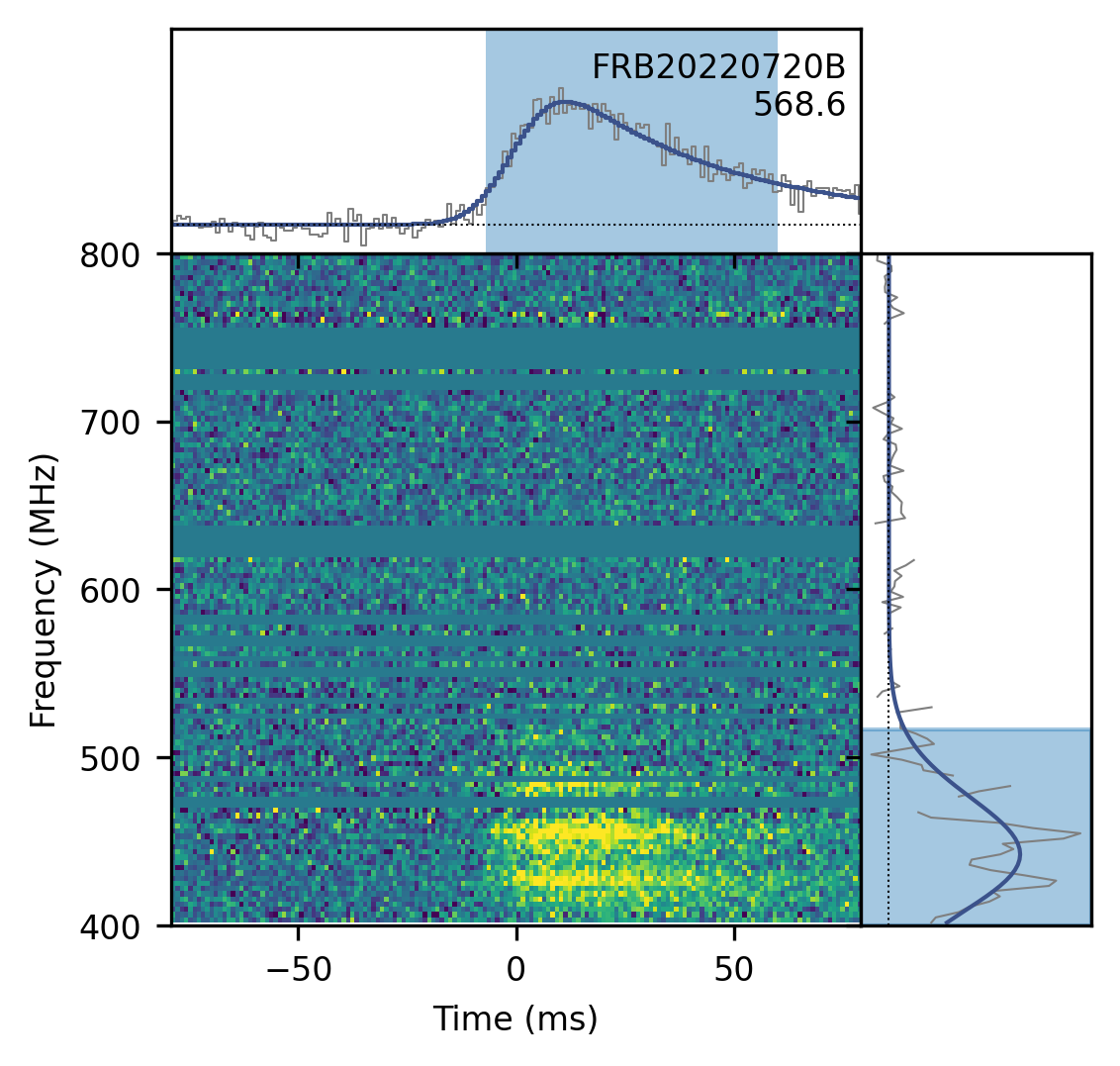

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
279.726± 0.151degrees
dec
57.065± 0.162degrees
gl
86.42degrees
gb
24.15degrees

Detection and dispersion

bonsai_snr
36.1
snr_fitb
80.8
bonsai_dm
566.1pc cm⁻³
dm_fitb
568.6288± 0.14607pc cm⁻³
dm_exc_ne2001
511.4pc cm⁻³
dm_exc_ymw16
516.1pc cm⁻³

Arrival time

mjd_400
59780.285743974026± 1.01 × 10⁻⁸MJD
mjd_inf
59780.28557346236± 4.49 × 10⁻⁸MJD

Burst shape

bc_width
0.06685s
width_fitb
0.007834± 0.0005388s
scat_time
0.061095± 0.0030066s

Flux and spectrum

flux
0.60± 0.28Jy
fluence
7.17± 2.44Jy ms
peak_freq
438.0MHz
low_freq
400.2MHz
high_freq
516.5MHz
sp_idx
15.31± 0.86
sp_run
-84.75± 3.70

Exposure and fluence thresholds

exp_up
159.73± 71.48hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.5Jy ms
low_ft_95
—
up_ft_95
2.6Jy ms

Fit quality

chi_sq
1714405.222
dof
1720919
flag_frac
0.352
