FRB 20220724A

One-off burst

Event ID
237272845
Arrival, 400 MHz
2022-07-24 01:04:33.316 UTC
Right ascension
198.015°
Declination
58.788°

Loading

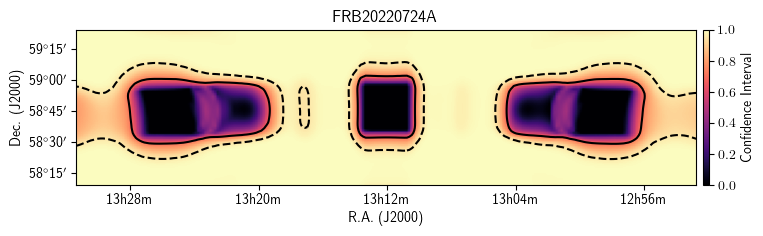

Localization

Loading

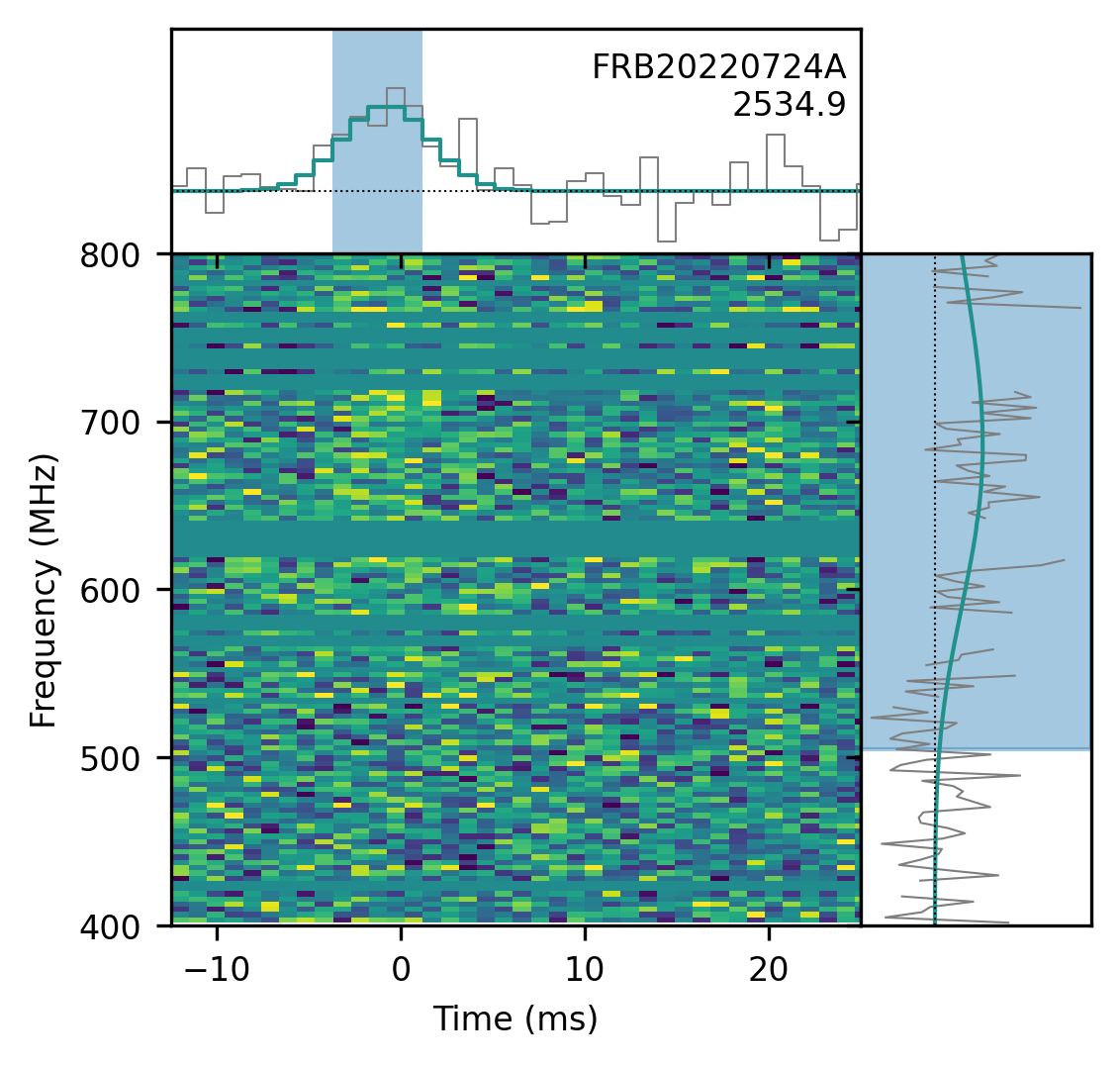

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
198.015± 0.233degrees
dec
58.788± 0.250degrees
gl
117.87degrees
gb
58.14degrees

Detection and dispersion

bonsai_snr
8.9
snr_fitb
9.7
bonsai_dm
2533.4pc cm⁻³
dm_fitb
2534.9291± 0.28820pc cm⁻³
dm_exc_ne2001
2503.2pc cm⁻³
dm_exc_ymw16
2511.2pc cm⁻³

Arrival time

mjd_400
59784.044830050734± 5.84 × 10⁻⁸MJD
mjd_inf
59784.04406991521± 1.04 × 10⁻⁷MJD

Burst shape

bc_width
0.00492s
width_fitb
0.002314± 0.0003434s
scat_time
0.000000s

Flux and spectrum

flux
0.29± 0.15Jy
fluence
1.93± 0.71Jy ms
peak_freq
685.3MHz
low_freq
504.9MHz
high_freq
800.2MHz
sp_idx
26.53± 8.77
sp_run
-24.66± 8.66

Exposure and fluence thresholds

exp_up
132.10± 81.46hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.5Jy ms
low_ft_95
—
up_ft_95
4.5Jy ms

Fit quality

chi_sq
1818032.161
dof
1818120
flag_frac
0.315
