CHIME/FRBPublic data

FRB 20220914B

One-off burst

Event ID
245382670
Arrival, 400 MHz
2022-09-14 14:43:25.028 UTC
Right ascension
93.487°
Declination
80.719°

Loading

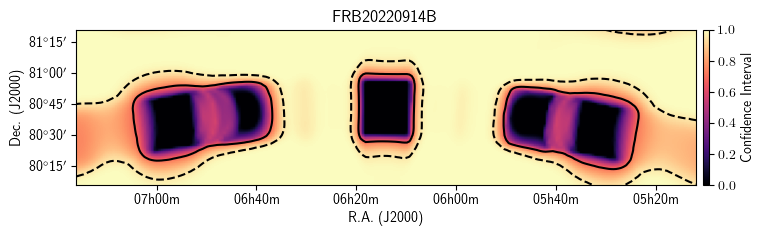

Localization

Loading

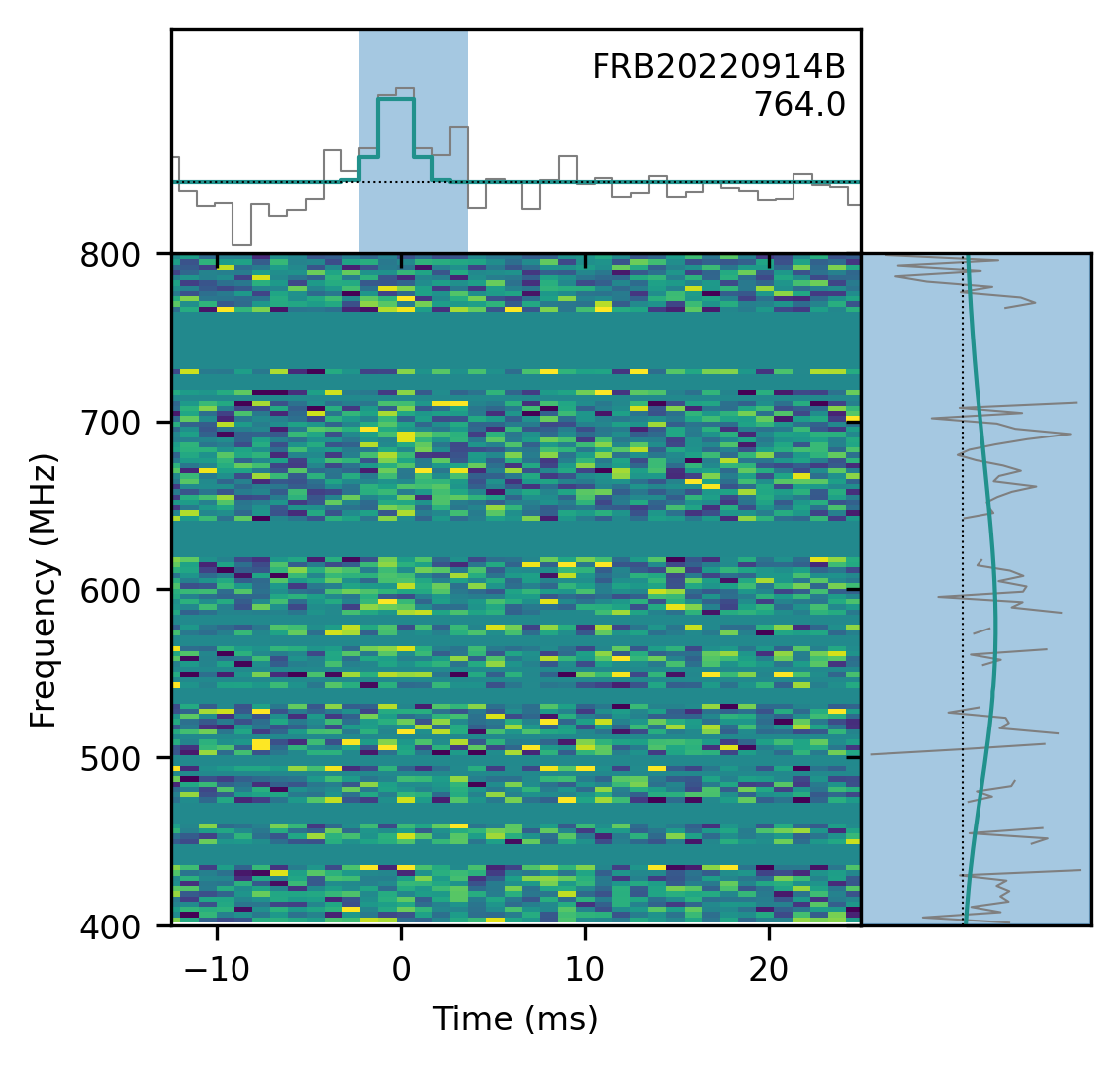

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
93.487± 0.227degrees
dec
80.719± 0.279degrees
gl
133.07degrees
gb
25.25degrees

Detection and dispersion

bonsai_snr
9.0
snr_fitb
8.6
bonsai_dm
763.9pc cm⁻³
dm_fitb
764.0200± 0.03709pc cm⁻³
dm_exc_ne2001
704.2pc cm⁻³
dm_exc_ymw16
704.3pc cm⁻³

Arrival time

mjd_400
59836.6134841208± 6.01 × 10⁻⁹MJD
mjd_inf
59836.613255018245± 1.26 × 10⁻⁸MJD

Burst shape

bc_width
0.00590s
width_fitb
0.000757± 0.0001009s
scat_time
0.000000s

Flux and spectrum

flux
0.76± 0.38Jy
fluence
2.99± 0.50Jy ms
peak_freq
577.6MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
12.44± 5.13
sp_run
-16.96± 6.57

Exposure and fluence thresholds

exp_up
460.47± 244.67hour
exp_low
454.71± 260.65hour
low_ft_68
8.0Jy ms
up_ft_68
2.6Jy ms
low_ft_95
13.9Jy ms
up_ft_95
4.6Jy ms

Fit quality

chi_sq
1487896.532
dof
1487964
flag_frac
0.439
