FRB 20230620A

One-off burst

Event ID
298059563
Arrival, 400 MHz
2023-06-20 04:21:03.954 UTC
Right ascension
213.899°
Declination
6.845°

Loading

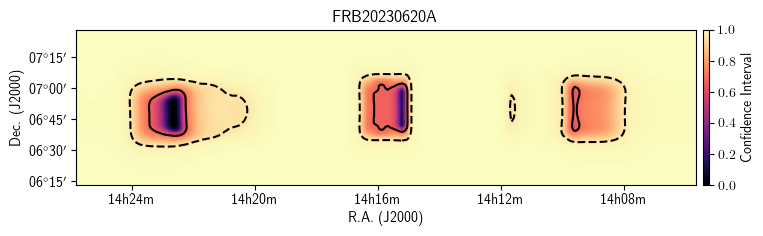

Localization

Loading

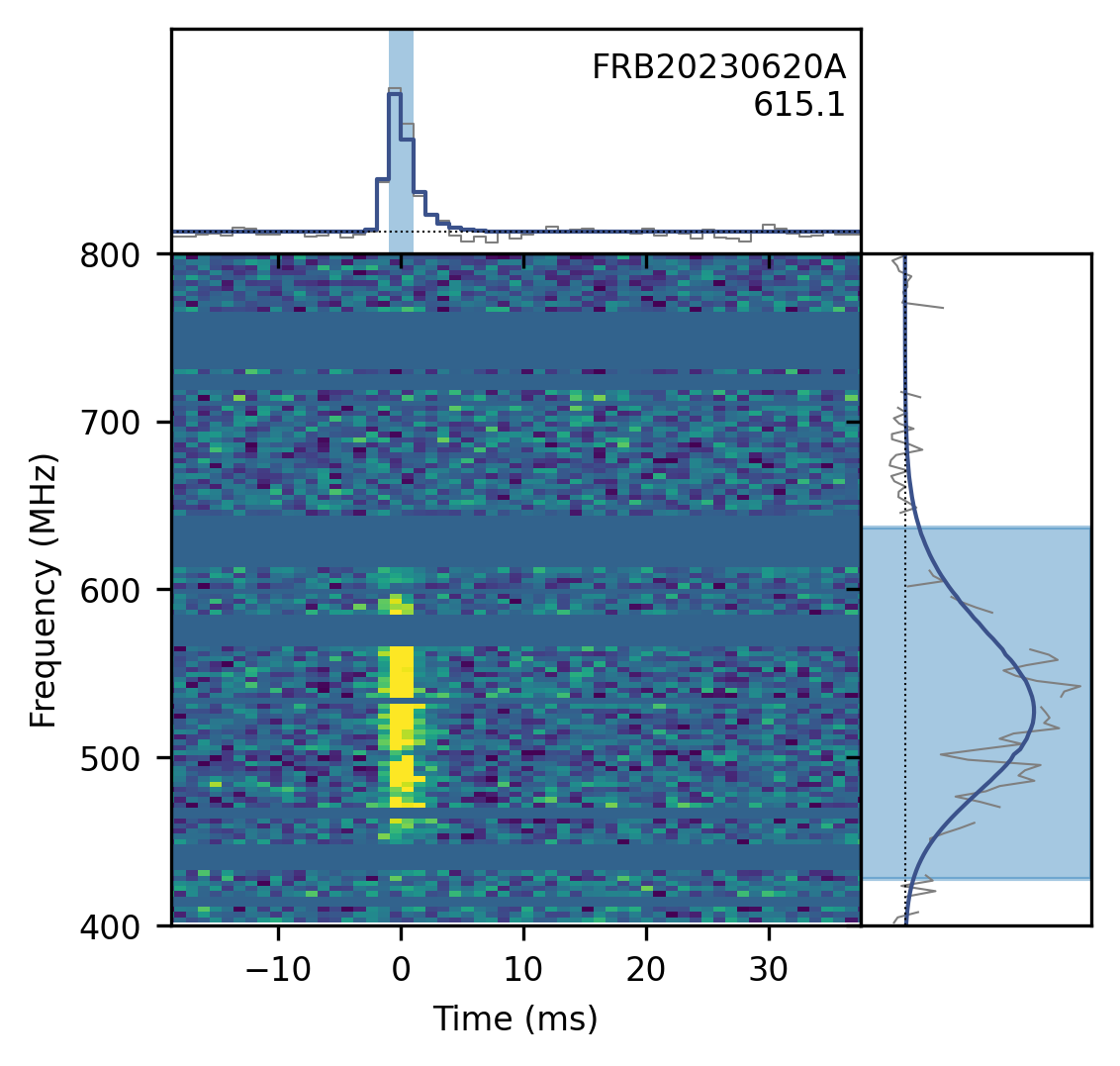

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
213.899± 0.136degrees
dec
6.845± 0.196degrees
gl
351.33degrees
gb
61.53degrees

Detection and dispersion

bonsai_snr
33.5
snr_fitb
57.0
bonsai_dm
614.2pc cm⁻³
dm_fitb
615.1238± 0.00880pc cm⁻³
dm_exc_ne2001
590.0pc cm⁻³
dm_exc_ymw16
591.9pc cm⁻³

Arrival time

mjd_400
60115.18129575883± 1.16 × 10⁻⁹MJD
mjd_inf
60115.18111130498± 2.88 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000413± 0.0000205s
scat_time
0.003256± 0.0001348s

Flux and spectrum

flux
2.31± 1.01Jy
fluence
5.41± 2.03Jy ms
peak_freq
522.1MHz
low_freq
428.0MHz
high_freq
636.8MHz
sp_idx
31.03± 1.85
sp_run
-58.36± 3.17

Exposure and fluence thresholds

exp_up
91.20± 28.19hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.3Jy ms
low_ft_95
—
up_ft_95
2.2Jy ms

Fit quality

chi_sq
1556160.908
dof
1559405
flag_frac
0.412
