CHIME/FRBPublic data
Repeater
FRB20220912A
Event ID
299204187
Arrival, 400 MHz
2023-06-25 12:52:53.486 UTC
Right ascension
345.476°
Declination
48.793°

Loading

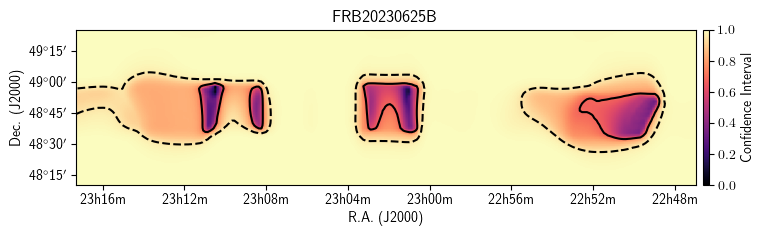

Localization

Loading

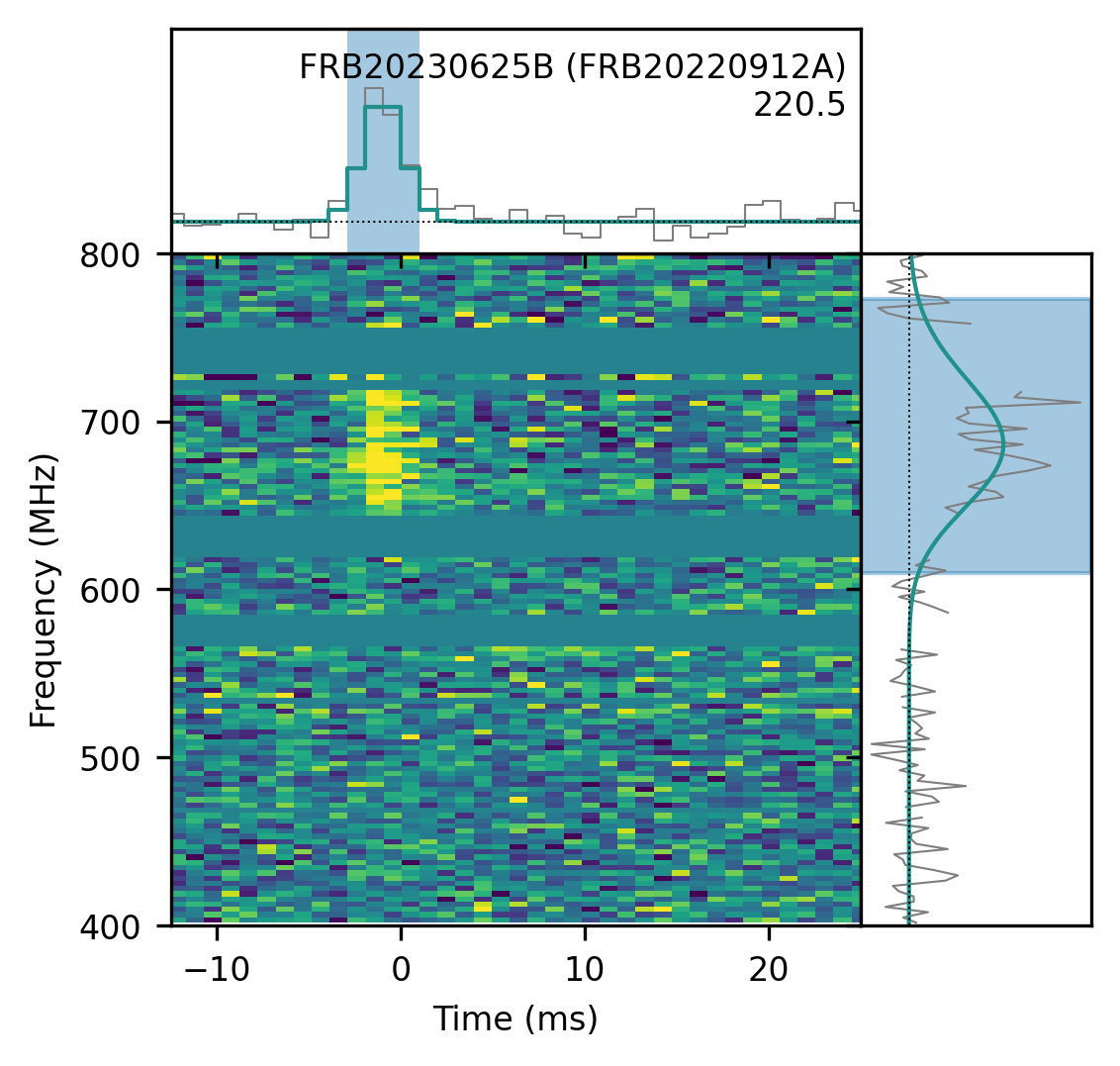

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
345.476± 0.220degrees
dec
48.793± 0.197degrees
gl
105.00degrees
gb
-10.23degrees

Detection and dispersion

bonsai_snr
12.3
snr_fitb
20.8
bonsai_dm
219.6pc cm⁻³
dm_fitb
220.4520± 0.11978pc cm⁻³
dm_exc_ne2001
89.2pc cm⁻³
dm_exc_ymw16
92.3pc cm⁻³

Arrival time

mjd_400
60120.53673016545± 2.37 × 10⁻⁸MJD
mjd_inf
60120.536664059684± 4.30 × 10⁻⁸MJD

Burst shape

bc_width
0.00393s
width_fitb
0.001055± 0.0000730s
scat_time
0.000000s

Flux and spectrum

flux
0.74± 0.29Jy
fluence
1.33± 0.74Jy ms
peak_freq
686.3MHz
low_freq
609.6MHz
high_freq
772.7MHz
sp_idx
176.57± 26.61
sp_run
-163.68± 24.78

Exposure and fluence thresholds

exp_up
120.77± 63.01hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
2.6Jy ms
low_ft_95
0.0Jy ms
up_ft_95
7.1Jy ms

Fit quality

chi_sq
1802464.717
dof
1802892
flag_frac
0.321
