CHIME/FRBPublic data
Repeater
FRB20220912A
Event ID
300076739
Arrival, 400 MHz
2023-06-29 12:44:31.498 UTC
Right ascension
347.352°
Declination
48.791°

Loading

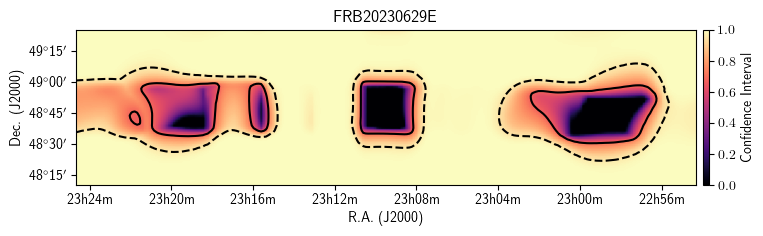

Localization

Loading

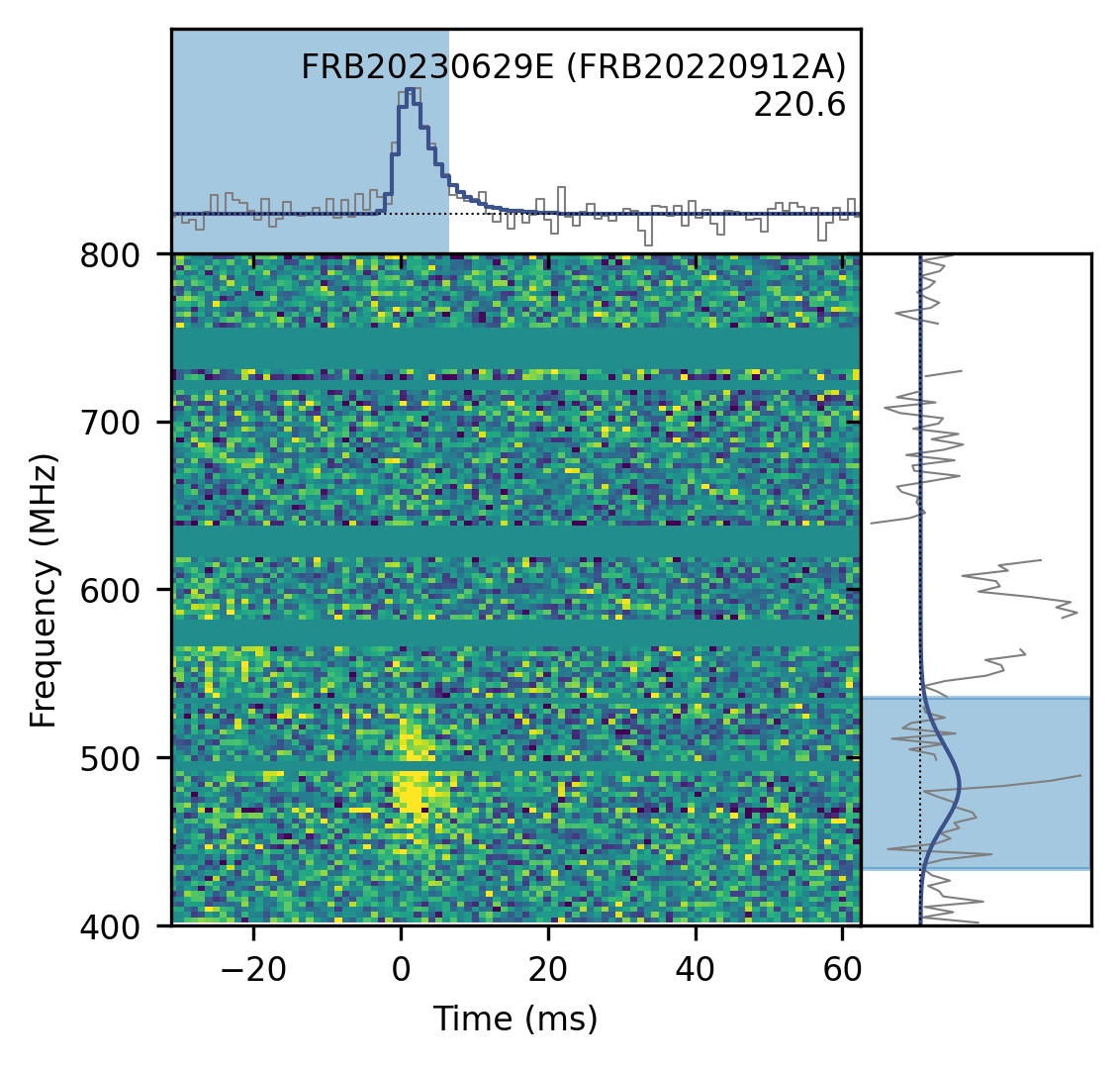

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
347.352± 0.219degrees
dec
48.791± 0.213degrees
gl
106.15degrees
gb
-10.73degrees

Detection and dispersion

bonsai_snr
12.9
snr_fitb
26.5
bonsai_dm
220.4pc cm⁻³
dm_fitb
220.5691± 0.09601pc cm⁻³
dm_exc_ne2001
94.6pc cm⁻³
dm_exc_ymw16
97.5pc cm⁻³

Arrival time

mjd_400
60124.53092011765± 9.81 × 10⁻⁹MJD
mjd_inf
60124.530853976765± 3.04 × 10⁻⁸MJD

Burst shape

bc_width
0.08454s
width_fitb
0.001101± 0.0002031s
scat_time
0.007519± 0.0009721s

Flux and spectrum

flux
0.52± 0.24Jy
fluence
1.25± 1.09Jy ms
peak_freq
481.8MHz
low_freq
433.4MHz
high_freq
535.6MHz
sp_idx
76.31± 9.48
sp_run
-205.56± 24.76

Exposure and fluence thresholds

exp_up
114.74± 66.59hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
2.6Jy ms
low_ft_95
0.0Jy ms
up_ft_95
7.1Jy ms

Fit quality

chi_sq
1798795.612
dof
1799489
flag_frac
0.322
