CHIME/FRBPublic data
Repeater
FRB20220912A
Event ID
301016487
Arrival, 400 MHz
2023-07-03 12:26:45.705 UTC
Right ascension
347.465°
Declination
48.797°

Loading

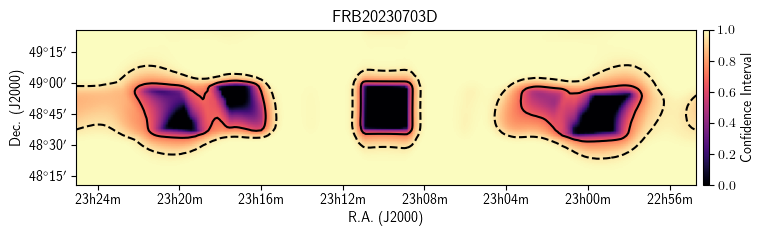

Localization

Loading

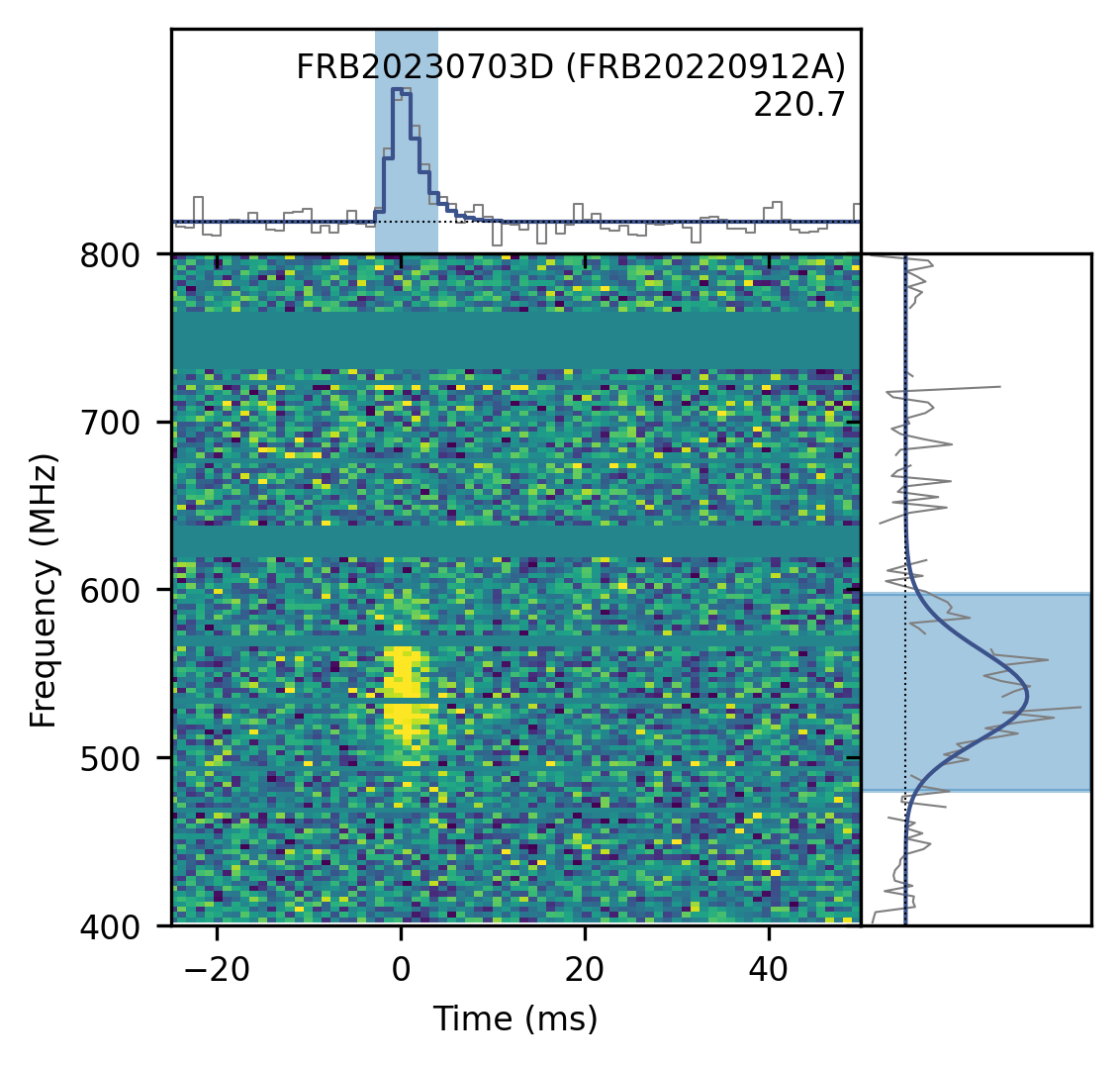

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
347.465± 0.211degrees
dec
48.797± 0.214degrees
gl
106.22degrees
gb
-10.75degrees

Detection and dispersion

bonsai_snr
11.6
snr_fitb
27.1
bonsai_dm
220.4pc cm⁻³
dm_fitb
220.7126± 0.06359pc cm⁻³
dm_exc_ne2001
95.0pc cm⁻³
dm_exc_ymw16
97.8pc cm⁻³

Arrival time

mjd_400
60128.51858454307± 8.76 × 10⁻⁹MJD
mjd_inf
60128.51851835917± 2.10 × 10⁻⁸MJD

Burst shape

bc_width
0.00688s
width_fitb
0.000760± 0.0000964s
scat_time
0.006033± 0.0007213s

Flux and spectrum

flux
0.58± 0.22Jy
fluence
2.22± 0.66Jy ms
peak_freq
535.4MHz
low_freq
480.1MHz
high_freq
597.2MHz
sp_idx
112.39± 11.36
sp_run
-193.01± 19.19

Exposure and fluence thresholds

exp_up
116.51± 65.14hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
2.6Jy ms
low_ft_95
0.0Jy ms
up_ft_95
7.1Jy ms

Fit quality

chi_sq
1851733.420
dof
1852463
flag_frac
0.302
