CHIME/FRBPublic data
Repeater
FRB20220912A
Event ID
301218610
Arrival, 400 MHz
2023-07-04 12:22:17.113 UTC
Right ascension
347.335°
Declination
48.793°

Loading

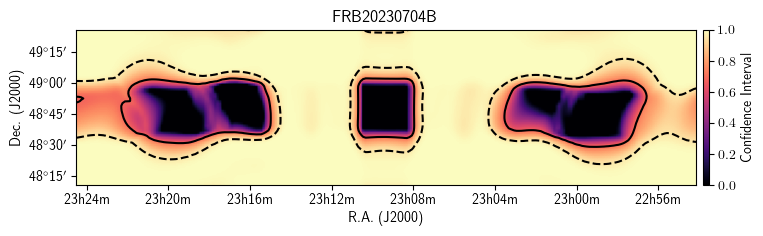

Localization

Loading

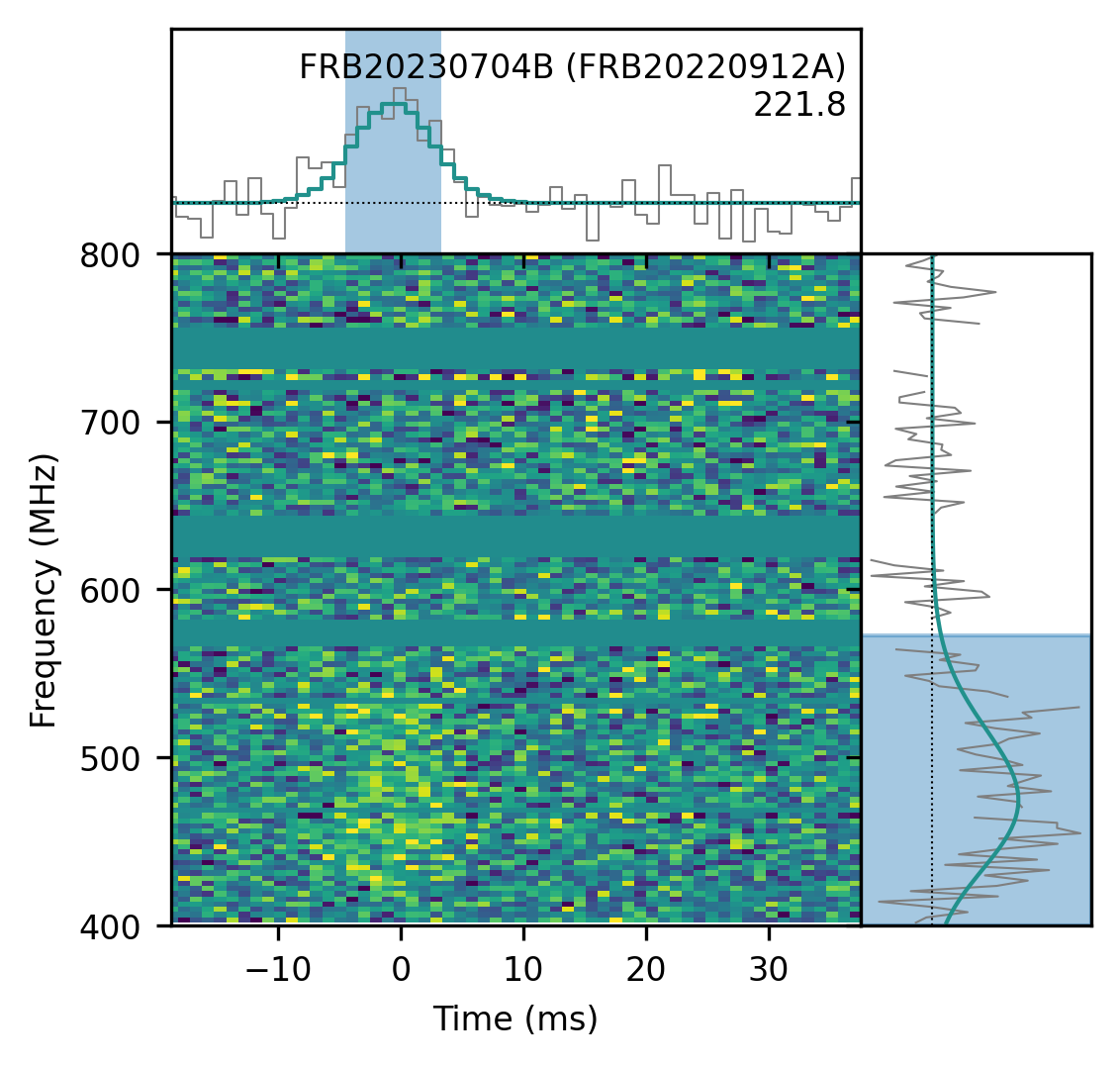

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
347.335± 0.228degrees
dec
48.793± 0.241degrees
gl
106.14degrees
gb
-10.72degrees

Detection and dispersion

bonsai_snr
9.2
snr_fitb
13.3
bonsai_dm
220.8pc cm⁻³
dm_fitb
221.7847± 0.14533pc cm⁻³
dm_exc_ne2001
95.8pc cm⁻³
dm_exc_ymw16
98.6pc cm⁻³

Arrival time

mjd_400
60129.51547584653± 1.30 × 10⁻⁸MJD
mjd_inf
60129.51540934116± 4.55 × 10⁻⁸MJD

Burst shape

bc_width
0.00786s
width_fitb
0.003188± 0.0003004s
scat_time
0.000000s

Flux and spectrum

flux
0.26± 0.16Jy
fluence
1.74± 0.55Jy ms
peak_freq
474.6MHz
low_freq
400.2MHz
high_freq
572.7MHz
sp_idx
22.26± 4.55
sp_run
-65.24± 13.46

Exposure and fluence thresholds

exp_up
114.51± 65.56hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
2.6Jy ms
low_ft_95
0.0Jy ms
up_ft_95
7.1Jy ms

Fit quality

chi_sq
1813736.924
dof
1813908
flag_frac
0.317
