CHIME/FRBPublic data
Repeater
FRB20220912A
Event ID
301473880
Arrival, 400 MHz
2023-07-05 12:14:28.110 UTC
Right ascension
347.338°
Declination
48.797°

Loading

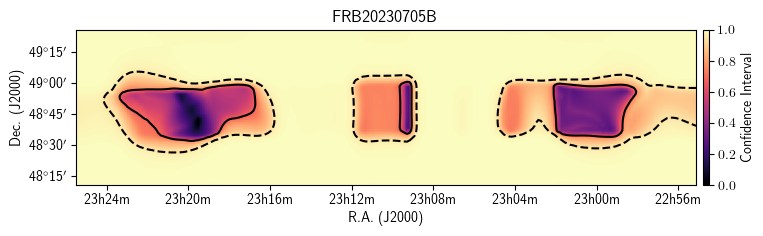

Localization

Loading

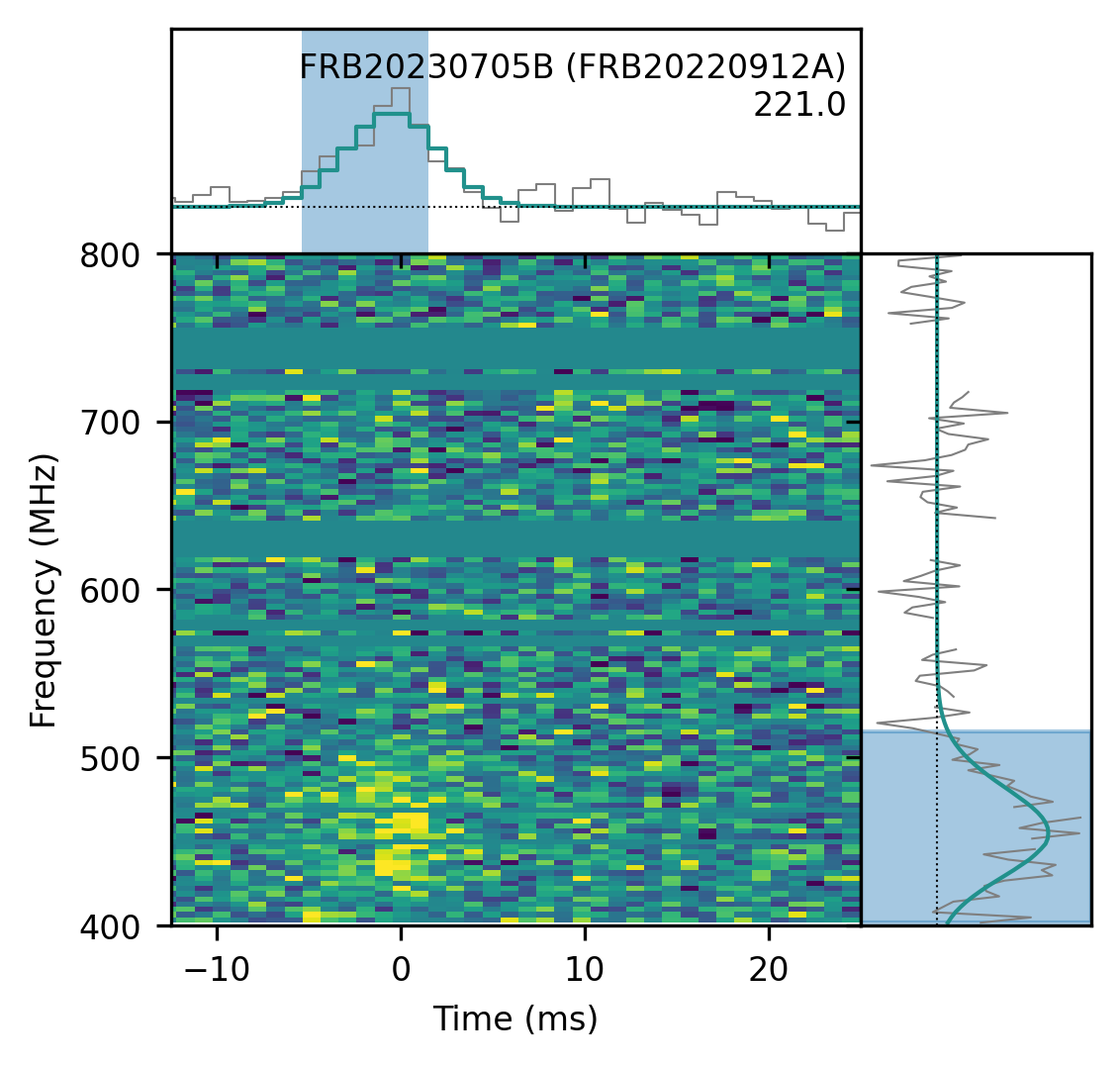

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
347.338± 0.049degrees
dec
48.797± 0.210degrees
gl
106.14degrees
gb
-10.72degrees

Detection and dispersion

bonsai_snr
10.8
snr_fitb
17.7
bonsai_dm
220.4pc cm⁻³
dm_fitb
221.0351± 0.11607pc cm⁻³
dm_exc_ne2001
95.0pc cm⁻³
dm_exc_ymw16
97.8pc cm⁻³

Arrival time

mjd_400
60130.51004756433± 8.32 × 10⁻⁹MJD
mjd_inf
60130.509981283736± 3.58 × 10⁻⁸MJD

Burst shape

bc_width
0.00688s
width_fitb
0.002441± 0.0002160s
scat_time
0.000000s

Flux and spectrum

flux
0.30± 0.17Jy
fluence
1.41± 0.55Jy ms
peak_freq
455.2MHz
low_freq
402.2MHz
high_freq
515.3MHz
sp_idx
38.60± 6.04
sp_run
-149.74± 22.11

Exposure and fluence thresholds

exp_up
117.82± 63.94hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
2.6Jy ms
low_ft_95
0.0Jy ms
up_ft_95
7.1Jy ms

Fit quality

chi_sq
1860744.059
dof
1861050
flag_frac
0.299
